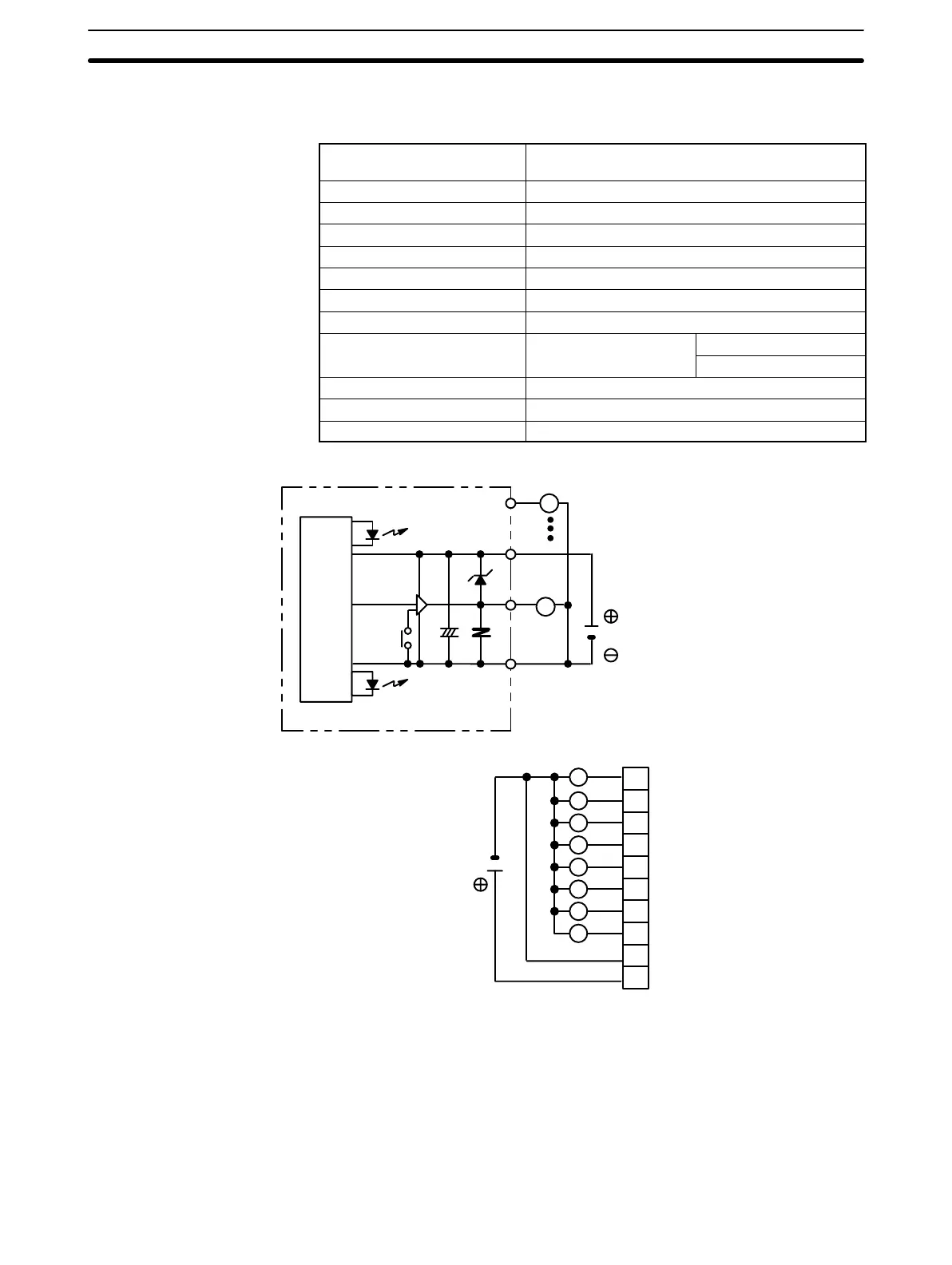

Appendix BSpecifications
142
Transistor Output Unit C200H-OD214
(Load Short-circuit Protection Provided)
Max. Switching Capacity 24 VDC
+10%
/
–15%
0.8 A (2.4 A/Unit) surge current
2 A (source type) PNP output
Min. Switching Capacity None
Leakage Current 1 mA max.
Residual Voltage 1.5 V max.
ON Response Time 1 ms max.
OFF Response Time 1 ms max.
No. of Circuits 1 (8 points/common)
Internal Current Consumption 140 mA 5 VDC max.
Fuse Rating Short-circuit protection Overcurrent protection
Thermal protection
Power for External Supply 150 mA 24 VDC
+10%
/
–15%
min.
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Internal
Circuit
COM
OUT
L
+ V
24 VDC
Reset
button
Source
Driver
+
Alarm Output
indicator
Output indicator
OUT
L
Terminal Connections
L
L
L
L
L
L
L
L
24 VDC
(0.8 A max., 2.4 A/Unit)
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
COM (0 V)
24 VDC
Note Be sure to supply power to A9; otherwise current will leak through the load while the output is OFF.
