Appendix BSpecifications
149

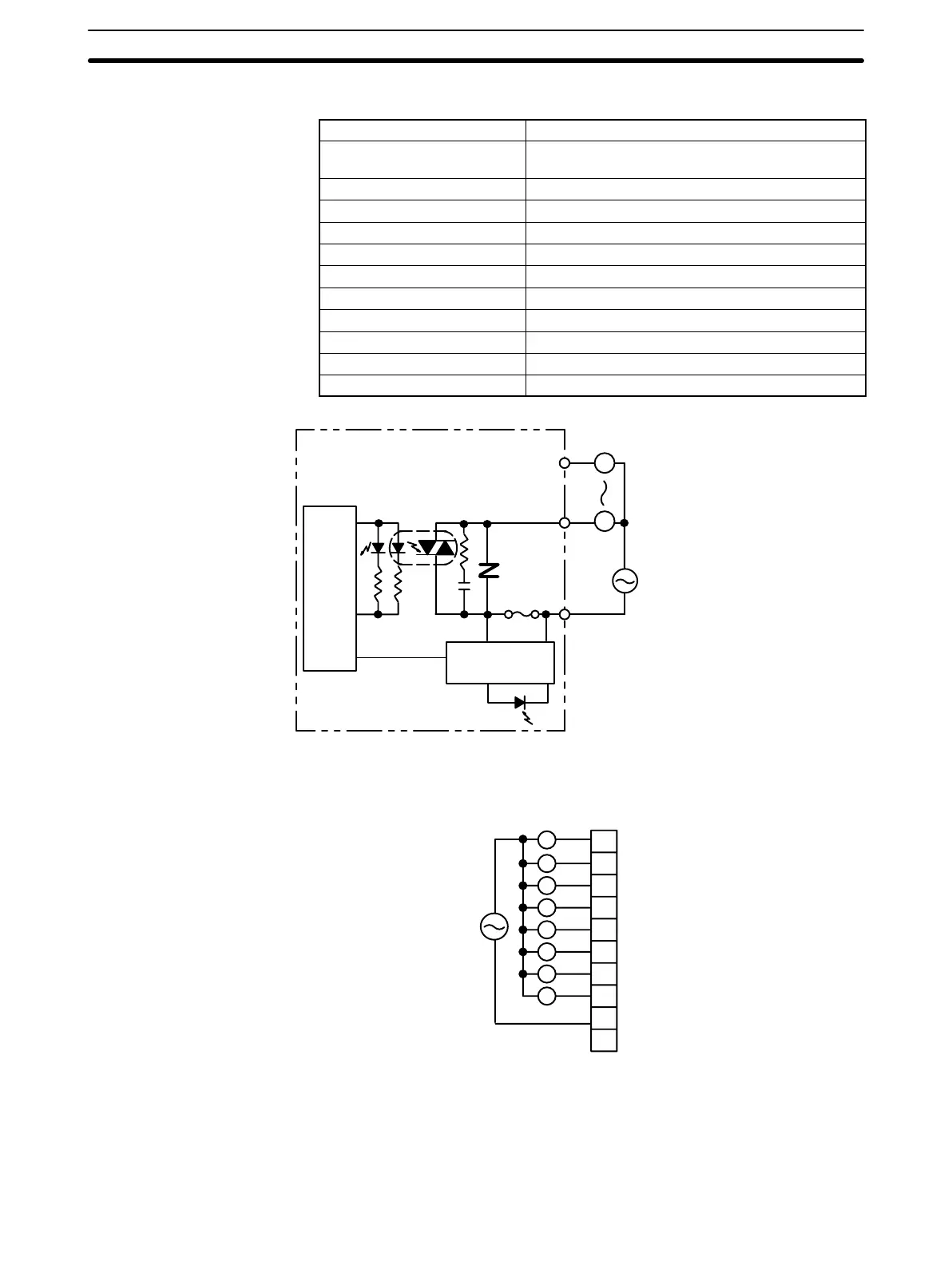

Triac Output Unit C200H-OA221
Max. Switching Capacity 1 A 250 VAC, 50/60 Hz (4 A/Unit)
Min. Switching Capacity 10 mA (resistive load)/40 mA (inductive load) 10
VAC
Leakage Current 3 mA (100 VAC) max./6 mA (200 VAC) max.
Residual Voltage 1.2 V max.
ON Response Time 1 ms max.
OFF Response Time 1/2 of load frequency or less.
No. of Circuits 1 (8 points/common)
Internal Current Consumption 140 mA 5 VDC max.
Fuse Rating 5 A 250 V (5.2-dia.x20)
Power for External Supply N/A
Weight 250 g max.
Dimensions A-shape
Circuit Configuration
Internal
Circuit
L
OUT
COM
OUT
Output indicator
L
250 VAC max.
F indicator
Fuse: 5 A 250 V (5.2-dia.x20) MF51SH (JIS)
Fuse blowout
detection circuit
Fuse
Note When the fuse blows, the F indicator lights and bit 08 turns ON. Bits 08 through 15 cannot be used as IR bits.
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
L
L
L
L
L
L
L
L
COM
250 VAC max
(1 A max. 4 A/Unit)
NC
To Next Page
