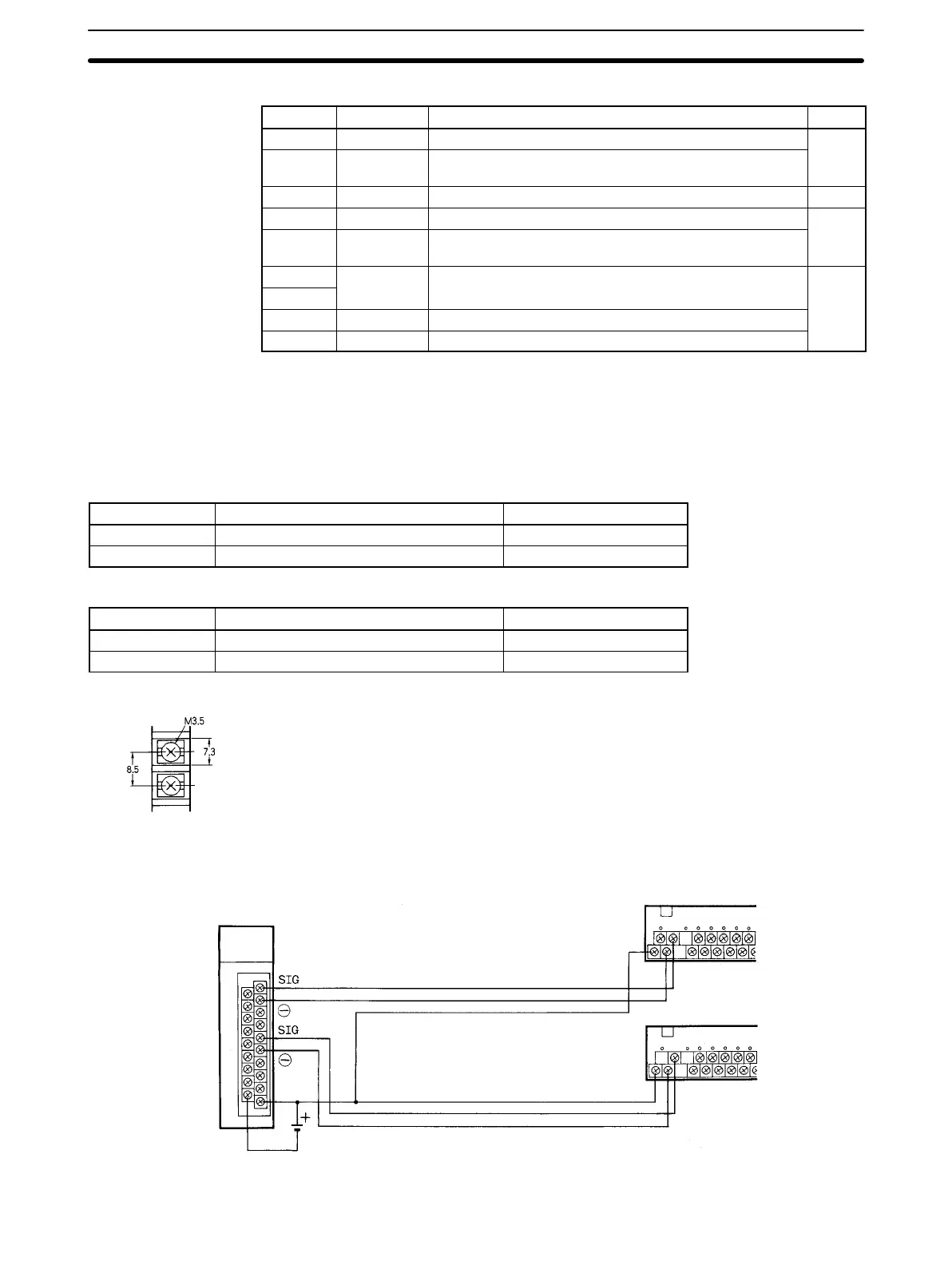

Appendix BSpecifications
201
C200H-B7A02
Terminal Name Function Word
B0 SIG OUT1 Connect to SIG terminal on Output B7A Link Terminal.
m
B1 – OUT1 Connect to – power supply terminal on Output B7A Link
Terminal.
B2, B3 NC Not used. NA
B4 SIG OUT2 Connect to SIG terminal on Output B7A Link Terminal.
m + 1
B5 – OUT2 Connect to – power supply terminal on Output B7A Link
Terminal.
B6 to B8
NC Not used. NA
A0 to A7
B9 +V Connect to + terminal on external power supply.
A8 –V Connect to – terminal on external power supply.
Recommended Cables and Transmission Distance
The following cables are recommended to connect the B7A Interface Unit to B7A Link Terminals. The wiring meth-
od and transmission distance depend on the transmission delay and on whether or not a common power supply is
being used for the B7A Link Terminal and the Interface Unit.
Standard Transmission Delays (19.2 ms): Cap-tire Cable
Power supply Cable Transmission distance
Common VCTF, 0.75 mm
2
x 3 conductors 100 m max.
Separate VCTF ,0.75 mm
2
x 2 conductors 500 m max.
High-speed Transmission Delays (3 ms): Shielded Cable
Power supply Cable Transmission distance
Common Shielded cable, 0.75 mm
2
x 3 conductors 50 m max.
Separate Shielded cable, 0.75 mm
2
x 2 conductors 100 m max.
Terminal Construction
Use hook-type crimp connectors with a line thickness of 0.25 to 1.65 mm
2
. The
construction of the terminals is shown in the illustration.
Wiring Method
Standard Transmission Delays (19.2 ms)
Transmission distance: 100 m max.
Transmission cable: VCTF 0.75 mm
2
or higher
B7A Link Terminal
B7A Link Terminal
12 to 24 VDC
B7A Interface Unit
Common Power Supply
