Omron C200HE-CPU11 User Manual

Appendix BSpecifications
203

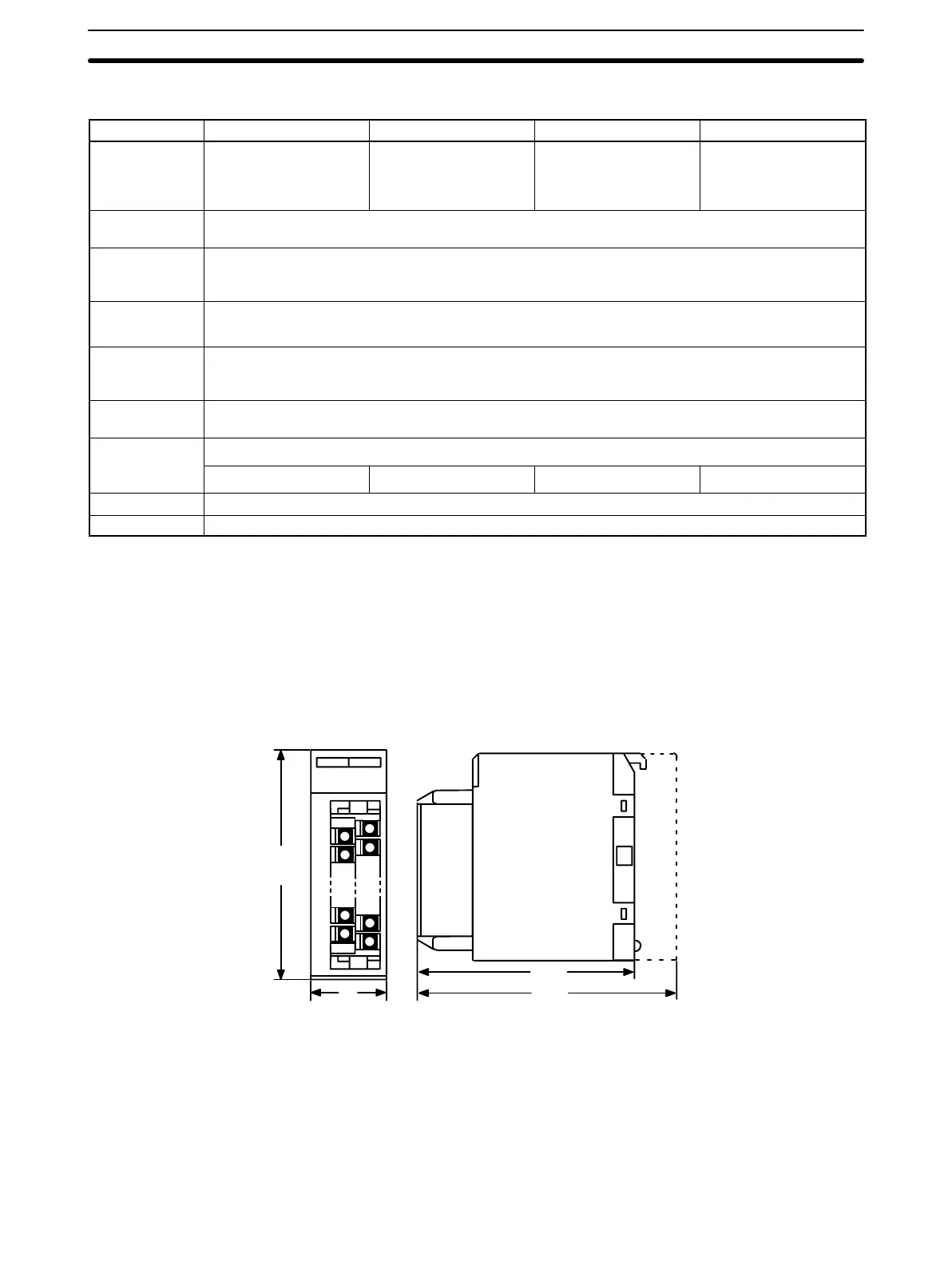

Specifications
Item C200H-B7A12 C200H-B7A02 C200H-B7A21 C200H-B7A22
I/O points 32 input points or
30 input points and 2
error inputs
32 output points 16 output points and
16 input points or
15 input points + 1
error input
32 output points and
32 input points or
30 input points + 2
error inputs
Transmission
method
One-way distributed multiplex transmission
Transmission
distance (see
note 1)
Standard: 500 m max.
High-speed: 100 m max.
Transmission
delay
Standard: Typ. 19.2 ms, 31 ms max.
High-speed: Typ. 3 ms, 5 ms max.
Minimum input
time (see note
2, 3)
Standard: 16 ms
High-speed: 2.4 ms
Internal current
consumption
5 VDC, 100 mA max.
External power
supply (see
12 to 24 VDC ±10%
supp
l
y
(
see
note 4)
0.05 A min. 0.06 A min. 0.05 A min. 0.08 A min.
Weight 300 g max.
Dimensions 35 x 130 x 128 mm (W x H x D)
Note 1. The transmission distance also depends on whether a common or separate power supplies are used.
2. The minimum input time refers to the minimum time required for reading the input signals from the CPU
Unit.
3. The ON/OFF width of the signal transmitted from the CPU Unit to the Output Relay of the B7A Interface
Unit should be set to a value larger than the minimum input time.
4. The capacity of the external power supply does not include the capacity required by the B7A Link Termi-
nal.
Dimensions
145
128
Back-
plane
x
x
x
x
x
x
x
x
35
130

Omron C200HE-CPU11 Specifications
