Appendix DDimensions and Mounting Methods
219

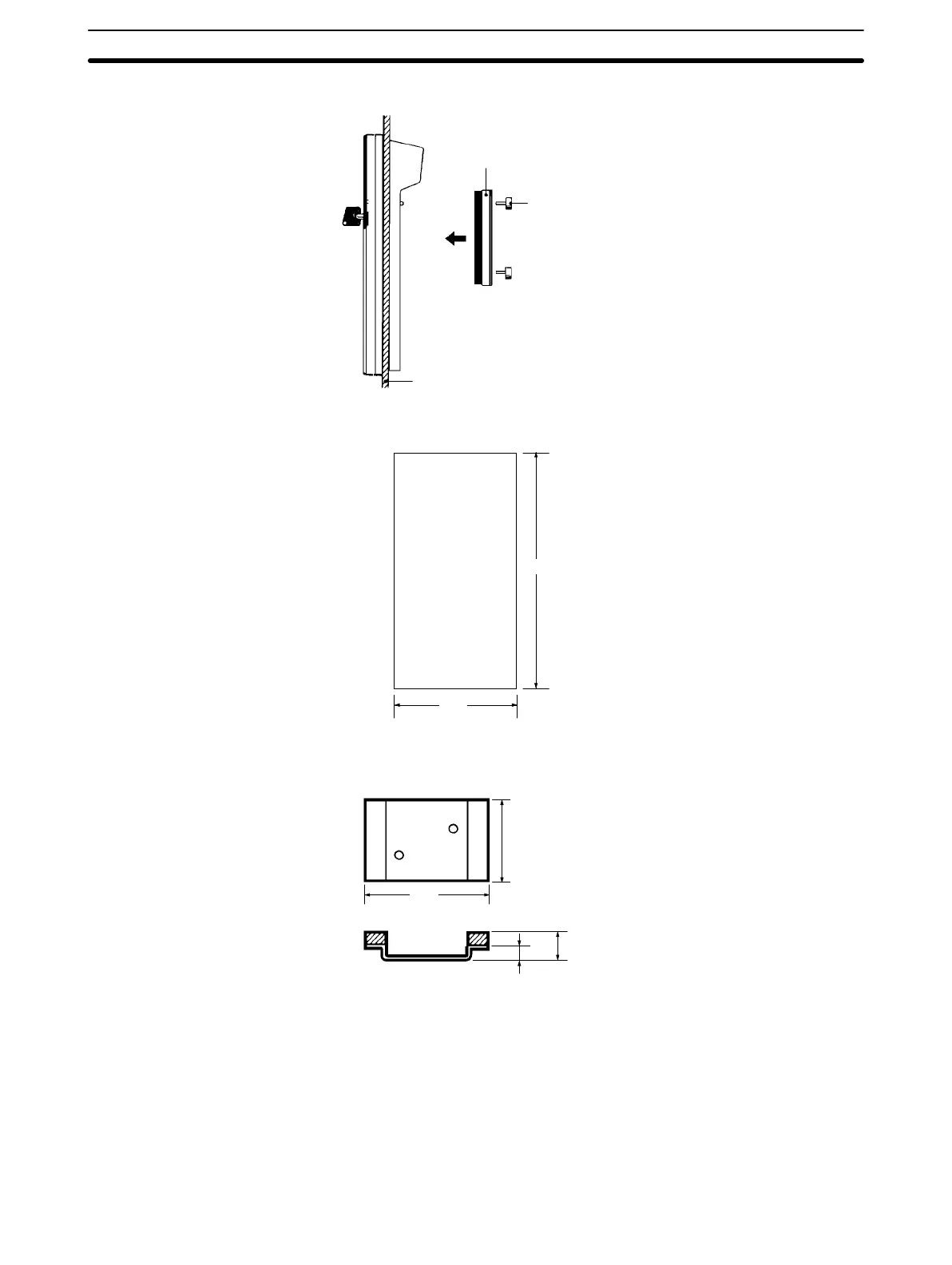

Panel Mounting of C200H-PRO27 Programming Console
Bracket
Two screws
Panel thickness (t = 1.0 to 3.2)
The following is the standard panel cut dimensions for the Programming Console (conforming to DIN 43700).
92
+0.8
0
186
+1.1
0
Use the C200H-ATT01 Mounting Bracket (sold separately) to mount the C200H-PRO27 Programming Console to
panels.
75.5
116
9.1
14.1
