Unit Specifications Shape Model
DC Input Unit 12 VDC; 64 pts D C200H-ID111
24 VDC; 32 pts
C C200H-ID217
C200H-ID218
24 VDC; 64 pts D C200H-ID216
C200H-ID219
Transistor Output Unit 4.5 VDC,16 mA to
26.4 VDC,100 mA; 32 pts
C C200H-OD218
4.5 VDC,16 mA to
26.4 VDC,100 mA; 64 pts
D C200H-OD219
24 VDC, 0.5 A (5A/Unit); 32 pts C C200H-OD21B

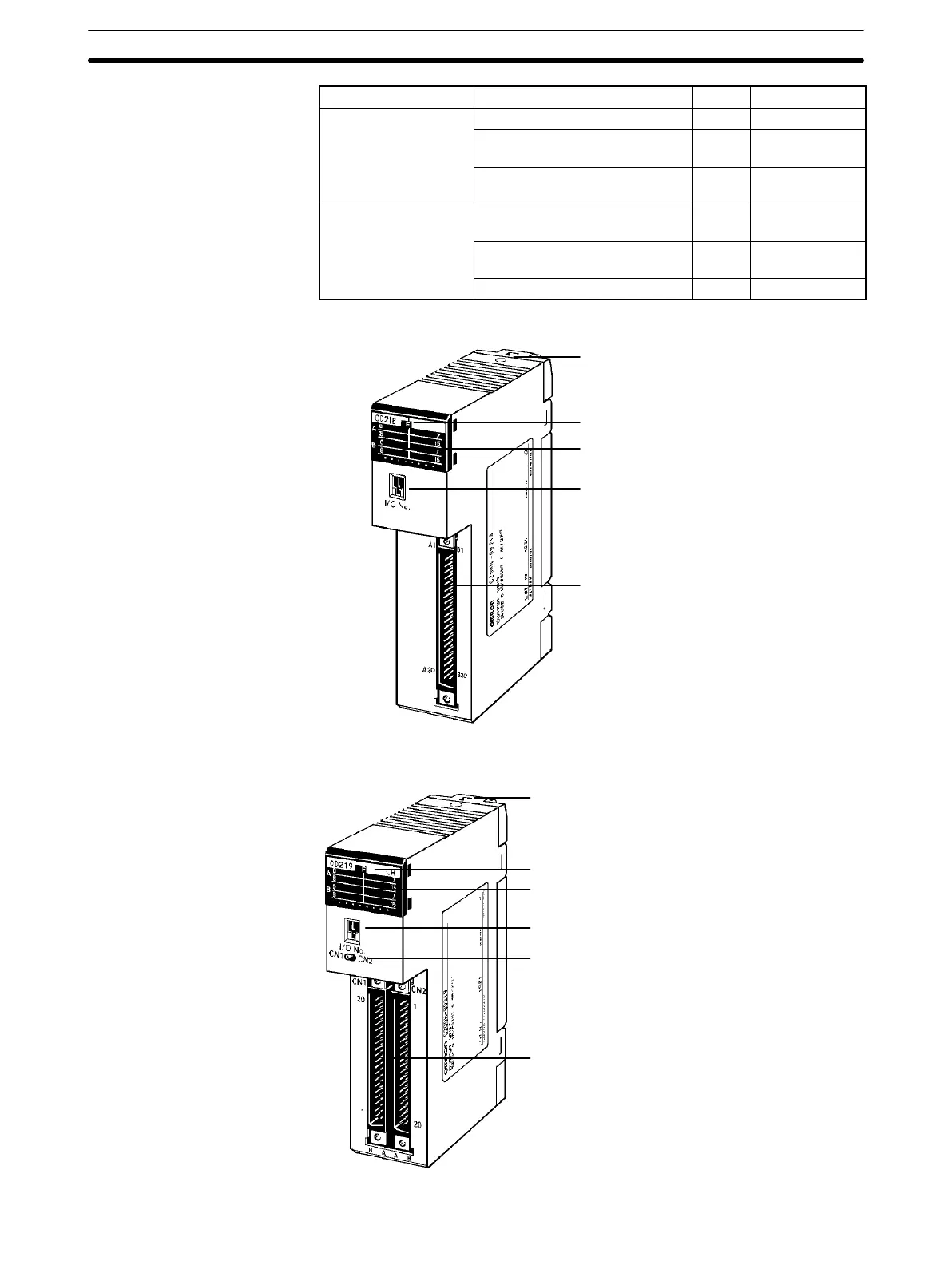

C-shape Units (32-point Units)
1. I/O Unit lock notch
2. Nameplate
3. I/O indicators
5. 40-pin connector
4. I/O number setting switch
D-shape Units (64-point Units)
1. I/O Unit lock notch
2. Nameplate
3. I/O indicators LED
5. 40-pin connectors
4. I/O number setting switch
6. Indicator switch
