CPU Bus Unit Allocations in the CPU Unit Appendix F

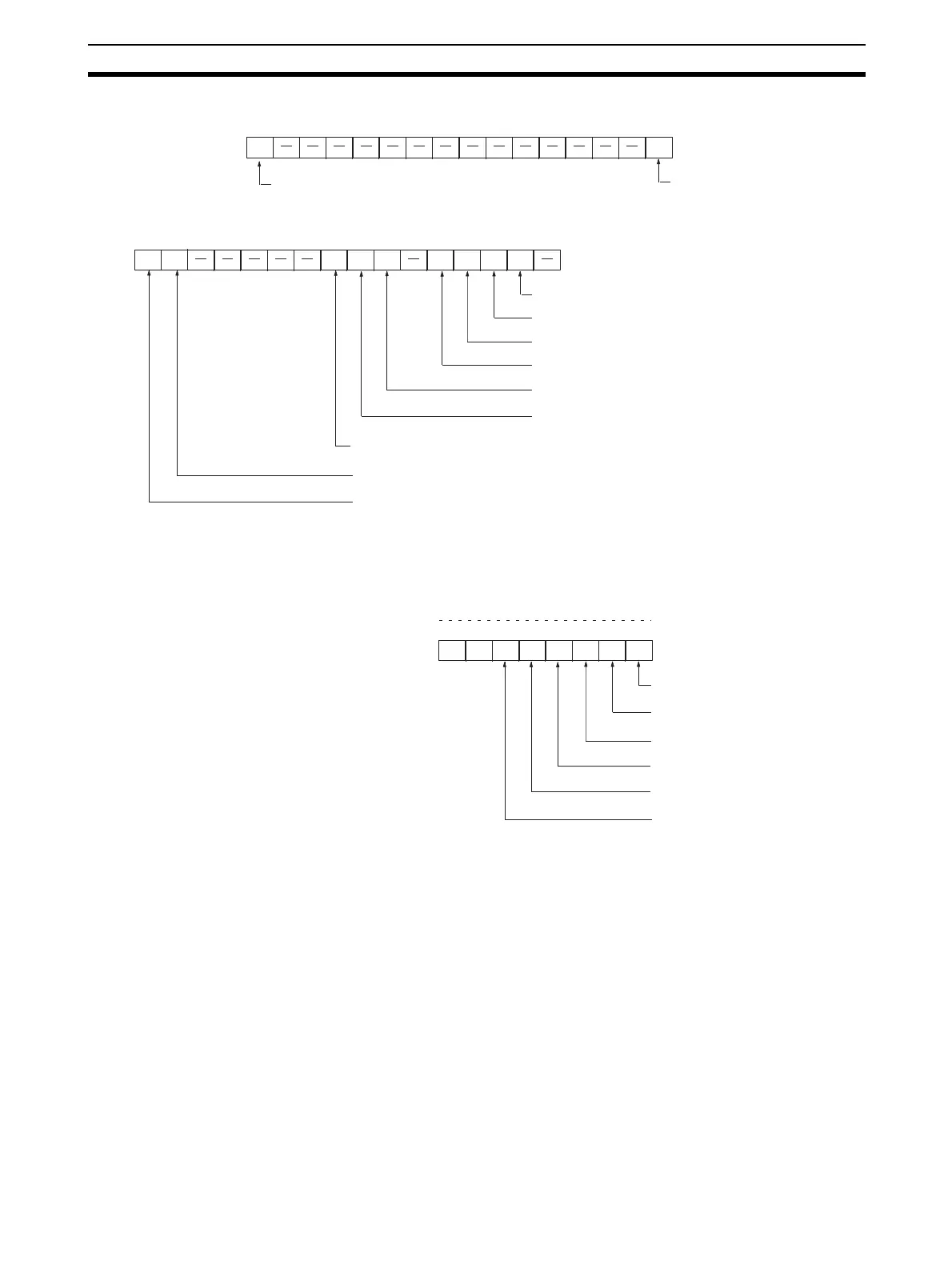

Service Status (Ethernet Unit to CPU Unit)
Error Status (Ethernet Unit to CPU Unit)
Note A transceiver is built into the CS1W-ETN11 and CJ1W-ETN11. If this bit turns ON, the Ethernet Unit has
malfunctioned.
Socket Service Request Switches 1 to 8 (CPU Unit to Ethernet Unit)
Power status (CS1W-ETN01 only)
FTP status
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
n+17
Bit 01: Transceiver echo test error (CS1W-ETN01 only)
Bit 02: IP address error
Bit 03: IP address table error
Bit 04: IP router table error
Bit 06: Routing table error
Bit 07: Transceiver error (CS1W-ETN01 only)
Bit 08: Internode test flag (OFF: Test stopped, ON: Test running)
Bit 14: Address mismatch
Bit 15: EEPROM error
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
n+18
UDP Open Request Switch
TCP Passive Open Request Switch
TCP Active Open Request Switch
Send Request Switch
Receive Request Switch
Close Request Switch
n+19 to n+22
7
15
6
14
5
13
4
12
3
11
2
10
1
9
0
8
