J INPUT/OUTPUT
Relationship between Input and
Power Supply Circuits
Input circuit
Power supply
circuit
AC/DC
power
supply
A1B1
A2
Since the input circuit and the power supply circuit are configured
independently, the input circuit can be turned on or off
irrespective of the on/off state of the power supply.
It must be noted that a voltage equivalent to the power supply
voltage is applied to the input circuit.
When connecting a relay or a transistor as an external signal
input device, pay attention to the following points to prevent
short-circuiting due to a sneak current to the transformerless
power supply.
If a relay or transistor is connected to two or more Timers, the
input terminals of those T imers must be wired properly so that
they will not be dif ferent in phase or the terminals will be
short-circuited to one another (refer to the figures below).

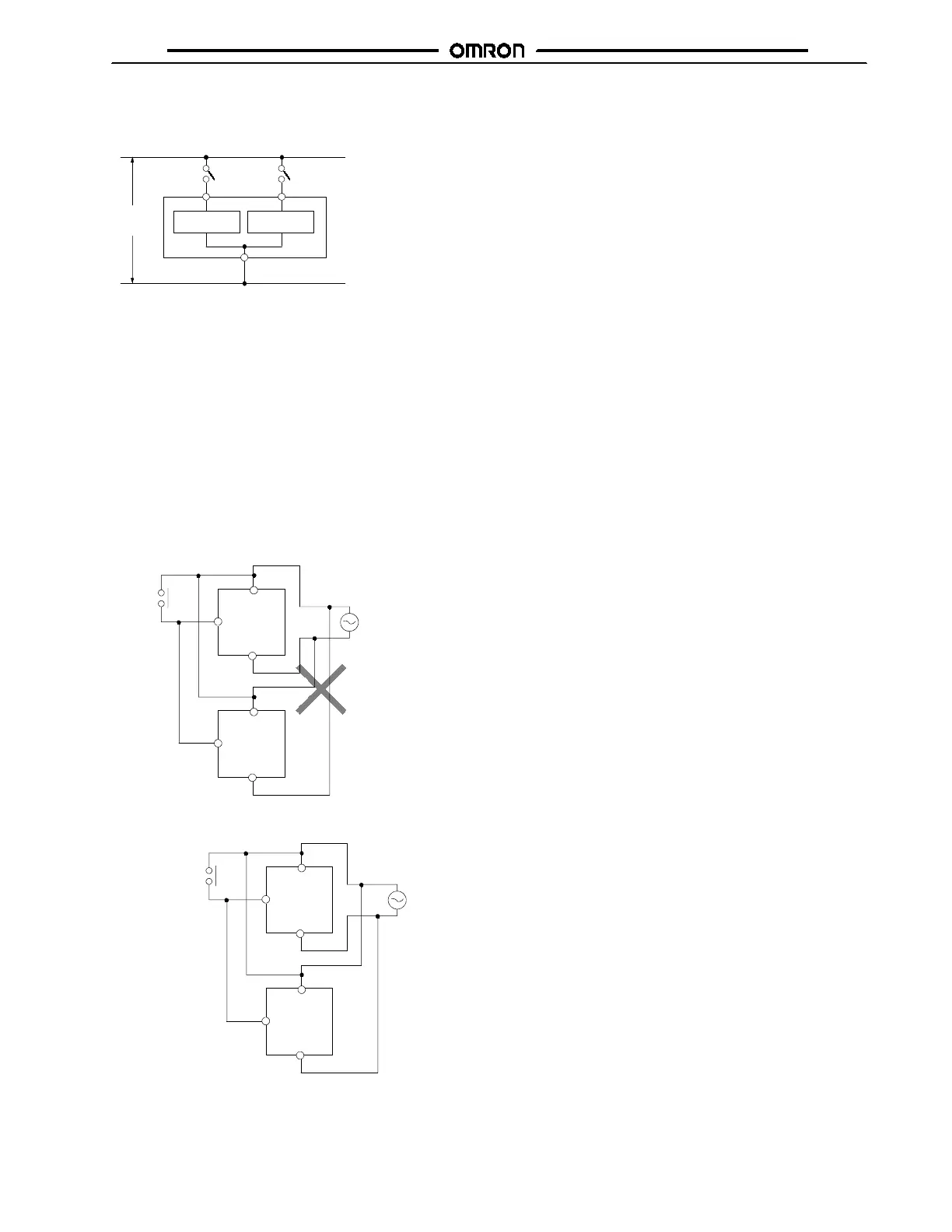

Incorrect
Contact or transistor for external input s ignal
Correct
H3DE
Power supply
B1
A1
A2
H3DE
B1
A1
A2
Short-circuit
current
Contact or transistor for external input s ignal
H3DE
Power supply
B1
A1
A2
H3DE
B1
A1
A2
Short-circuit
current
Note: The H3DE Series is provided with a transformerless pow-
er supply system.
J INPUT WIRES
The input wires must be as short as possible. If the floating
capacity of wires exceeds 2,000 pF (approx. 17 m for cables with
120 pF/m), the operation will be af fected. Pay particular attention
when using shielded cables.
J VDE CONFORMANCE
The H3DE as a built-in timer conforms to VDE 0435/P2021
provided that the following conditions are satisfied:
The output section of the H3DE is provided only with basic
isolation. To ensure reinforced isolation required by the VDE
standards, provide supplementary basic isolation on the load side
connected to the output.
The H3DE itself is designed according to the following:
• Overvoltage category III
• Pollution degree 2
The following facts are based on the above standards:
• Operation parts on the front and bottom: Reinforced isolation
with clearance of 5.5 mm and creepage distance of 5.5 mm
at 230 VAC
• Output: Basic isolation with clearance of 3 mm and creepage
distance of 3 mm at 230 VAC
