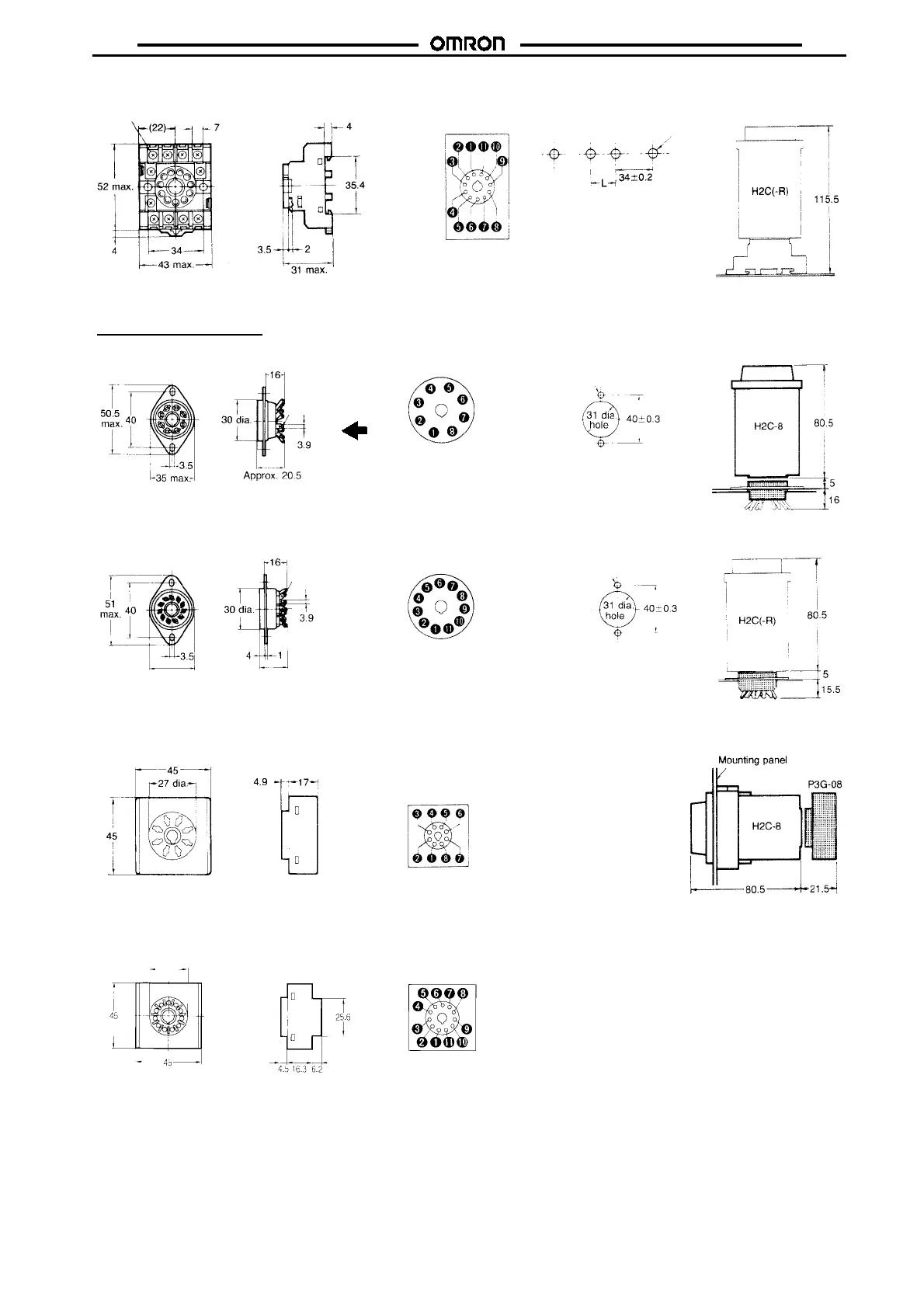

Omron H3DR-P User Manual

H2C
H2C
215
PF113A
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
For a load current of 3 A max.,
dimension L becomes 14 mm
min. with an interval of 0 mm
between timers. For a load
current of 6 A max., dimension
L becomes 19 mm min. with
an interval of 5 mm between
timers.
Two, M4 or 4.5 dia. holes
Eleven, M3.5
'
7sems
P3GA-11
Terminal Arrangement
(Bottom View)
Terminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
P3G-08
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
PL11 (Solder Terminals)
Approx. 20.5
Two, 3.5 dia. or M3
socket mounting holes
Two, 2 dia. holes
35 max.
Back Connecting Socket
PL08 (Solder Terminals)
Two, 2 dia.
holes
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Two, 3.5 dia. or 3M
socket mounting holes
Bottom View
27 dia.
