H5S
H5S
249

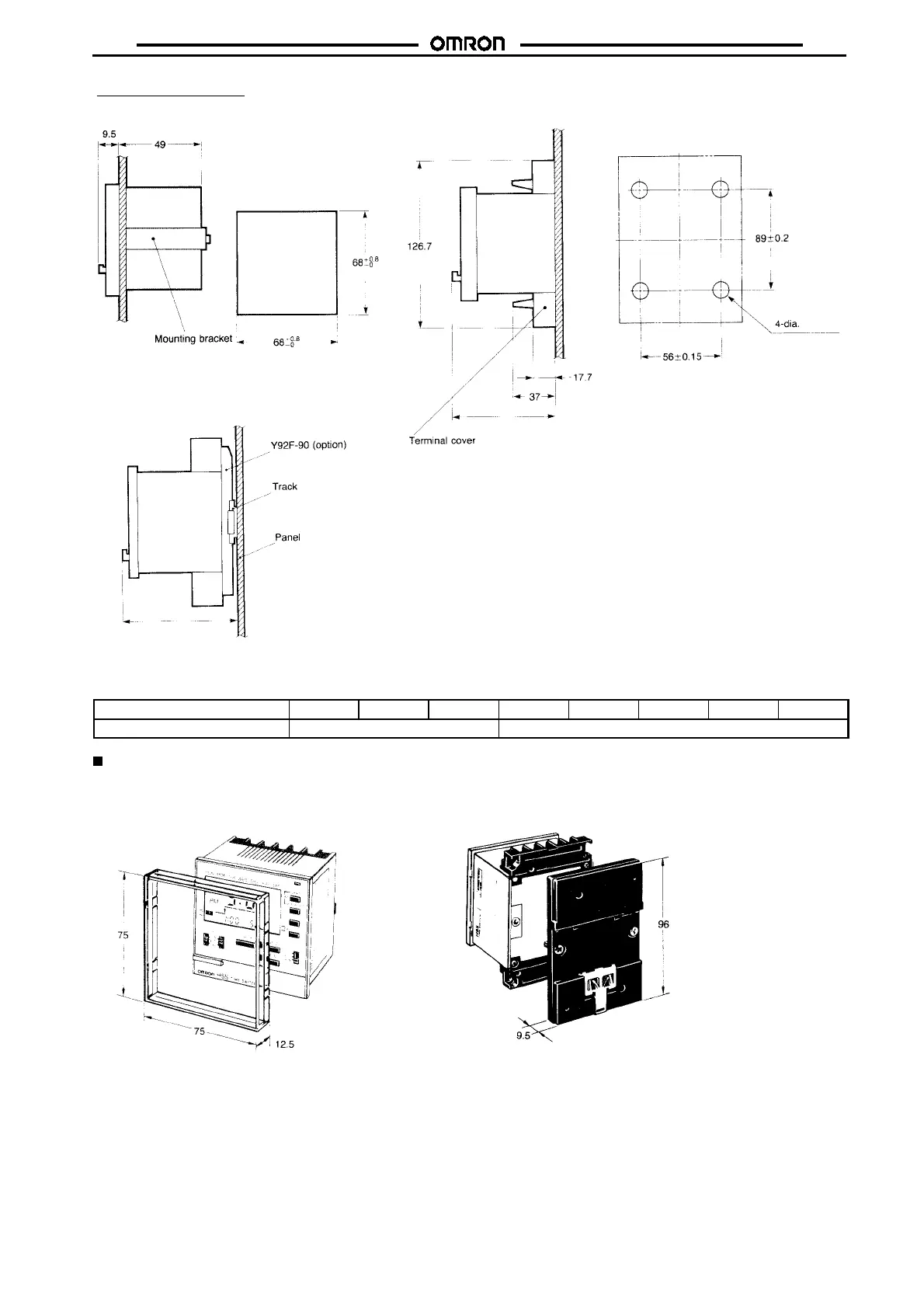

Mounting Dimensions
Flush Mounting (H5S-B)
Surface Mounting (H5S-FB)
Panel Cutout
Mounting Holes
Track Mounting (H5S-FB with Y92F-90)
79.8 (Note 2)
Note: 1. With mounting track PFP-100N or PFP-50N
2. With mounting track PFP-100N2
Note: Panel thickness: 1 to 5 mm
When mounting the time switch on a soft iron panel using the M4 tapping screws, the diameter of the mounting holes drilled into the panel vary
according to the panel thickness, as follows. If the panel is die-cast, aluminum, the hole diameter should be slightly larger.
Panel thickness
0.8 1.0 1.2 1.6 2.0 2.6 3.2 4.0
Hole diameter 3.6 3.7
Accessories (Order Separately)
Y92A-72C Protective Cover Y92F-90 Track Mounting Base
