Omron H3DR-P User Manual

H3BA
H3BA
283
Operation

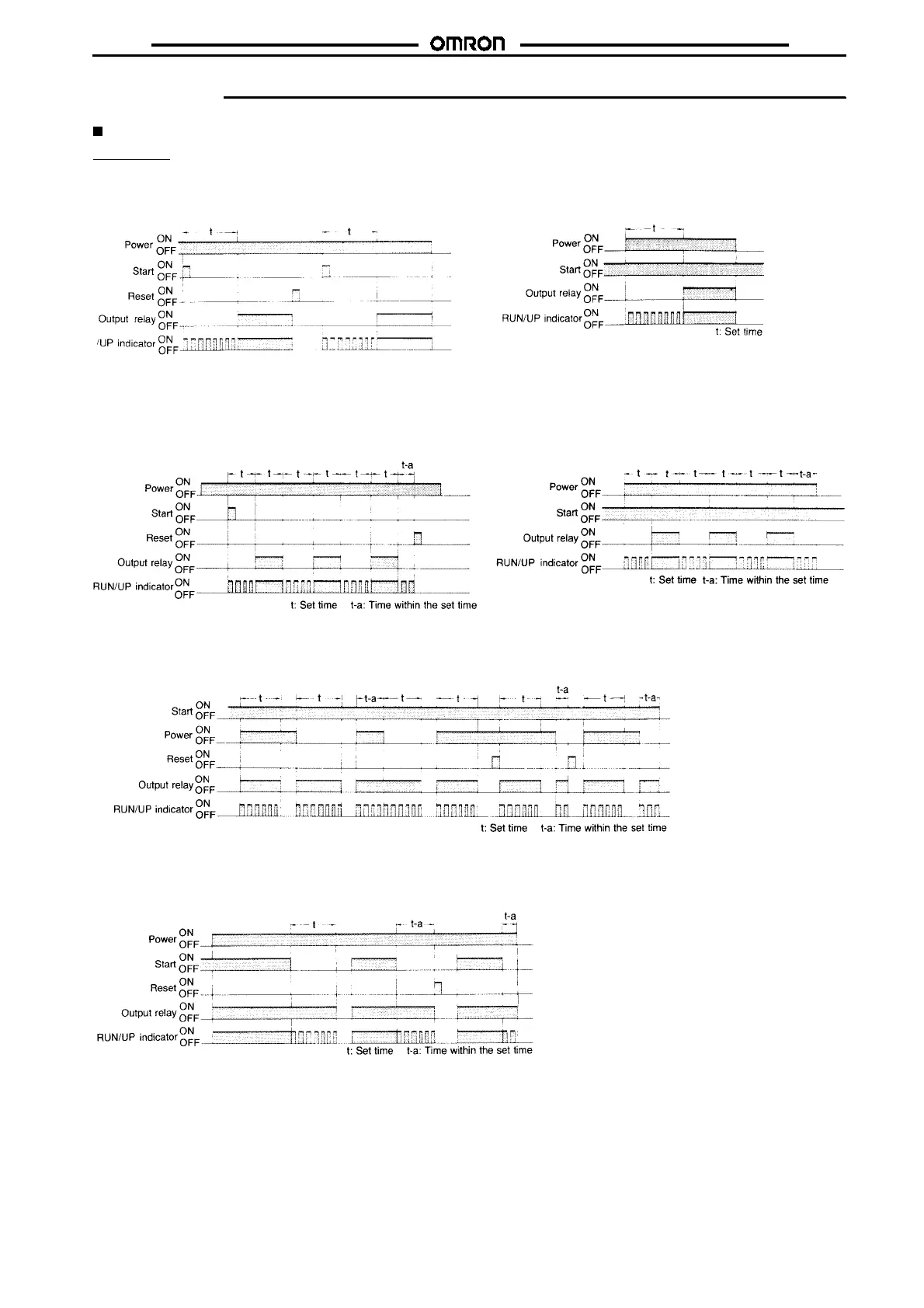

Timing Chart (Operation Modes)
H3BA (FA)
ON-delay Operation (A Mode)
Signal Start
Power-ON Start/Power-OFF Reset
Note: The minimum signal input time is 0.05 s. The start signal
generated while the timer is in operation becomes invalid.
Repeat Cycle Operation (B Mode)
Signal Start
Power-ON Start/Power-OFF Reset
Note: The minimum signal input time is 0.05 s.
Note: The minimum resetting time is 0.15 s min.
Note: The minimum resetting time is 0.1 s min.
Signal ON/OFF-delay Operation (C Mode)
Note: The minimum signal input time is 0.05 s.
Signal OFF-delay Operation (D Mode)
Note: The minimum signal input time is 0.05 s.
