Omron H3DR-P User Manual

H3DR-A/P/M
H3DR-A/P/M
72

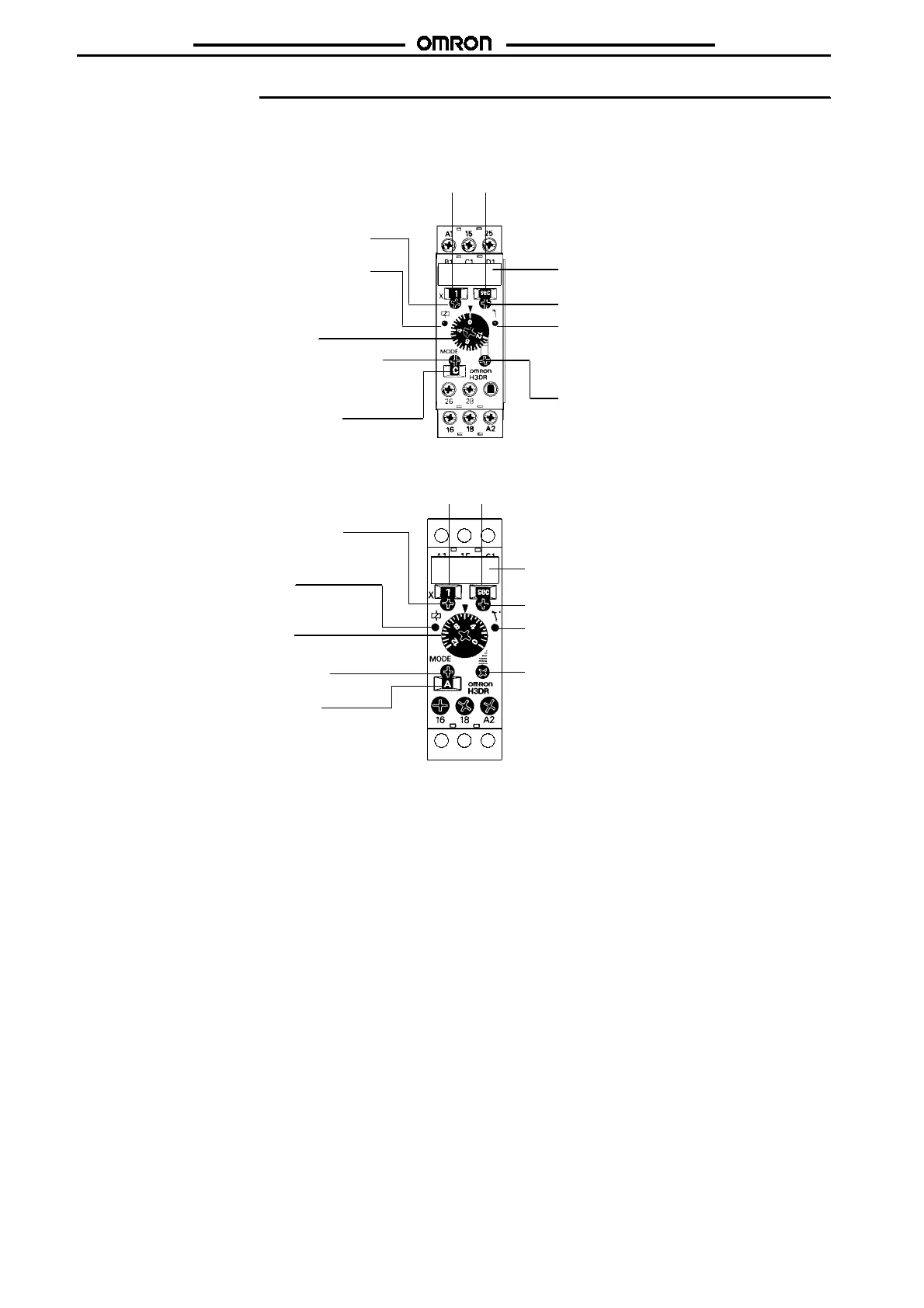

Nomenclature
NPN Input Models
H3DR-P
Scale range selector (select 0.1 or 1)
Power indicator (green)
Time setting dial (set time)
Operating mode selector (select a
mode from A, B, B2, C, D, and E)
Operating mode display window
Nameplateforuseruse(20x8mm)
Time unit selector (select one
from sec, min, hrs, and 10 h)
Output indicator (orange)
Fine-tuning dial (use to fine-
tune the set time)
Scale range
display window
Time unit display
window
Scale range
display window
Fine-tuning dial (use to
fine-tune the set time)
Power indicator (green) (Flashes when
Timer operates; lit when Timer stops
operating)
Time setting dial (set time)
Operating mode selector (select a mode
from A, B, B2, C, D, and E)
Operating mode display window
Nameplateforuseruse(20x6.6mm)
Time unit selector (select one
from sec, min, hrs, and 10 h)
Output indicator (orange)
Time unit display
window
H3DR-A/-AS
Scale range selector (select 0.1 or 1)

Omron H3DR-P Specifications

General

Brand	Omron
Model	H3DR-P
Category	Timer
Language	English
