5 Run
5-4
NB-series Programmable Terminals Startup Guide Manual(V109)
Note USB driver for NB Series must be installed in the PC if USB is used to connect NB7W and the PC. The USB
driver should be installed automatically when NB-Designer is run on a PC the first time. Refer to the NB
Series NB-Designer Operation Manual (V106) for the details of USB driver installation.

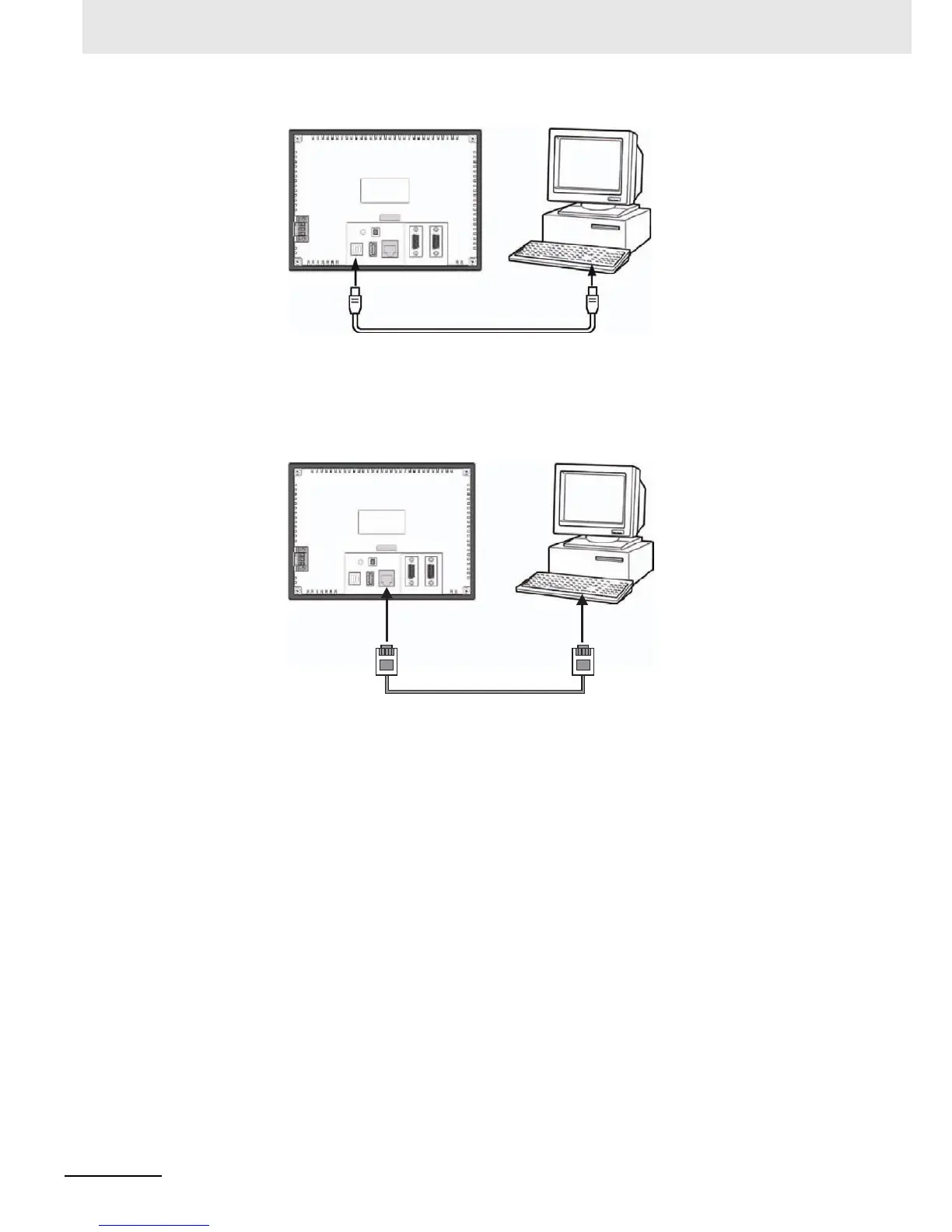

z Using Ethernet to connect NB7W (NB-TW01B supporting Ethernet
connection) with PC
1
Make Network Setting in the [PT] tab in [PT Property] dialog box of NB-Designer. (e.g. IP is
192.168.250.1; Subnet Mask is 255.255.255.0 and Default Gateway is 0.0.0.0.)
2
Set the DIP Switch of this PT to “1 ON” and “2 ON”, and then make the Network Setting: IP, Port,
Subnet Mask and Gateway (Network Setting also available for the PT with Ethernet interface).
3
Make the Network Setting in this mode same as that in the PT tab of NB-Designer. (e.g. IP is
192.168.250.1 and Subnet Mask is 255.255.255.0.)
4
Restart the PT, and then check if the IP and Subnet Mask are set successfully.
5
Set the IP address of PC and that of PT locating in the same network segment with the first 3
parts being same and the last part being different (e.g. IP is 192.168.250.2 and Subnet Mask is
255.255.255.0.).
6
Use the network cable to connect PT and PC, and then the project can be downloaded
immediately.
Note For the details of Ethernet connection, refer to NB-Designer Operation Manual.
