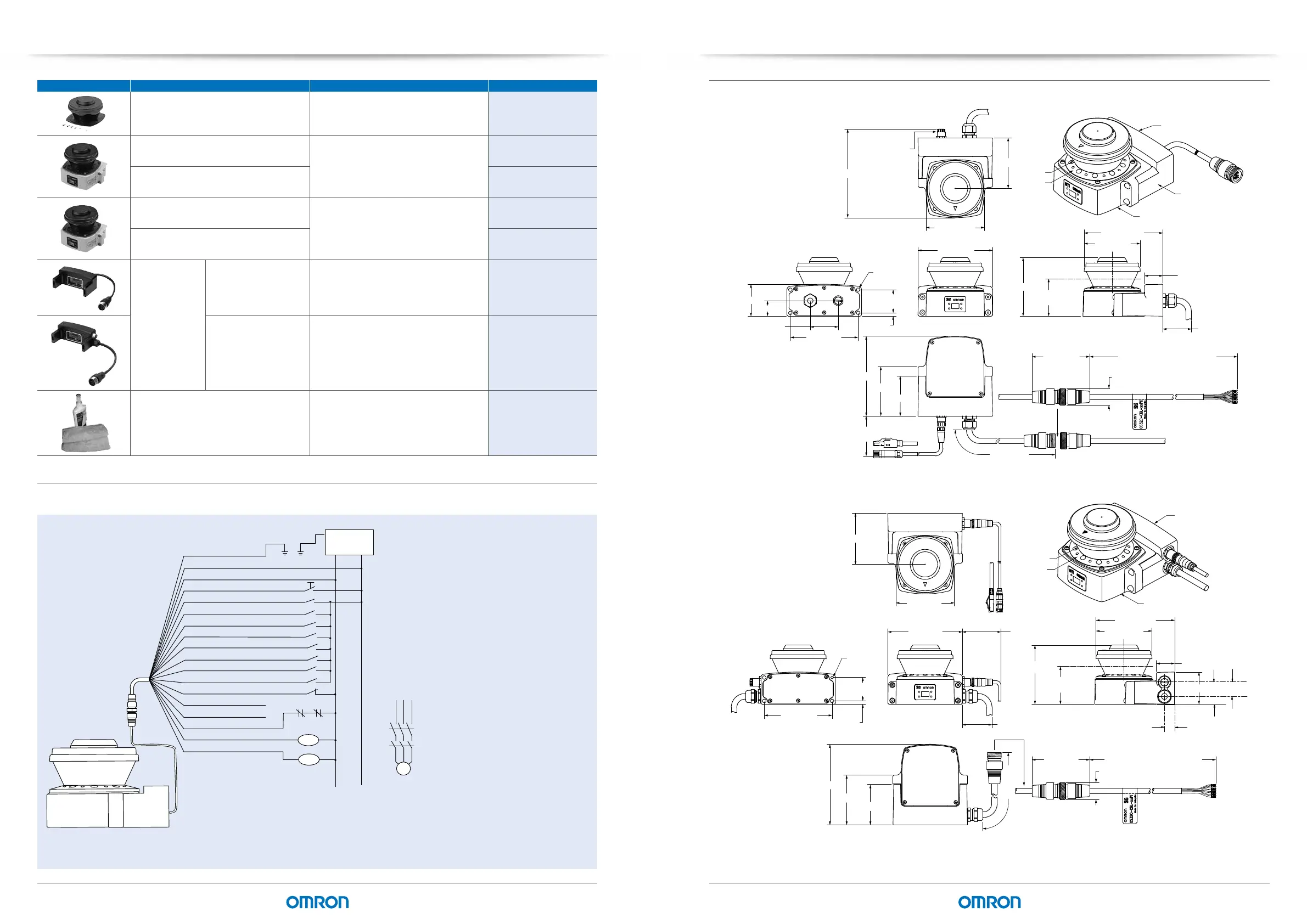

OS32C Safety sensors
10
Miscellaneous
Connection
Basic connection with single OS32C unit
Category 3, performance level d (ISO13849-1)
Appearance Description Remarks Order code
Scan window Spare for replacement
OS32C-WIN-KT
Sensor block without I/O block
Max. operating range: 3 m
Spare for replacement
OS32C-SN
Sensor block without I/O block
Max. operating range: 4 m
OS32C-SN-4M
Sensor block without I/O block for EtherNet/IP
Max. operating range: 3 m
Spare replacement for EtherNet/IP
OS32C-SN-DM
Sensor block without I/O block for EtherNet/IP
Max. operating range: 4 m
OS32C-SN-DM-4M
I/O block With cable access
from the back
Spare for replacement
OS32C-CBBP
With cable access
from the left side
Spare for replacement
OS32C-CBSP1
Window cleaning kit, anti-static cleaner Accessory
WIN-CLN-KT
24 VDC (White)
0 VDC (Brown)
Standby input (Violet)
Zone select 1 (Orange/White)
Zone select 2 (Orange/Black)
Zone select 3 (Gray)
Zone select 4 (Pink)
Zone select 5 (White/Black)
Start (Black)
Auxiliary output (Blue)
Warning output (Red/Black)
EDM (Brown/White)
Safety output B (Yellow)
Safety output A (Red)
Zone select 6 (Tan)
Zone select 7 (Orange)
Zone select 8 (Blue/White)
Functional earth (Green)
ED1
ED2
*1
*1
*2
S2
S3
S2
S1
*3
*4
*4
S2
*4
S2
*4
S2
*4
*4
*4
*4
S2
S2
S2
0V
E1
+24V
PE
ED1 ED2
M1
ED1
ED2
S1 : Start input
S2 : Zone select switch
S3 : Standby switch
ED1, ED2: Forced guided relay
M1 : 3-Phase motor
E1 : 24 VDC Power
OS32C conguration
– External Device Monitoring enabled
– Start/restart interlock
*1. External devices (ED1, ED2) are forced guide relays. (G7Z, G7SA, G7S, etc)
*2. If the External Device Monitoring is not used, connect brown/white wires to 0 V, and then turn OFF the
External Device Monitoring with the configuration software.
*3. Use NC-contact for a start input.
*4. For zone select switch setting, refer to OS32C Series user's manual.
Note: This wiring example is for category 3.
OS32C_tecPart_rev04.fm Seite 10 Donnerstag, 2. Oktober 2014 9:36 09
OS32C Safety sensors
11
Dimensions
OS32C with back location cable entry - OS32C-BP/OS32C-BP-DM
OS32C with side location cable entry - OS32C-SP1/OS32C-SP1-DM
158.3 [6.24]
90.4 [3.56]
Ethernet connector
with M12 cap plug
Window
Dust
detection
Ethernet cable not shown
Ethernet
cable
I/O cable
I/O cable
I/O block
Sensor head
140.4 [5.53]
100.0 [3.94]
32.8 [1.29]
50.9 [2.01]
104.3 [4.11]
133.0 [5.24]
M5 x 0.8,
DEPTH 9.0 [0.35]
MAX (x4)
41.4 [1.63]
MTG holes
6.0 [0.24]
57.0 [2.25]
50.0 [1.97]
27.7 [1.09]
104.5 [4.12]
67.0 [2.64]
Scan plane
2.0, 3.0, 10.0, 20.0, or 30.0 Meters
30.0 [1.18] dia. OD
102.9 [4.05]
I/O cable assy
270 (10.63)
121.0 [4.77]
MTG holes
142.7 [5.62]
88.1 [3.47]
71.5 [2.82]
71.3 [2.81]
(min)
Back view
Bottom view
Side view
Front view
Top view
Ethernet
cable
Window
Dust
detection
I/O block
Sensor head
I/O cable
I/O cable
30.0 [1.18] dia. OD
2.0, 3.0, 10.0, 20.0, or 30.0 Meters
18.2 [0.72]
39.0 [1.54]
25.0 [0.99]
104.3 [4.11]
90.4 [3.56]
67.0 [2.64]
Scan plane
M5 x 0.8,
DEPTH 9.0 [0.35]
MAX (x4)
121.0 [4.77]
MTG holes
41.4 [1.63]
MTG holes
133.0 [5.24]
70.8 [2.79]
140.4 [5.53]
100.0 [3.94]
104.5 [4.12]
32.8 [1.29]
57.0 [2.25]
6.0 [0.24]
50.4 [1.99]
142.7 [5.62]
88.2 [3.47]
71.5 [2.82]
270 [10.63]
102.9 [4.05]
I/O cable assy
Back view
Bottom view
Side view
Front view
Top view
Ethernet cable
OS32C_tecPart_rev04.fm Seite 11 Donnerstag, 2. Oktober 2014 9:36 09
