4 System Design
4 - 46
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications

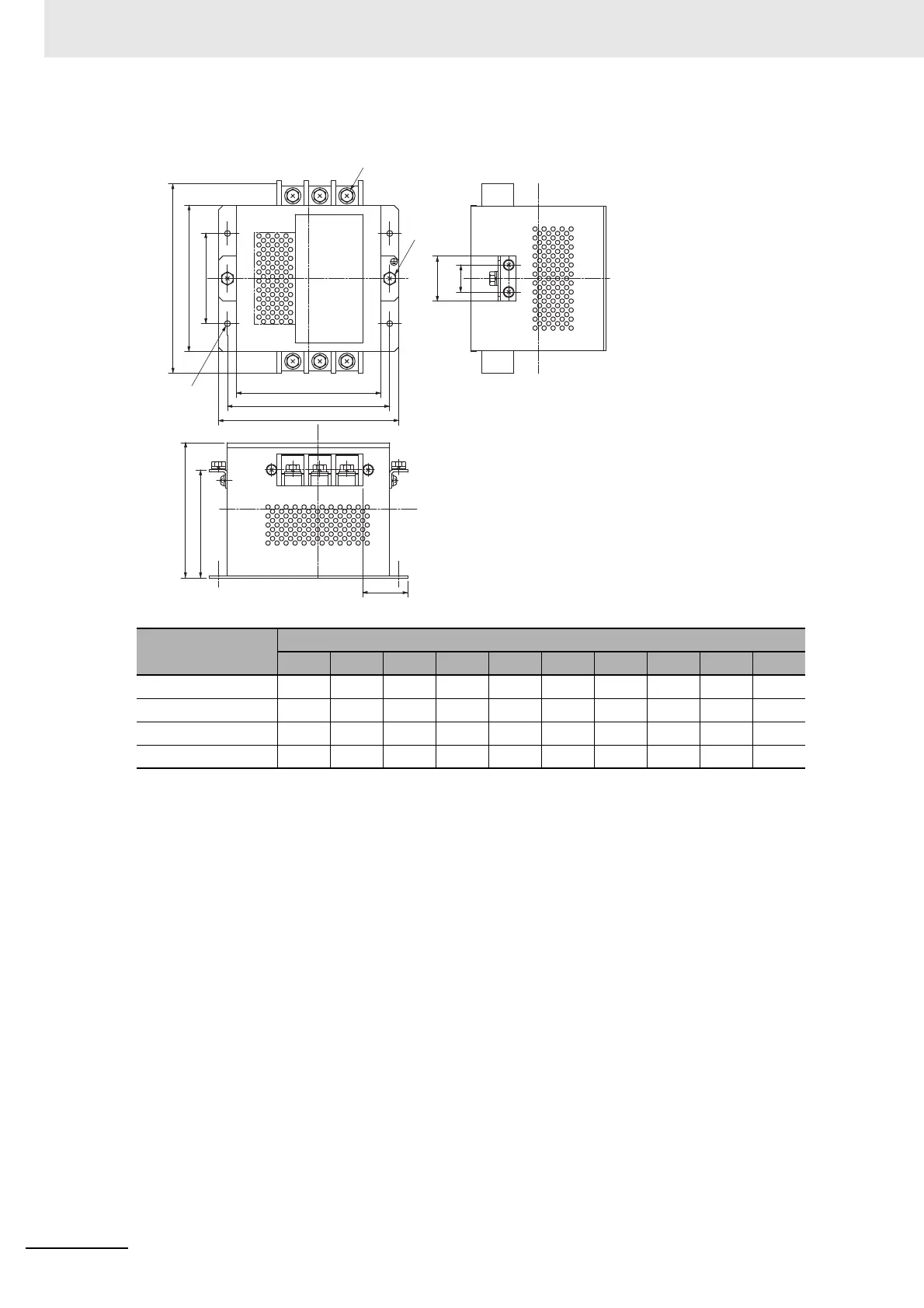

3G3AX-NFO03/-NFO04/-NFO05/-NFO06
Model
Dimensions [mm]
A B C E F H J N O P
3G3AX-NFO03 160 145 130 80 112 120 – – M4 154
3G3AX-NFO04 200 180 160 100 162 150 120 M5 M5 210
3G3AX-NFO05 220 200 180 100 182 170 140 M6 M6 230
3G3AX-NFO06 220 200 180 100 182 170 140 M8 M8 237
C
B
A
P
F
E
6-O
2-N
50 30
4-
Ø
6.5
50
H
J
