154

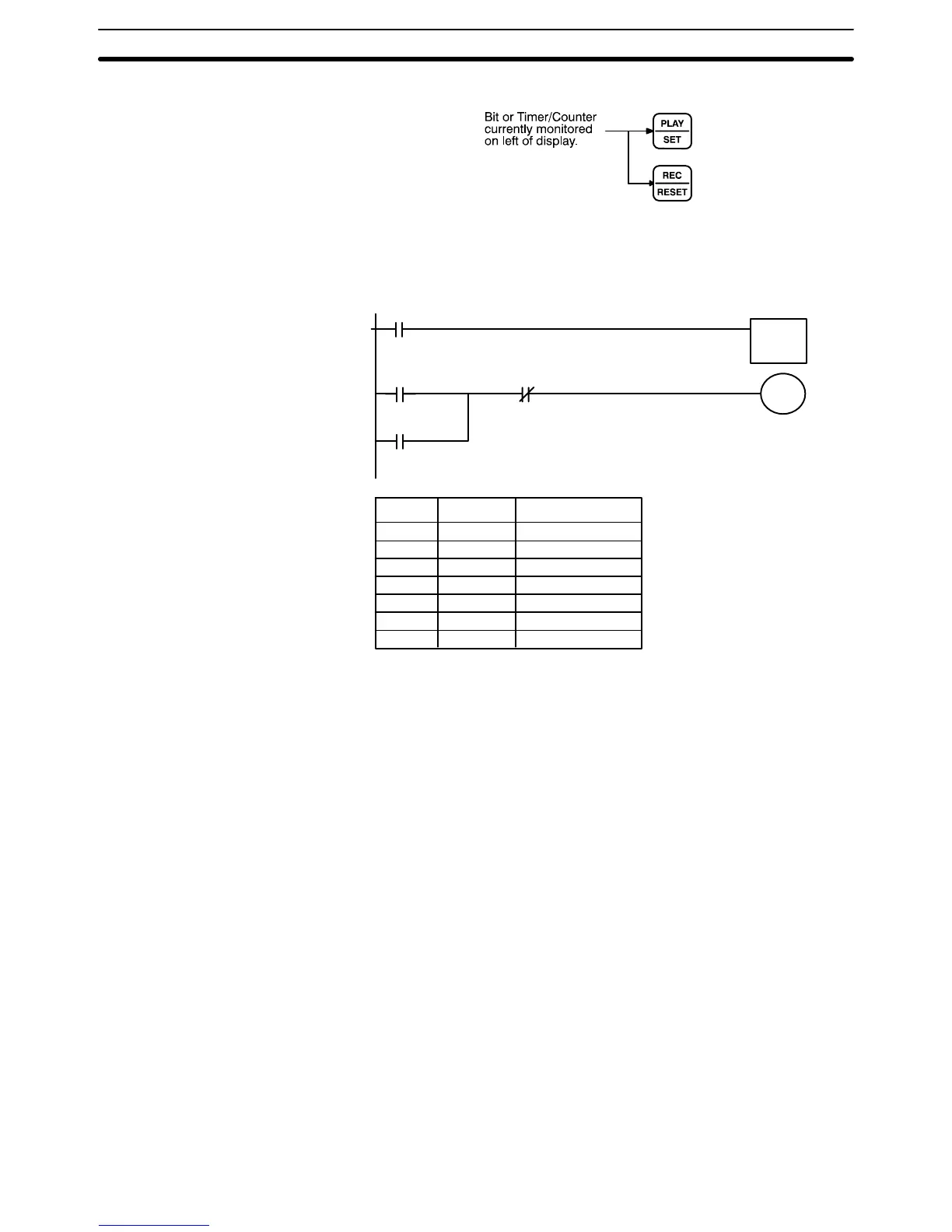

Key Sequence
The following example shows how either bits or timers can be controlled with
the Force Set/Reset operation. The displays shown below are for the follow
-
ing program section.
0200
LD
0002
0201
TIM
00
#
0123
0202
LD
TIM
00
0203
OR
0501
0204
AND NOT
0003
0205
OUT
0501
TIM 00
SV
0002
TIM 00
0501
0501
0003
Address
Instruction
Operands
Example
Monitoring Operation and Modifying Data
Section 7-3
164
