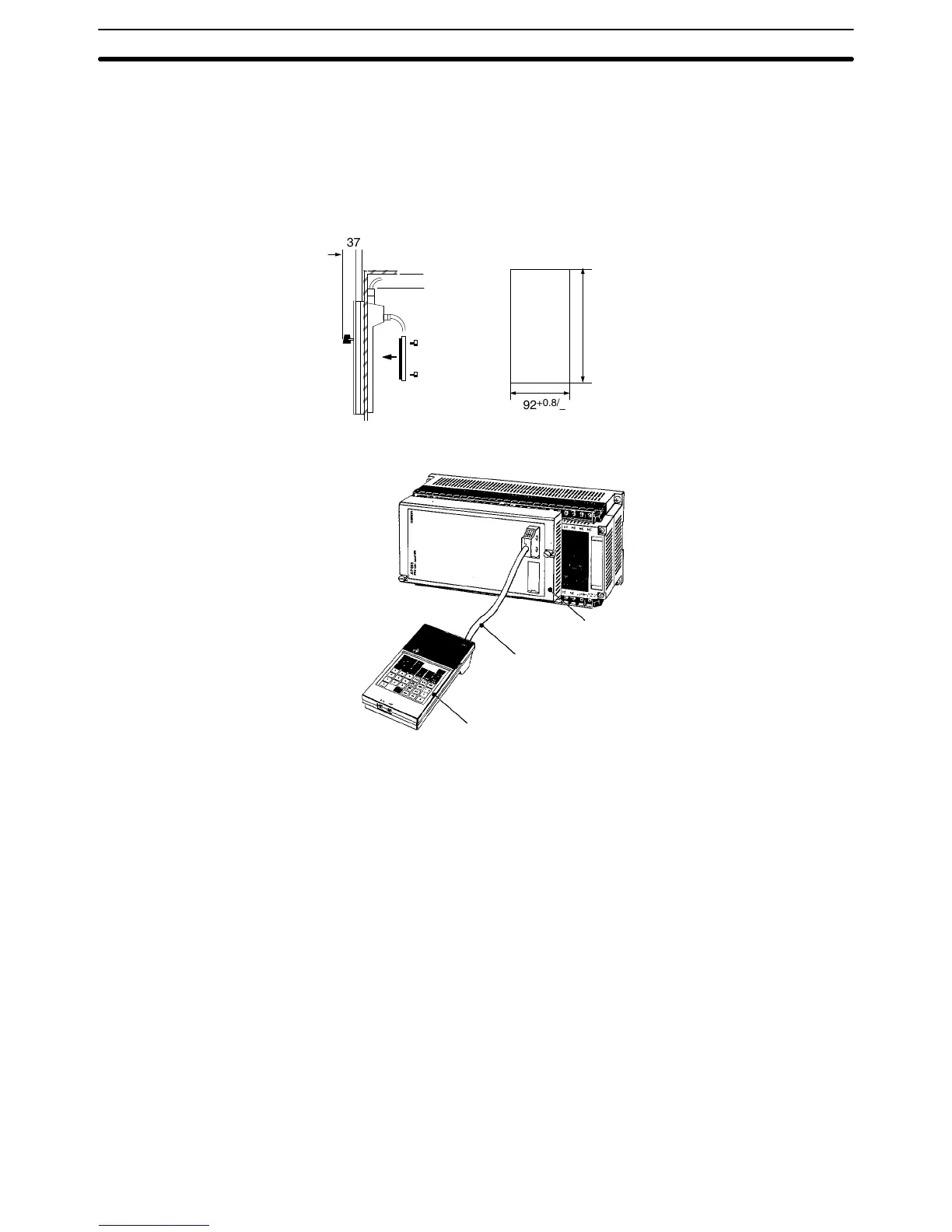

Programming Console The Hand-held Programming Console can be mounted to a panel if desired.
To do so, the Programming Console Mounting Bracket (C200H-ATT01, sold
separately) is required. Mounting dimensions and connections are shown
below. Only one connector should be used at any one time. When connect-
ing the Programming Console, press in firmly until you hear it click into place.
C200H-PRO27-E
Panel Mounting
Approx. 80
Panel Cutout
(DIN 43700)
37
92
+0.8/
–0.0
186
+1.1
/
–0.0
P-type PC
Programming Console
Adapter 3G2A5-AP003
Programming Console Connecting Cable
C200H-CN222 (2 m) or C200H-CN422 (4 m)
Hand-held Programming Console
C200H-PRO27-E
The other Programming Consoles are normally connected directly to the
CPU and held in place with two mounting screw.
Caution Never run a Programming Console Connecting Cable past high-power lines
or other sources of electrical noise, as these will prevent correct operation.
Also, never leave the PC operating in RUN mode when the Programming
Console is connected via Connecting Cable, as noise entering through the
cable could also cause malfunctions in operation.
Note 1. Always keep the unused connector covered.
2. Do not attach a key holder to the switch key; it will interfere with operation.
3. The key cannot be removed in PROGRAM mode.
4. Use the switch on the upper right side of the Programming Console to
adjust the volume of the beeper.
5. The 3G2C6-CN122 (1 m) and 3G2C7-CN5111 (50 cm) Connecting
Cables are available to connect the 3G2A5-PRO13-E and
3G2A6-PRO15-E Programming Consoles. The Programming Console
Adapter is not required for these.
6. For operational information, refer to your PC’s Operation Manual.
Dimensions and Installation Section 2-3
