33

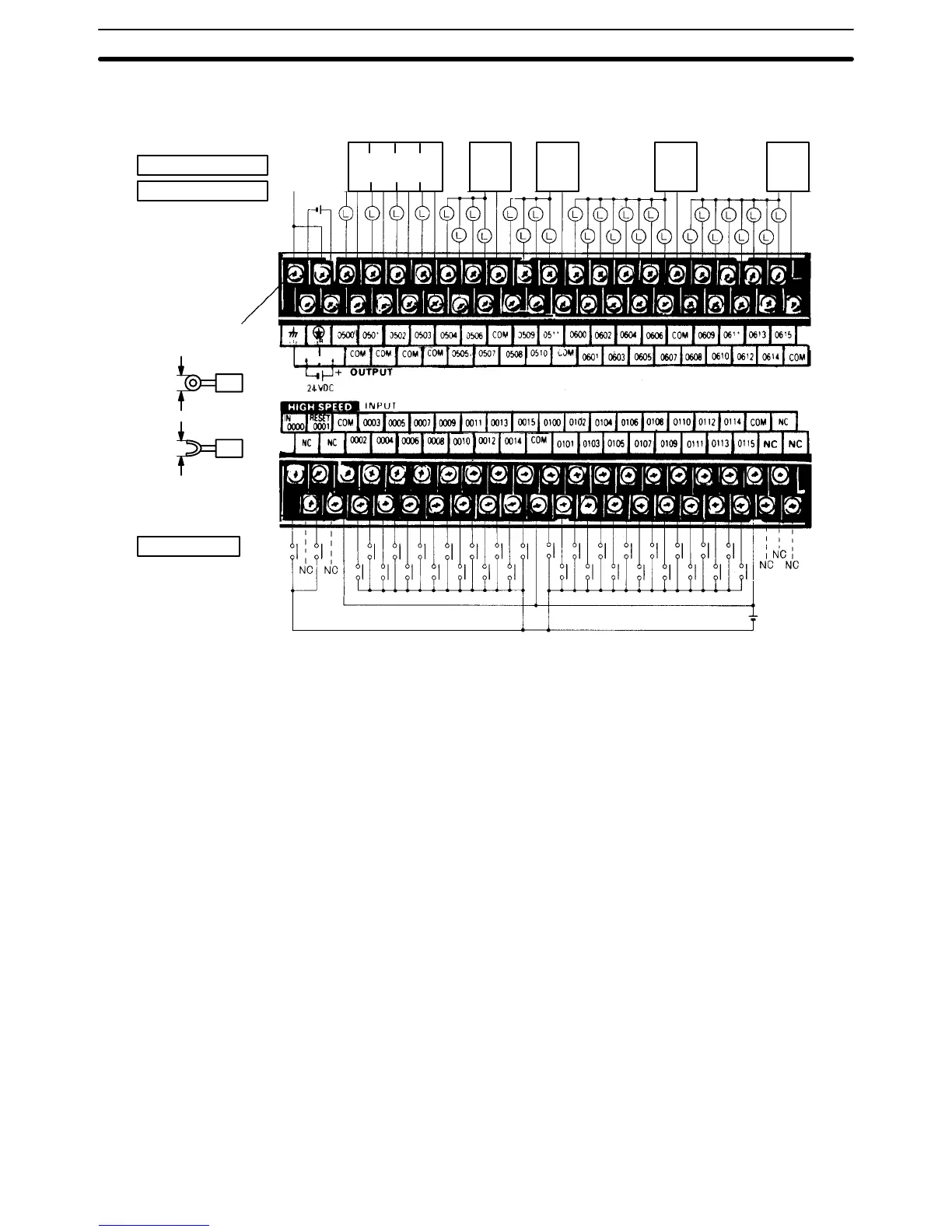

CPU C60P (CDj-D) A separate power supply must be used for the DC inputs.
Relay contact outputs
Transistor outputs
Power
supply
(24
VDC)
Ground
Load power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Load
power
supply
Upper terminal block
Lower terminal block
Inputs (24 VDC)
High-
speed
counter
input
Hardware reset input
M3.5 screws
7.5 max.
7.5 max.
Do not connect the NC terminals to anything.
I/O Wiring Section 2-6
