Appendix DProgramming Console Operations
83
*Modes in which the given instruction is applicable: R = RUN, M = MONITOR, P = PROGRAM
Operation/Description Key sequenceModes*

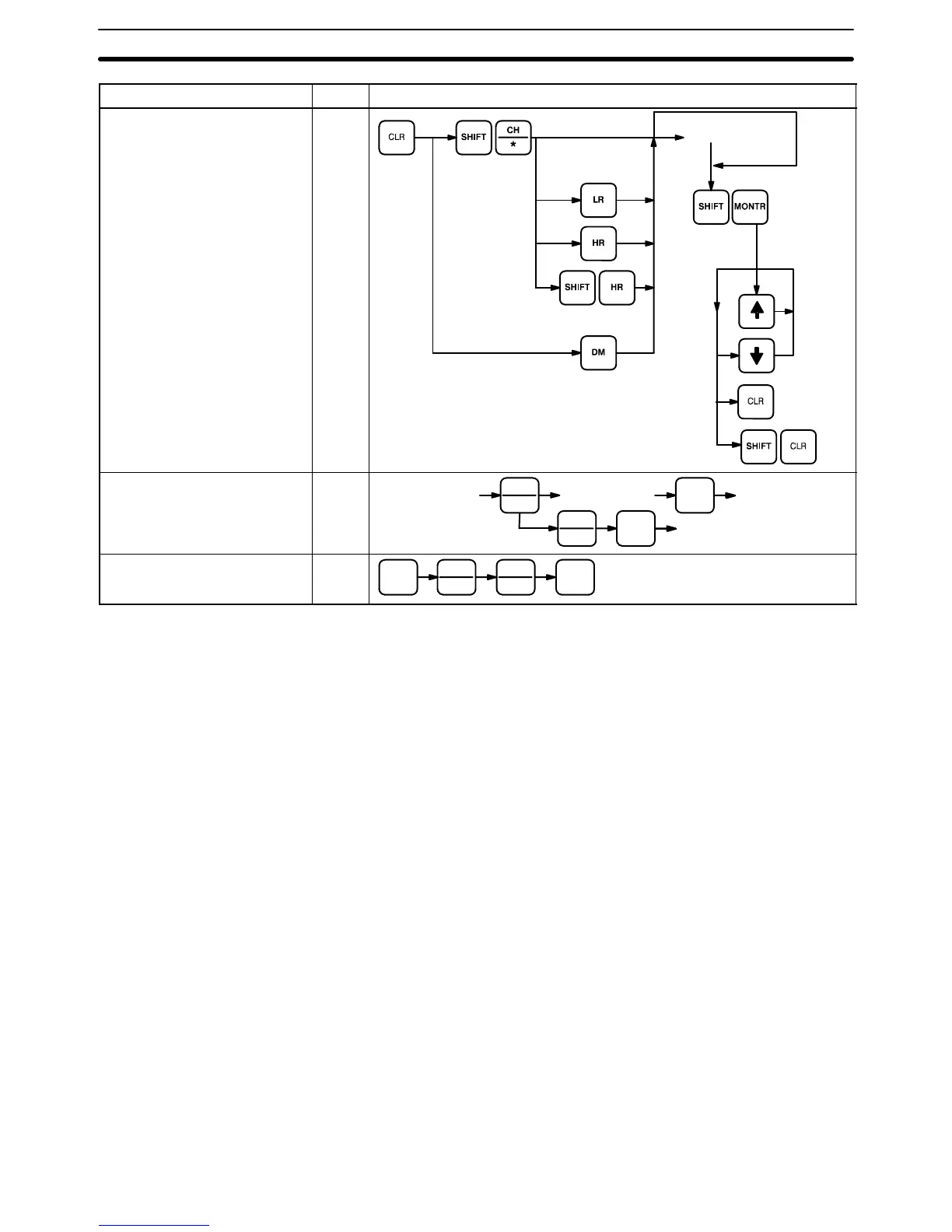

Binary Monitor
The contents of a monitored word can
be specified to be displayed in binary
by pressing SHIFT and MONTR after
entering the word address. Words
can be scrolled by pressing the up
and down keys to increment and
decrement the displayed address. To
terminate the binary display, press
CLR.
R P M
[Word Address]
Binary monitor
clear
All monitor
clear
Program Read Protect/Clear R P M
WRITE
REC
RESET
[Mode changed] [4-digit number] Cleared
PLAY
SET
WRITE
Protected
Clear Forced Set/Reset
Simultaneously clears all forced bits
within the word currently displayed.
P M
CLR
REC
RESET
PLAY
SET
NOT
