AP1302CSSL00SMGAH−GEVB
www.onsemi.com
2

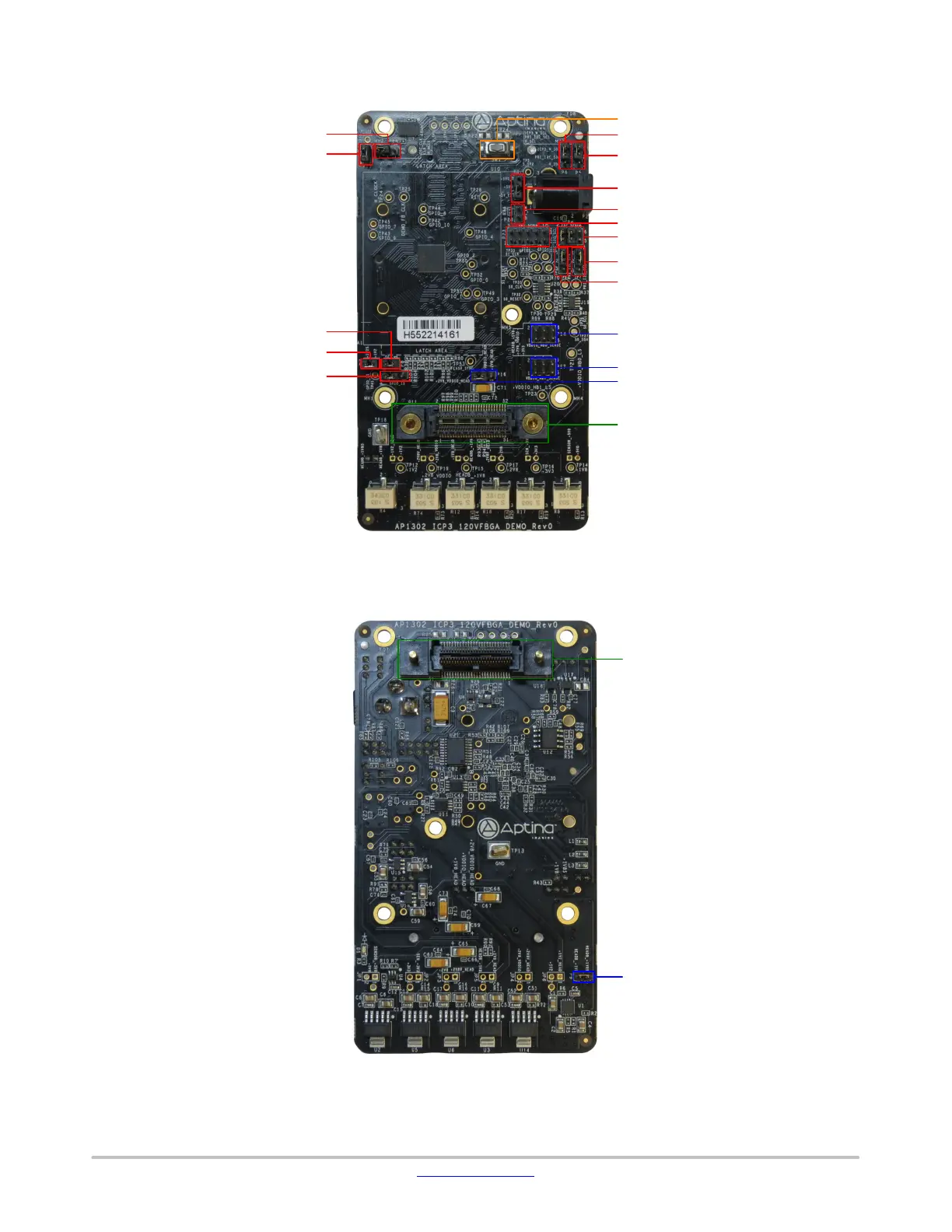

Top View
Figure 3. Top View of the Board − Default Jumpers
Headboard Connector P11
RESET Switch SW1
PRI_I2C_SDA P5
PRI_I2C_SCL P6
+5V0 Select P1
SPI_LS_EN P24
SPI Debug P23
I
2
C Debug P4
SEC_I2C_SCL P12
SEC_I2C_SDA P13
+VDDIO_HB0_SENSE P14
+VDDIO_HB1_SENSE P17
+VDDIO_HEAD Select P16
VBLOW P15
CLK_SELECT P3
I2C_ID Select P10
+1V2S P7
+1V8S P8
Bottom View
Figure 4. Bottom View of the Board − Connectors
Baseboard Connector J1
+HEADB_1V8S P9
