OIL
SEAL
USE GREASE IN
SPACE BETWEEN
SEALS TO
IMPROVE SEAL
MOUNTING
FACE OF
GEAR COVER
~-~,__-=0.97
± 0.02 INCH
(24.6 ± 0.5 mm)
THIS SURFACE
SHOULD BE CLEANED
OF
ALL
OLD SEALING
COMPOUND BEFORE
GEAR COVER OIL SEAL
INSTAlliNG
SEAL

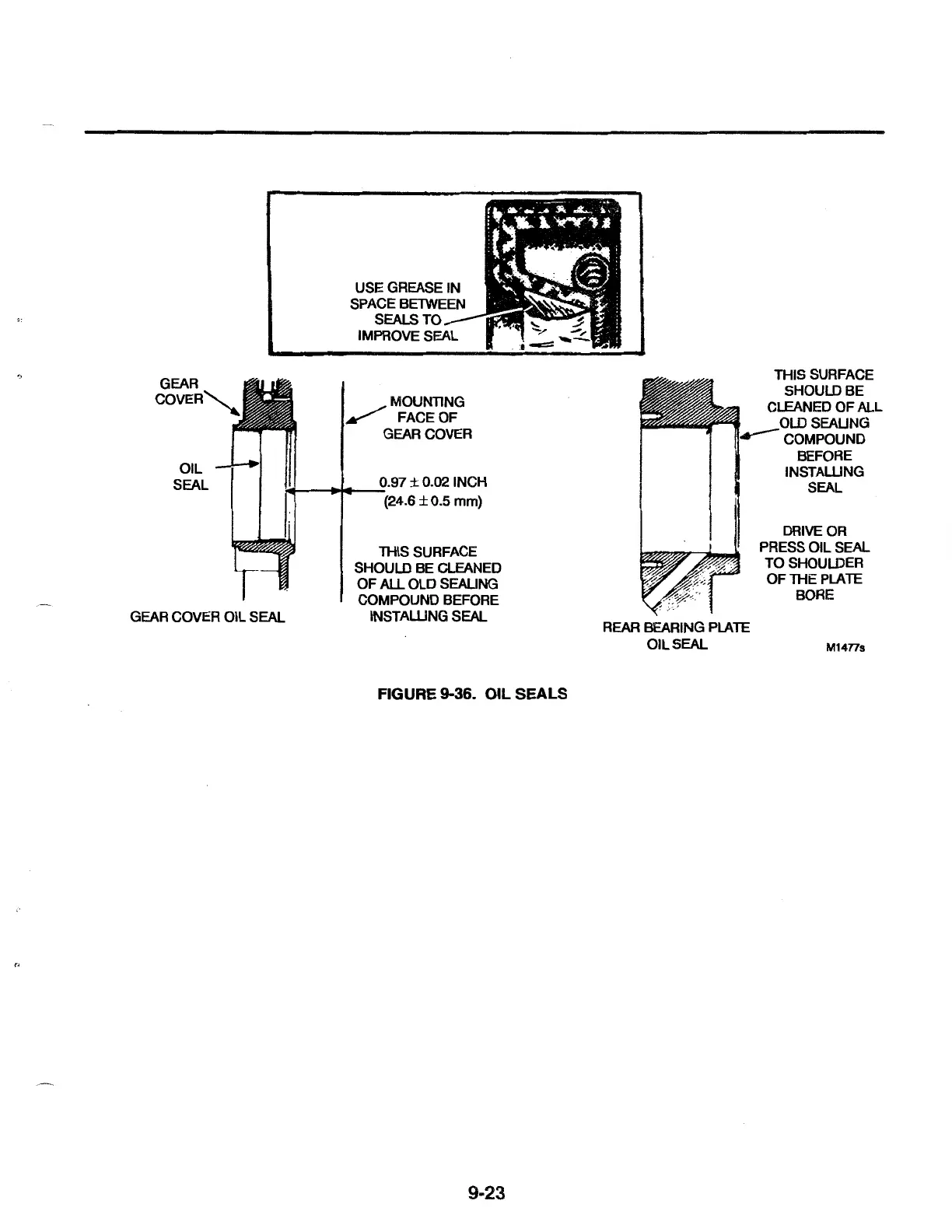

FIGURE 9-36.
OIL
SEALS
9-23
REAR BEARING PLATE
OIL SEAL
THIS SURFACE
SHOULD BE
CLEANED
OF
ALL
SEALING
COMPOUND
BEFORE
INSTAlliNG
SEAL
DRIVE OR
PRESS OIL SEAL
TO SHOULDER
OFTHEPLATE
BORE
M1477S
