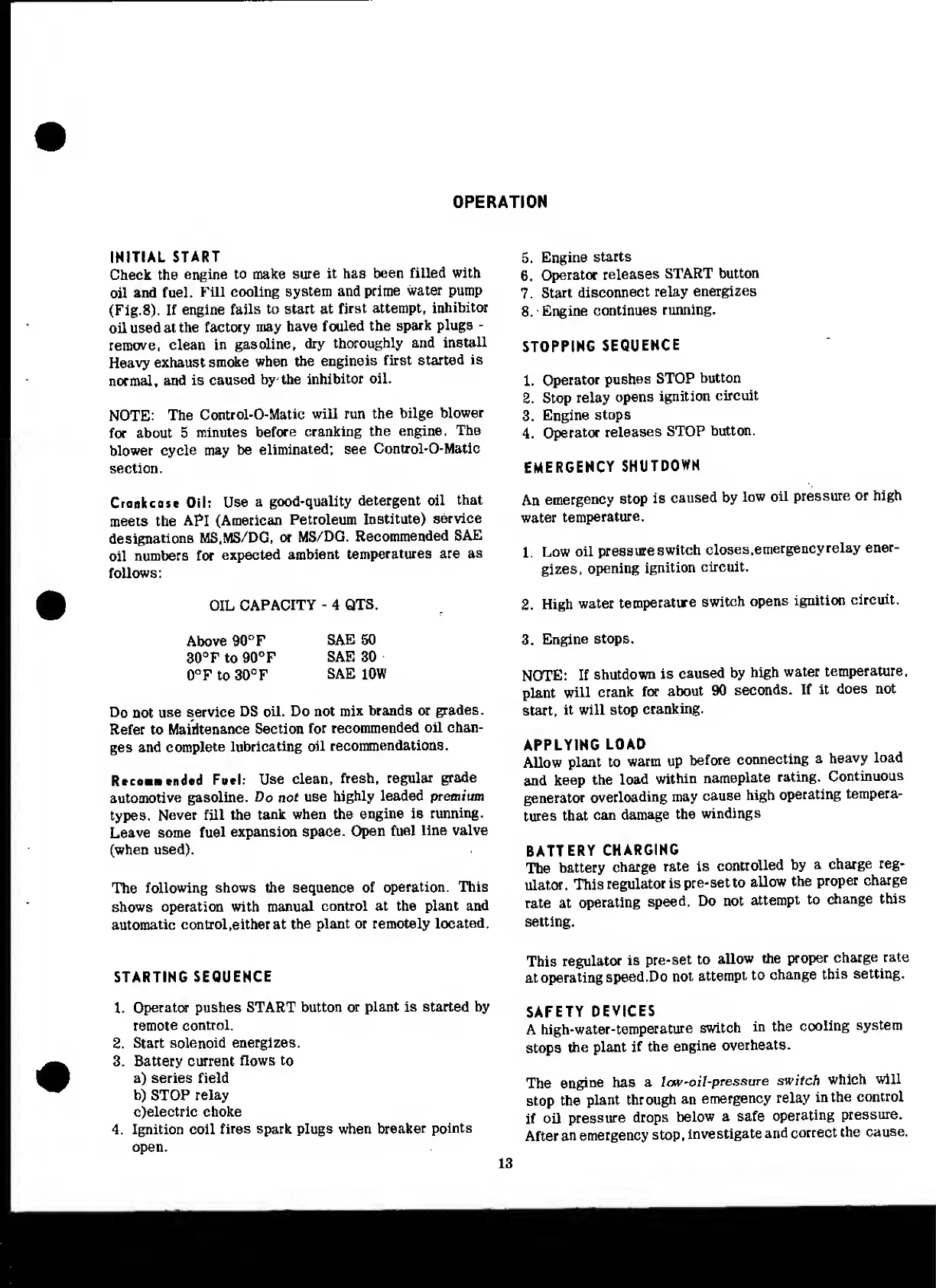

OPERATION
INITIAL
START
Check
the
engine
to
make
sure
it
has
been
filled
with
oil
and
fuel.
Fill
cooling
system
and
prime
water
pump
(Fig.8).
If
engine
fails
to
start
at
first
attempt,
inhibitor
oil
used
at
the
factory
may
have
fouled
the
spark
plugs
-
remove,
clean
in
gasoline,
dry
thoroughly
and
install
Heavy
exhaust
smoke
when
the
engineis
first
started
is
normal,
and
is
caused
by
the
inhibitor
oil.
NOTE:
The
Control-O-Matic
will
run
the
bilge
blower
for
about
5
minutes
before
cranking
the
engine.
The
blower
cycle
may
be
eliminated;
see
Conhrol-O-Matic
section.
Crankcase
Oil:
Use
a
good-quality
detergent
oil
that
meets
the
API
(American
Petroleum
Institute)
service
designations
MS.MS/DG,
or
MS/DG.
Recommended
SAE
oil
numbers
for
expected
ambient
temperatures
are
as
follows:
OIL
CAPACITY
-
4
QTS.
Above
90°
F
SAE
50
30°F
to
90°
F
SAE
30
0°F
to
30°
F
SAE
10W
Do
not
use
service
DS
oil.
Do
not
mix
brands
or
grades.
Refer
to
Maintenance
Section
for
recommended
oil
chan¬
ges
and
complete
lubricating
oil
recommendations.
Rec«HKended
Fuel:
Use
clean,
fresh,
regular
grade
automotive
gasoline.
Do
not
use
highly
leaded
premium
types.
Never
fill
the
tank
when
the
engine
is
running.
Leave
some
fuel
expansion
space.
Open
fuel
line
valve
(when
used).
The
following
shows
the
sequence
of
operation.
This
shows
operation
with
manual
control
at
the
plant
and
automatic
control
.either
at
the
plant
or
remotely
located.
STARTING
SEQUENCE
1.
Operator
pushes
START
button
or
plant
is
started
by
remote
control.
2.
Start
solenoid
energizes.
3.
Battery
current
flows
to
a)
series
field
b)
STOP
relay
c)
eleetric
choke
4.
Ignition
coil
fires
spark
plugs
when
breaker
points
open.
5.
Engine
starts
6.
Operator
releases
START
button
7.
Start
disconnect
relay
energizes
8.
Engine
continues
running.
STOPPING
SEQUENCE
1.
Operator
pushes
STOP
button
2.
Stop
relay
opens
ignition
circuit
3.
Engine
stops
4.
Operator
releases
STOP
button.
EMERGENCY
SHUTDOWN
An
emergency
stop
is
caused
by
low
oil
pressure
or
high
water
temperature.
1.
Low
oil
pressure
switch
closes.emergency
relay
ener¬
gizes,
opening
ignition
circuit.
2.
High
water
temperature
switch
opens
ignition
circuit.
3.
Engine
stops.
NOTE:
If
shutdown
is
caused
by
high
water
temperature,
plant
will
crank
for
about
90
seconds.
If
it
does
not
start,
it
will
stop
cranking.
APPLYING
LOAD
Allow
plant
to
warm
up
before
connecting
a
heavy
load
and
keep
the
load
within
nameplate
rating.
Continuous
generator
overloading
may
cause
high
operating
tempera¬
tures
that
can
damage
the
windings
BATTERY
CHARGING
The
battery
charge
rate
is
controlled
by
a
charge
reg¬
ulator.
This
regulator
is
pre-set
to
allow
the
proper
charge
rate
at
operating
speed.
Do
not
attempt
to
change
this
setting.
This
regulator
is
pre-set
to
allow
the
proper
charge
rate
at
operating
speed.Do
not
attempt
to
change
this
setting.
SAFETY
DEVICES
A
high-water-temperature
switch
in
the
cooling
system
stops
the
plant
if
the
engine
overheats.
The
engine
has
a
lew-oil-pressure
switch
which
will
stop
the
plant
through
an
emergency
relay
in
the
control
if
oil
pressure
drops
below
a
safe
operating
pressure.
After
an
emergency
stop,
investigate
and
correct
the
cause.
13
