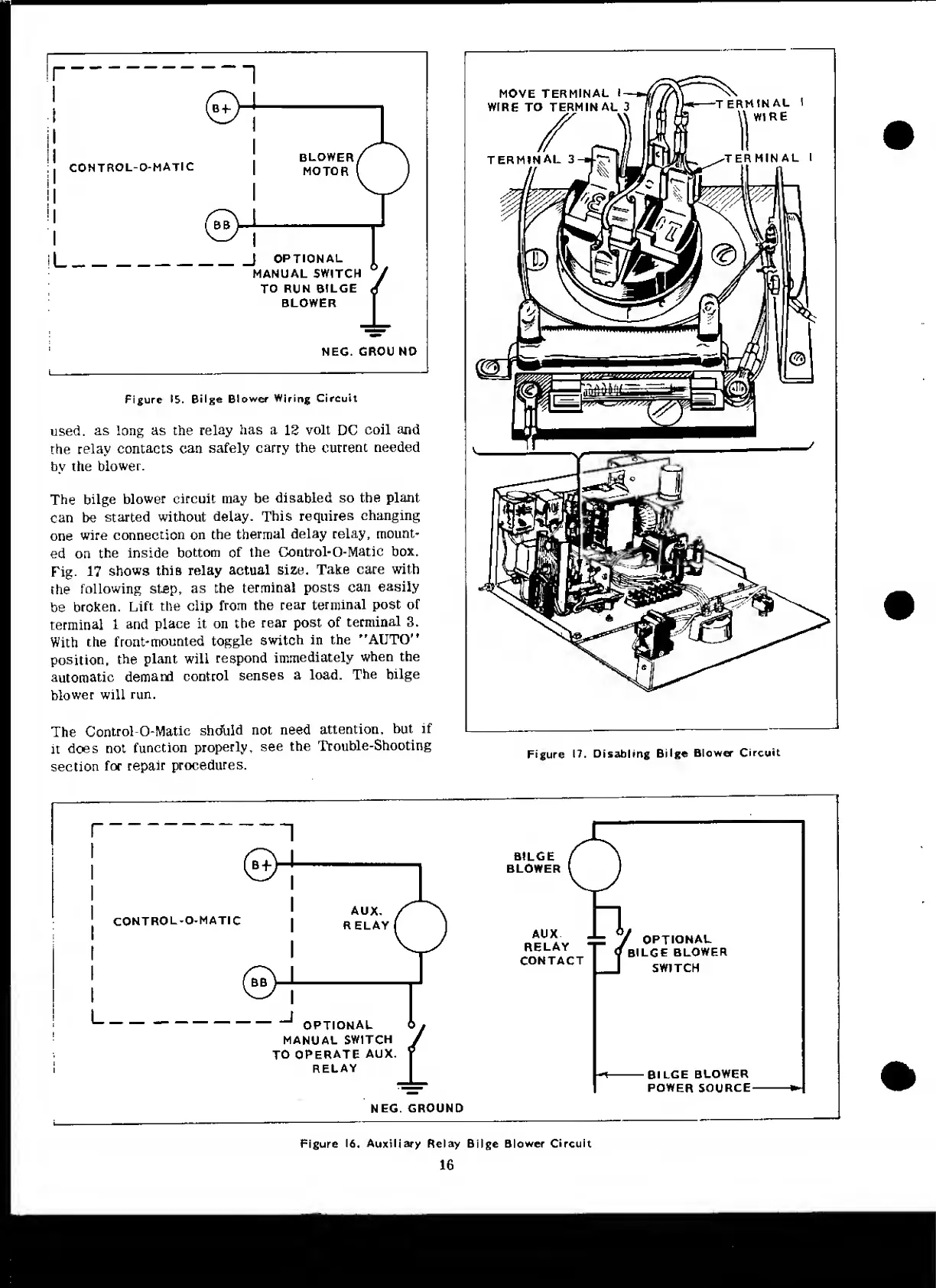

Figure 15. Bilge Blower Wiring Circuit
used, as long as the relay has a 12 volt DC coil and
the relay contacts can safely carry the current needed
by the blower.
The bilge blower circuit may be disabled so the plant
can be started without delay. This requires changing
one wire connection on the thermal delay relay, mount¬
ed on the inside bottom of the Control-O-Matic box.
Fig. 17 shows this relay actual size. Take care with
the following step, as the terminal posts can easily
be broken. Lift the clip from the rear terminal post of
terminal 1 and place it on the rear post of terminal 3.
With the front-mounted toggle switch in the "AUTO”
position, the plant will respond immediately when the
automatic demand control senses a load. The bilge
blower will run.
The Control-O-Matic shcfuld not need attention, but if
it does not function properly, see the Trouble-Shooting
section for repair procedures.
Figure 17. Disabling Bilge Blower Circuit
Figure 16. Auxiliary Relay Bilge Blower Circuit
