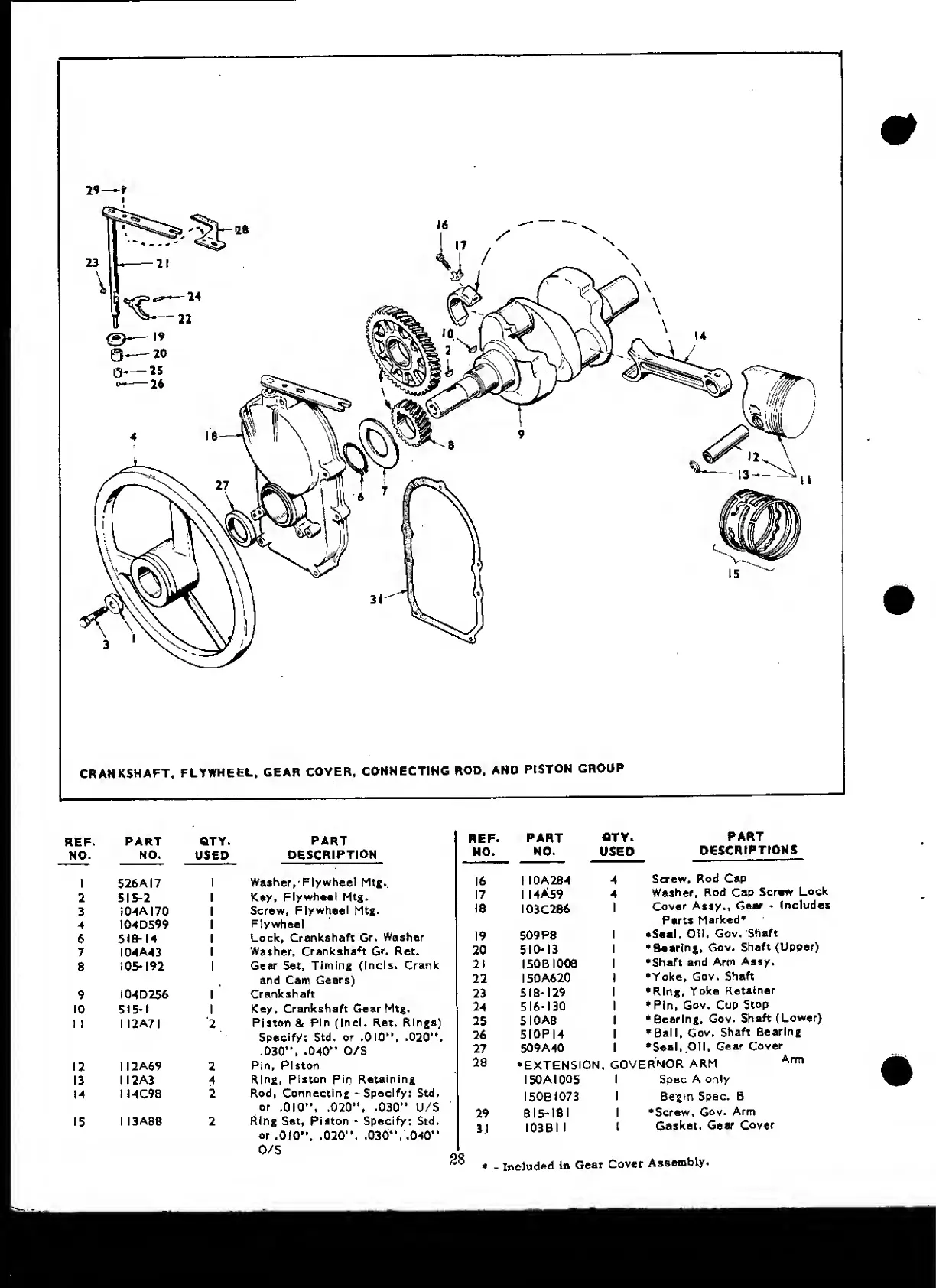

Onan MCCK - Page 29

REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
1 S26AI7
1 Washer, Flywheel Mtg.
2 515-2
1
Key, Flywheel Mtg.
3
S04AI70 1
Screw, Flywheel Mtg.
4 I04D599 1
Flywheel
6
5(8-14 1
Lock, Crankshaft Gr. Washer
7 I04A43
1
Washer, Crankshaft Gr. Ret.
S
105-192 1
Gear Set, Timing (Incls. Crank
and Cam Gears)
9
I04D256 1
Crankshaft
10
515-1
1
Key, Crankshaft Gear Mtg.
1 1 1 I2A7I 2
Piston & Pin (In cl - Ret. Rings)
Specify: Std. or .010", .020",
.030", .040" O/S
12
1 1 2A69 2
Pin, Piston
13 1 I2A3
4
Ring, Piston Pin Retaining
14 1 I4C98
2
Rod, Connecting - Specify: Std.
or .010", .020", .030" U/S
15
1 13 ABB 2
Ring Set, Piston - Specify: Std.
or .010”, .020". .030", .040"
0/S
REF.
PART
OTY.
PART
NO. NO. USED
DESCRIPTIONS
16
1I0A284 4
Screw. Rod Cap
17
1 I4A59
4
Washer, Rod Cap Screw Lock
18 I03C286
1
Cover Assy., Gear - Includes
Parts Marked*
19
509 P8
1
•Seal, Oil, Gov. Shaft
20
510-13
1
•Bearing, Gov. Shaft (Upper)
21 1 SOB 1008
1
•Shaft and Arm Assy.
22
I50A620 1
•Yoke, Gov. Shaft
23
518-129 1
•Ring, Yoke Retainer
24
516-130
1
* Pin, Gov. Cup Stop
25
5I0A8
1
•Bearing, Gov. Shaft (Lower)
26 5I0PI4
1
•Ball, Gov. Shaft Bearing
27
509A40 1
•Seal, Oil, Gear Cover
28
•EXTENSION
, GOVERNOR ARM Arm
I50AI005
1 Spec A only
I50BI073
1
Begin Spec. B
29 815-181
1
•Screw, Gov. Arm
31
I03BI1
l
Gasket, Gear Cover
28
- Included in Gear Cover Assembly.
