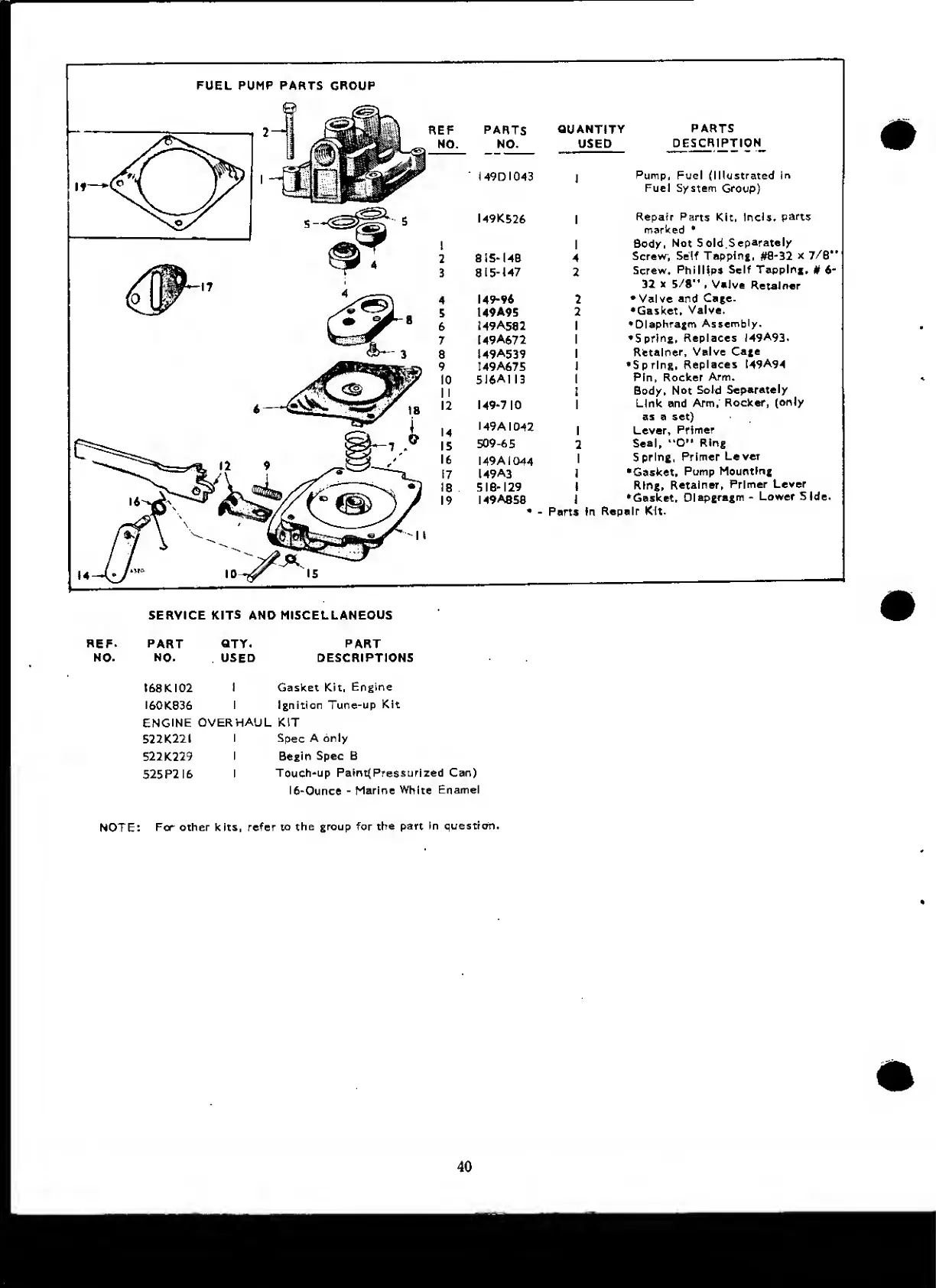

Onan MCCK - Page 41

FUEL PUMP PARTS GROUP
3b*-- 3
12 9
f\
PARTS
NO.
I 49 D 1043
U9K526
8 15- MB
8 i 5-147
149-96
149A95
149A582
149A672
149A539
I49A675
5 J6A1 13
M9-7I0
M9AI042
509-65
149 A 1044
M9A3
518-129
M9A858
QUANTITY PARTS
USED DESCR I P TION
j Pump, Fuel (Illustrated In
Fuel System Group)
I Repair Parts Kit, tncls. parts
marked •
1 Body, Not Sold Separately
4 Screw, Self Tapping, #8-32 x 7/6"'
2 Screw. Phillip* Self Tapping. # 6-
32 x 5/8" , Valve Retainer
2 • Valve and Cage.
2 ‘Gasket, Valve.
| ‘Diaphragm Assembly.
I ‘Spring, Replaces M9A93.
I Retainer, Valve Cage
| ‘Spring, Replaces I49A94
| Pin, Rocker Arm.
1 Body. Not Sold Separately
| Link and Arm, Rocker, (only
as a set)
1 Lever, Primer
2 Seal, “O” Ring
| Spring, Primer Lever
1 ‘Gasket, Pump Mounting
| Ring, Retainer, Primer Lever
| ‘Gasket, Olapgragm - Lower Side.
• - Ports In Repair Kit.
SERVICE KITS AND MISCELLANEOUS
PART QTY. PART
NO. USED DESCRIPTIONS
I68KI02 I Gasket Kit, Engine
I60K836 I Ignition Tune-up Kit
ENGINE OVERHAUL KIT
522K22I I Spec A only
522K229 I Begin Spec B
525P2I6 I Touch-up Paint(Pressurized Can)
16-Ounce - Marine White Enamel
NOTE: Fa- other kits, refer to the group for the part In question.
