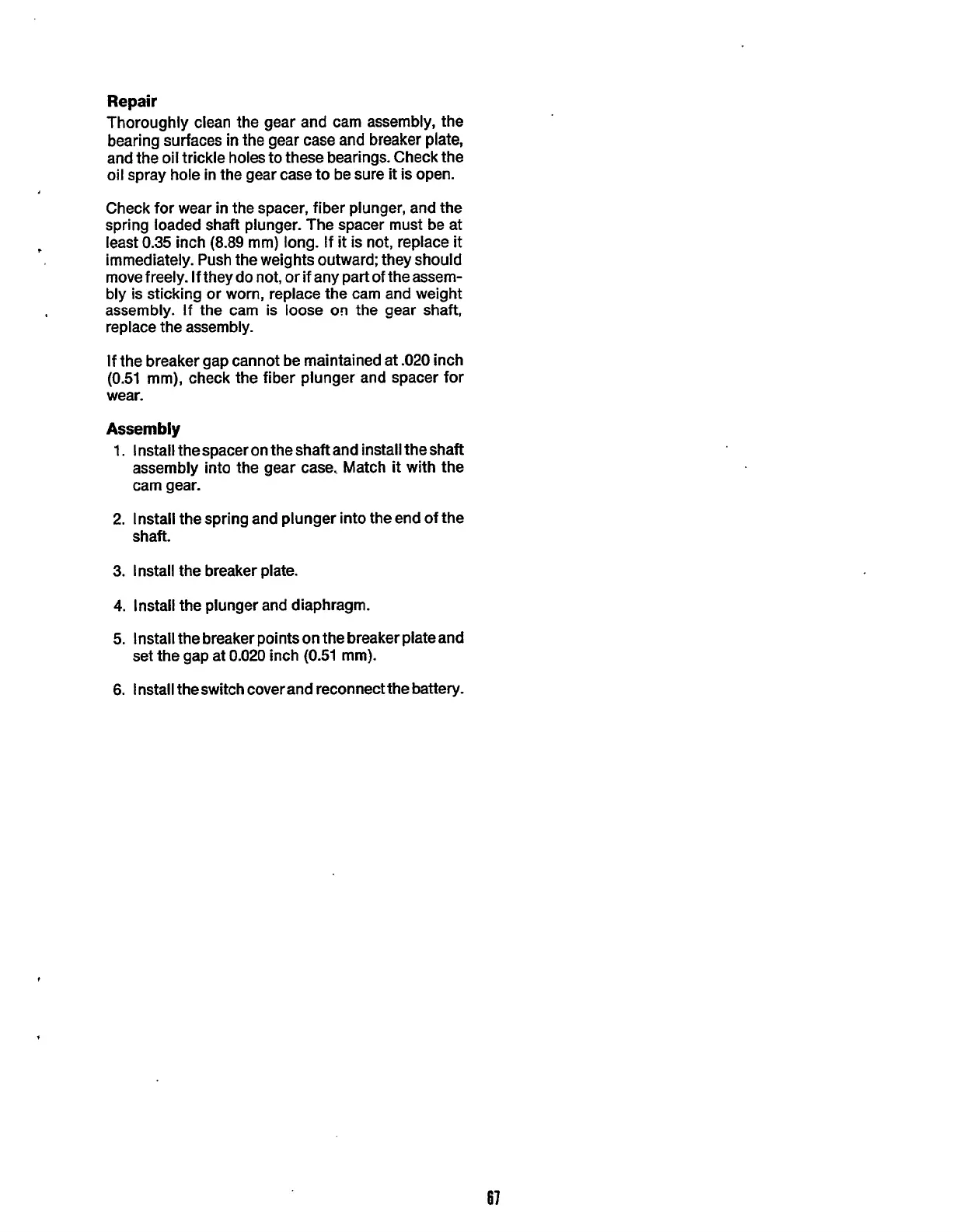

Repair
Thoroughly clean the gear and cam assembly, the
bearing surfaces
in
the gear case and breaker plate,
and the oil trickle holes to these bearings. Check the
oil spray hole in the gear case to be sure
it
is open.
Check for wear in the spacer, fiber plunger, and the
spring loaded shaft plunger. The spacer must be at
least
0.35
inch
(8.89
mm) long.
If
it
is not, replace
it
immediately. Push the weights outward; they should
move freely. If they do not,
or
if any part of the assern-
bly
is
sticking or worn, replace the cam and weight
assembly.
If
the cam
is
loose
on
the gear
shaft,
replace the assembly.
If
the breaker gap cannot be maintained at
.020
inch
(0.51
mm), check the fiber plunger and spacer for
wear.
Assembly
1.
Install thespacer on the shaft and install the shaft
assembly into the gear case, Match
it
with the
cam gear.
2.
Install the spring and plunger into the end of the
shaft.
3.
Install the breaker plate.
4.
Install the plunger and diaphragm.
5. Install the breaker pointson the breaker plateand
6.
Install the switch cover and reconnect the battery.
set the gap at
0.020
inch
(0.51
mm).
67
