Onan MEP-003A - Page 40

TM5-6115-585-34
NAVFAC P - 8-262-12
TO - 35C2-3-455-2
TM
- 05684C
- 34
( 2 ) Tag and disconnect battery cables and ground
cable from starter .
( 7) Disconnect and remove fuel tank .
( 3 ) Tag and disconnect wiring harness and elec
trical leads from engine
.
( 8 ) Disconnect speed adjustment assembly ( see
figure 2-1 ) . Loosen nut ( 1 ) and lockwasher ( 2) and
slide from bracket ( 5 ) .
( 4 ) Disconnect air cleaner hoses from shutter
assembly and intake manifold . Remove air cleaner
and bracket assembly from top of generator .
(
9
)
Connect
a
suitable
lifting
device
and
support
engine
.
( 5 ) Disconnect fuel line from fuel filter at fuel
check valve . Disconnect flexible fuel return line to
top
of
fuel
injection
pump
.
(
10
)
Disconnect
engine
from
generator
assembly
.
See
figure
2-2
.
( 6 ) Disconnect oil drain hose from mounting on
skid - base and drain oil .
(
a
)
Remove
generator
screen
-
guard
.
Refer
to
Operator
and
Organizational
Maintenance
Manual
.
3 5
(
una
-0
al 12
otto
1.
Nut
2.
Lockwasher
3.
Speed
control
4.
Control
cable
5.
Bracket
TS
6115-585-34
/
2-1

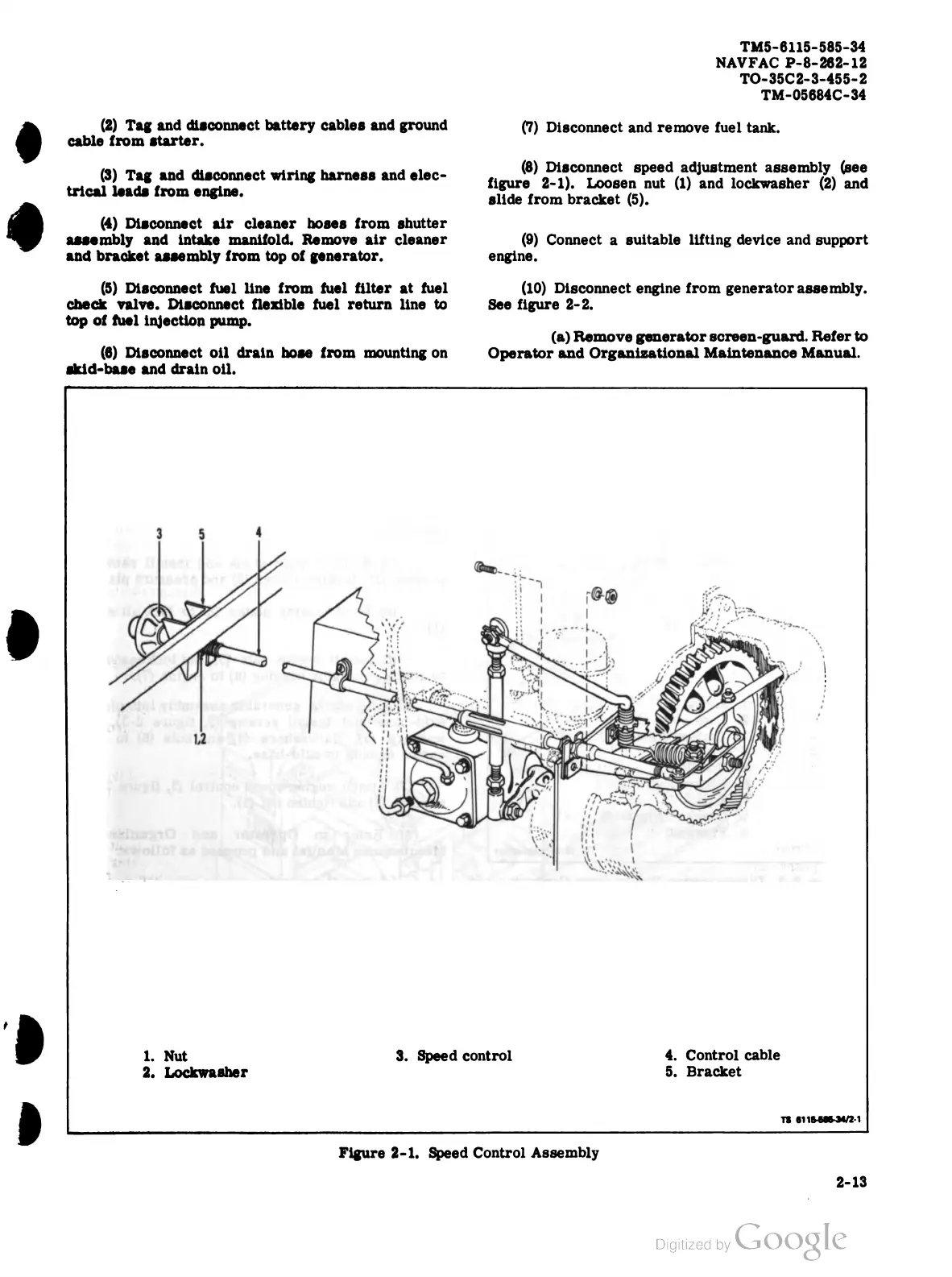

Figure 2-1 . Speed Control Assembly
2-13
