D
D
II
II

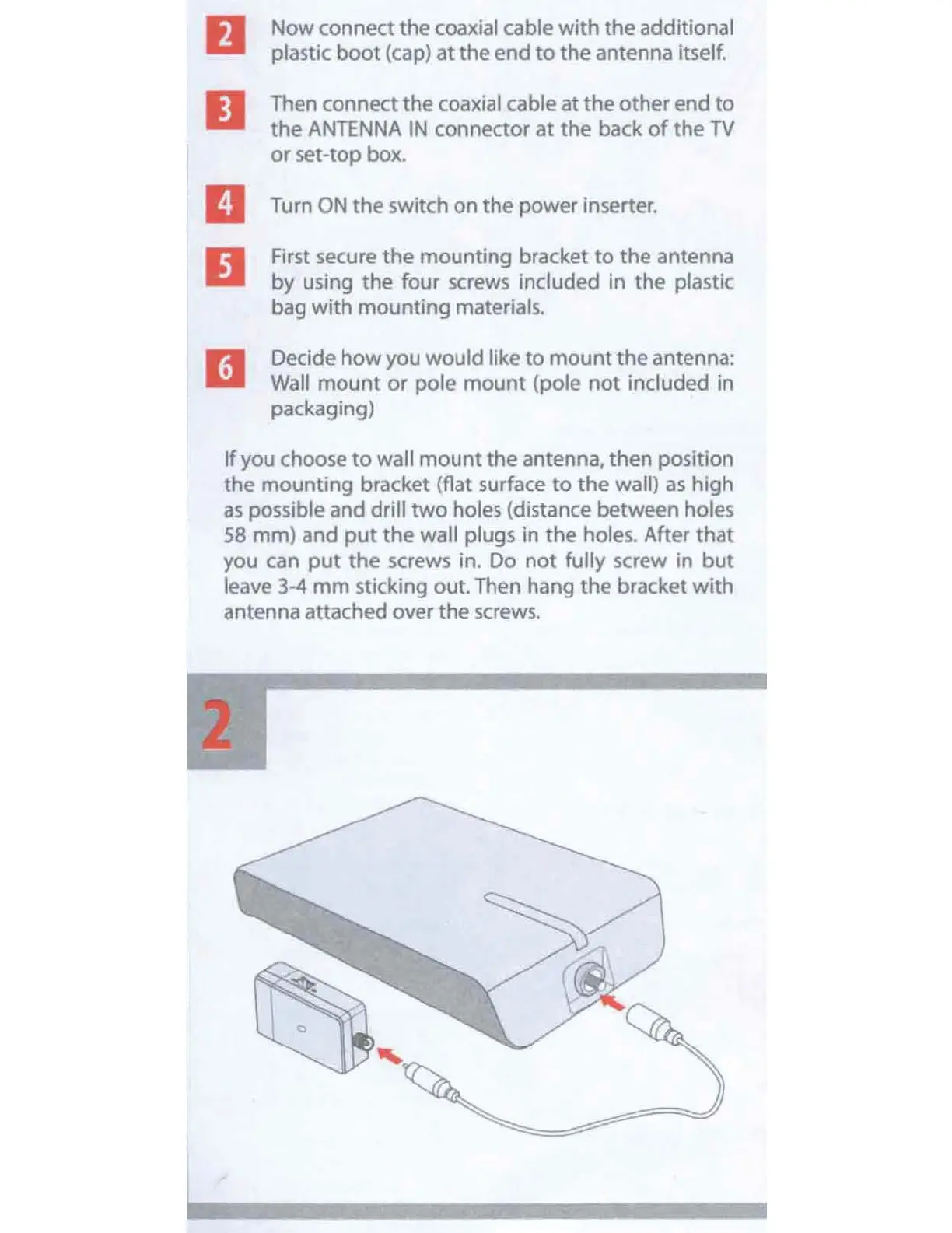

Now
connect the coaxial cable
with
the additional
plastic
boot
(cap)
at
the end
to
the
antenna itself.
Then connect
the
coaxial cable
at
the
other end
to
the
ANTENNA
IN
connector
at
the
back
of
the TV
or
set-top box.
Turn
ON
the switch
on
the
power
inserter.
First secure
the
mounting
bracket
to
the
antenna
by
using
the
four screws included in
the
plastic
bag
with
mounting
materials.
Decide
how
you
wou
'ld like
to
mount
the
antenna:
Wall
mount
or
pole
mount
(pole
not
included
in
packaging)
If
you choose
to
wall
mount
the
antenna,
then
position
the mounting bracket {flat surface
to
the
wall)
as
high
as
possible and drill
two
holes (distance between holes
58 mm) and
put
the
wall plugs In
the
holes. After
that
you
can
put
the
screws in. Do
not
fully screw in
but
leave 3-4
mm
sticking out. Then hang
the
bracket
with
antenna attached over
the
screws.
