ONE COYOTE T - Page 6

6
OWNER’S MANUAL
Tilt Wheelchair
3.3 Abductor

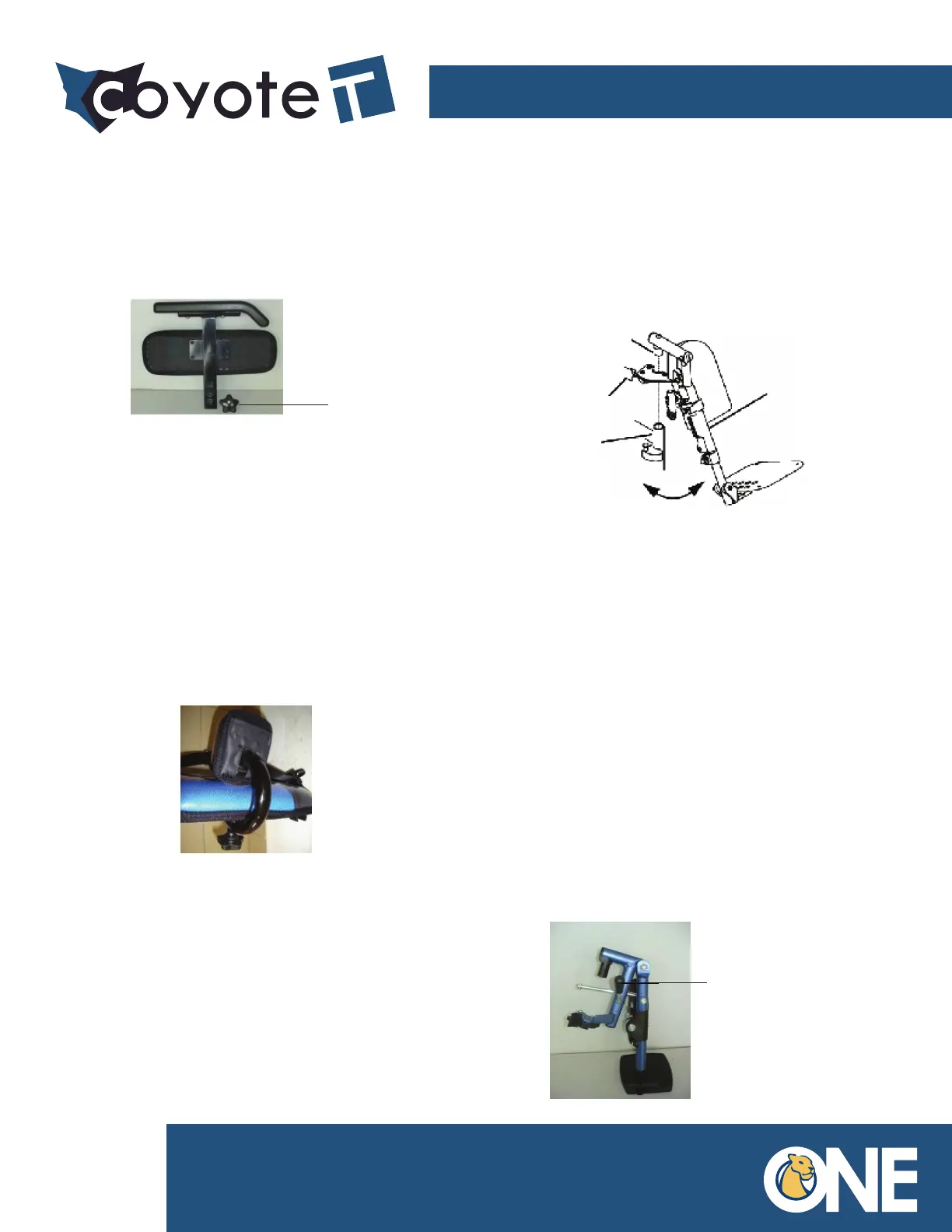

NOTE: For this procedure, refer to
Figure 6.
The abductor is used to prevent the
user pitching because of inertia.
To install or remove the abductor
please use the adjust knob.
3.3 Detachable footrest
NOTE: For this procedure, refer to
Figure 7.
Removing: Unscrew the control
handle, then swing the footrest
outward. Pull up the footrest until it
clears the pin.
Installing: Put the pin into the hole
from side, then swing the footrest
until it is locked into place on the
chair frame.
3.4. Raise/Lower the footrest
NOTE: For this procedure, refer to
Figure 8.
Raising: Pull up the footrest vertically
to the position you want.
Dropping: Hold the footrest and
push the control handle toward the
rear wheel of the wheelchair at the
same time. The footrest will drop
down automatically. Release the
handle after you finish the
adjustment.
Figure 5
Figure 6
Figure 7
adjust its height. After any
adjustment, make sure the knobs
are fixed.
Adjust knob
Pin
Control
handle
Pin hole
Footrest
Figure 8
Control
handle
