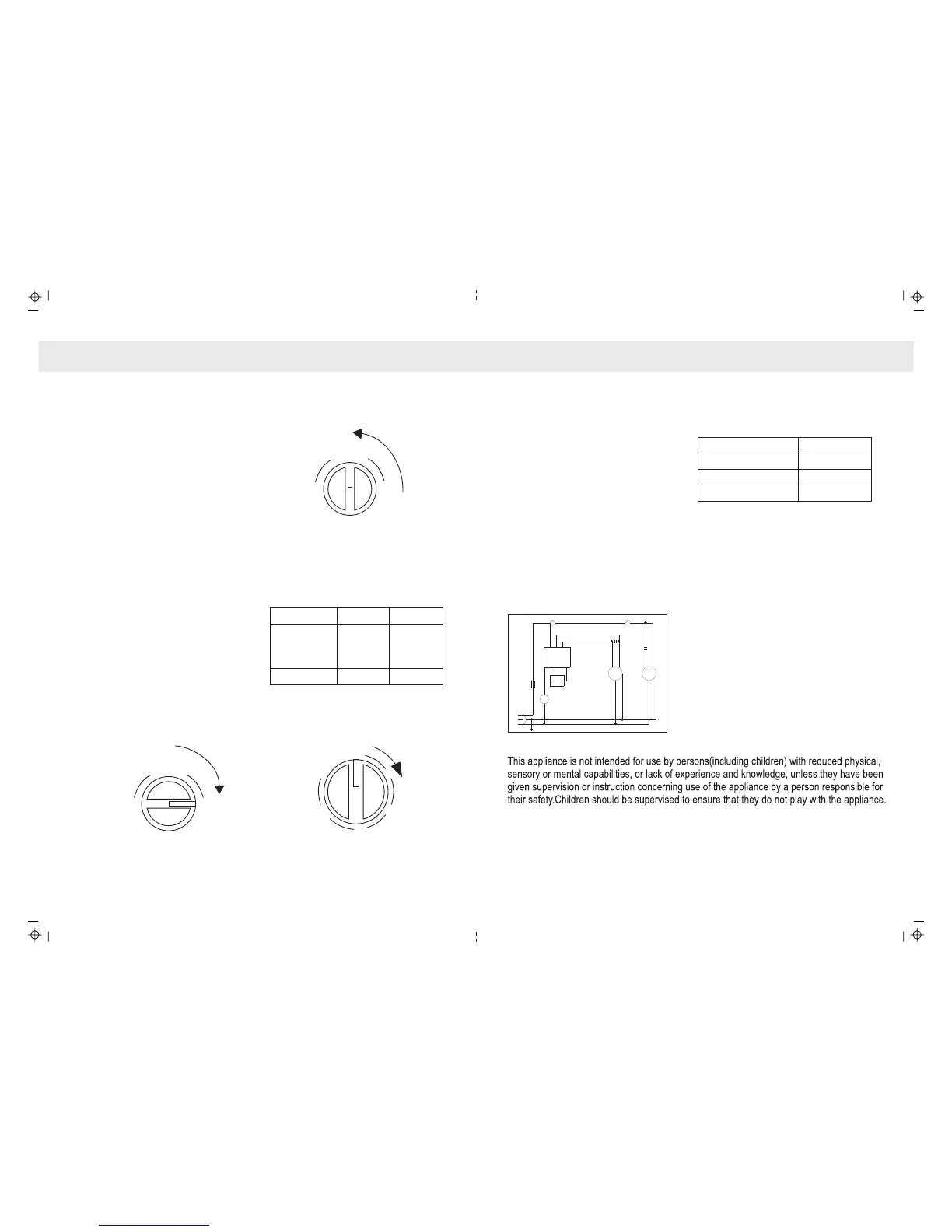

! Set the WASH-DRAIN
SELECT"knob to "NOrmal/Gentle"
position according to the program
selected. To select the recommended
program for different fabric types,
please refer to the table on right.
! Turn on the water faucet. Let water
flow into the tub according to the
amount of clothing to be washed. The
marks H, M, L in tub are for High,
Medium, Low water levels, respectively.
! Add proper amount of detergent.
! Put clothes in the wash tub, one
article at a time.
! Turn the "WASH TIMER" knob
clockwise to the desired wash time.
The washing action will begin.
! After washing is completed, drain the
water by setting the "WASH-DRAIN
SELECT" knob to the "Drain"Position.
"
WASH-DRAIN SELECT
Drain
Normal
Gentle
15
12
9
6
3
0
WASH TIMER
Operating Instructions
Wash Action
Gentle
Normal
Fabric Type
Synthetics
Woollens
Linen
Cottons
Work clothes
Washing Time
3-5 min 5-12 min
8
WASHING
WASH-DRAIN SELECT
Drain
Normal
Gentle
9
SPIN DRYING
! Transfer the clothing to the spin drier
tub and place the spinner cap on top of
the clothing.
! Close the inner and outer
spin-drier lids.
! Turn the "SPIN TIMER" knob
clockwise to the desired dry time.The
spin dry process will begin.
No action should be initiated to change the internal circuitry
(circuit diagram given below).
Operating Instructions
Type of the clothes
Spin-drying time
Shirts (synthetic)
1 -2 min
Undershirts 3 -5 min
Work clothes
5 min
BR OW N
N
L
YE LL OW -G RE EN
E
BL UE
FU SE
RE D
RE D
GR EE N
YE LL OW
WA SH M OT OR
SP IN T IM ER
C1
BL UE
WA SH /D RA IN S WI TC H
WA SH T IM ER
GR EY
~
BL AC K
YE LL OW
M
1
YE LL OW
MI CR O- SW IT CH
GR EE N
RE D
YE LL OW
C2
~
SP IN M OT OR
BL AC K
YELLOW-GREEN
YELLOW-GREEN
M
BL UE
2
BR OW N
BR OW N
BROWN
GR EY
BL UE
BUZ ZE R
