The Omega2 is a compact, versatile computing device designed for various applications, from IoT projects to embedded systems. It functions as a small, Linux-based computer, offering Wi-Fi connectivity and a range of I/O options, making it suitable for tasks requiring network access, data processing, and interaction with external hardware. The device is typically used in conjunction with a "Dock," which provides power, expands connectivity, and simplifies its integration into projects.

Function Description

The Omega2's primary function is to provide a miniature, low-power computing platform with integrated Wi-Fi capabilities. It runs a Linux operating system, allowing users to execute custom code, manage network connections, and interact with hardware peripherals. It acts as a central processing unit for various applications, enabling tasks such as data logging, remote control, sensor monitoring, and network bridging. The integrated Wi-Fi allows it to connect to existing wireless networks or host its own access point, facilitating communication with other devices and the internet.

Usage Features

The setup process for the Omega2 is designed to be user-friendly, particularly for first-time users.

Initial Setup and Connection:

To begin using the Omega2, it must first be properly connected to a Dock. The Omega2 module plugs directly into a socket on the Dock, ensuring that its pins are fully seated for a secure connection. This physical connection is crucial for the device to receive power and access the Dock's expanded functionalities.

Powering the Device:

The Omega2 itself operates on a 3.3V source. However, all Omega Docks incorporate voltage regulators, allowing the entire assembly to be powered using a standard microUSB cable. This offers flexibility, as the device can be powered either by connecting it to a computer's USB port or by using a wall adapter with a microUSB output. Once connected to a power source, the Omega2 is turned on using a physical switch located on the Dock.

Boot Sequence and Status Indication:

Upon powering on, the Omega2 initiates its boot sequence. An amber LED on the device serves as a visual indicator of its status. Initially, the LED will turn on and then begin blinking after approximately 10 seconds. After about a minute, the LED will stop blinking and remain solid, signifying that the Omega2 has successfully completed its boot process and is ready for use. In some cases, the amber LED might turn on and remain solid from the start; in such instances, waiting for about a minute is sufficient to confirm that the device has booted.

Computer Configuration for Access:

To interact with the Omega2 through a web browser, some preliminary computer configuration might be necessary depending on the operating system.

Windows users need to install Apple's Bonjour Service to enable network discovery.
OS X users are typically ready to go, as the necessary services are usually pre-installed.
Linux users will likely find that Zeroconf services are already installed, allowing for immediate access.

Identifying the Omega's Name:

Before proceeding with network configuration, it's important to identify the Omega2's unique name. This name is derived from its MAC address, which is printed on a sticker on the Omega2's shielding. Specifically, the last four digits of the MAC address (e.g., ABCD in Omega-ABCD) form part of its default hostname. For example, if the MAC address ends in 5931, the Omega's name will be Omega-5931.

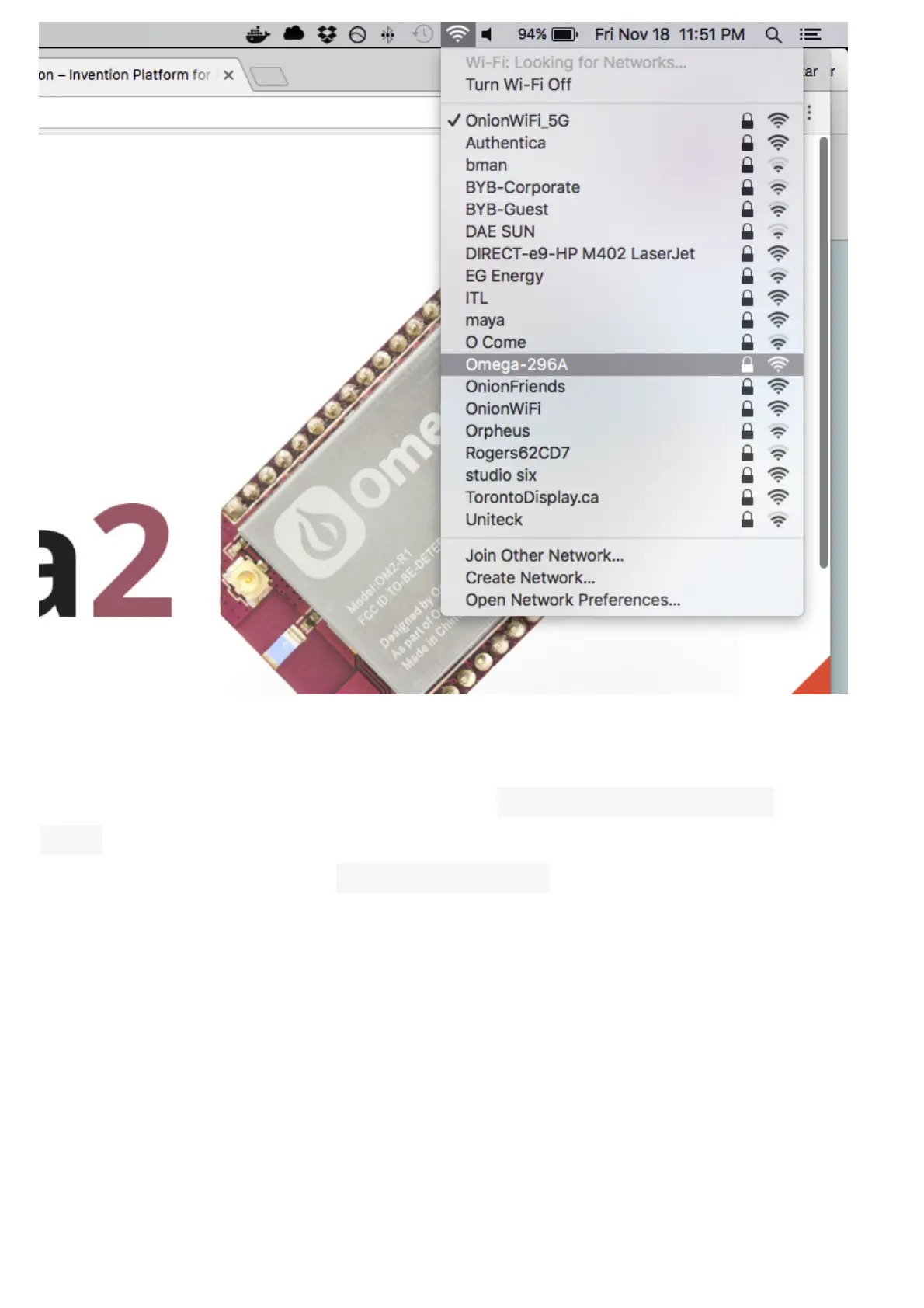

Connecting to the Omega's Wi-Fi Network:

The Omega2 hosts its own Wi-Fi network access point, allowing direct connection from a computer. The name of this Wi-Fi network is the same as the Omega's name (e.g., Omega-5931), and the default password for this network is "12345678". Users connect their computer to this network to access the device's setup wizard.

The Setup Wizard:

Once connected to the Omega's Wi-Fi network, users can access the Setup Wizard through a web browser. This is done by navigating to http://omega-ABCD.local/ (replacing ABCD with the last four digits of the Omega's MAC address) or, if that fails, to http://192.168.3.1.

Login and Network Configuration:

The Setup Wizard begins with a login screen. The default credentials are "root" for the username and "onioneer" for the password. After logging in, users are prompted to connect the Omega2 to a wireless network. This step is mandatory to complete the setup wizard. Users select their desired Wi-Fi network from a list of detected networks, enter the network's SSID, security type, and password, and then click "Configure WiFi." The Omega2 will then attempt to connect to the specified network, a process that can take up to a minute. During this connection, the Omega's access point will temporarily go down and become inaccessible but will return once the configuration is complete.

Cloud Registration (Optional):

Following network configuration, the wizard offers an optional step to register the Omega2 on the Onion Cloud. This allows for remote management, control, access to the Cloud Compile service, and interaction with various applications. Users can choose to register immediately or skip this step and do it later.

Firmware Upgrade and Console Installation:

The final step in the setup wizard involves upgrading the Omega2's firmware and installing the Onion Console. Users click the "Upgrade Firmware and Install Console" button to initiate this process. The Onion Console is a web-based virtual desktop that provides an interface for changing settings and serves as an Integrated Development Environment (IDE). Users have the option to deselect the Console installation if they prefer not to install it at this time, as it can always be installed later through the setup wizard. The firmware download and installation process takes several minutes, with the duration depending on the internet connection speed. During this update, it is crucial not to unplug the Omega2.

Completion and Reboot:

Once the firmware installation is complete, the Omega2 will automatically reboot. The device will be ready for use when its LED stops flashing and remains solid, indicating that the boot sequence and configuration are finalized.

Maintenance Features

Troubleshooting:

The manual emphasizes the importance of troubleshooting if issues arise during the setup process. A dedicated troubleshooting guide is available to help users resolve common problems.

Manual Reboot for Certain Models:

For some Omega2+ models, automatic reboot after firmware updates might not occur. If the LED turns off and remains off for more than 15 seconds after the update page is displayed, users will need to manually reboot the Omega. This can be done by toggling the power switch on the Dock or by briefly disconnecting and reconnecting the power source. After a manual reboot, the Omega2+ will complete the upgrade and be ready for use once its LED stops flashing and remains solid.

Reinstalling Console:

If the Console was initially skipped during the setup, it can always be installed later by revisiting the setup wizard.

Alternative Setup Method:

In cases where the Setup Wizard fails to get the Omega2 up and running, an alternative method using the Command Line guide is provided, along with the comprehensive Troubleshooting guide.

In summary, the Omega2 is a powerful yet accessible device designed for a wide range of computing tasks, particularly in connected environments. Its user-friendly setup wizard, flexible power options, and clear status indicators make it approachable for both beginners and experienced users, while its robust features support complex projects. Regular firmware updates and the option for cloud integration ensure its continued functionality and expand its capabilities over time.
