Installation
1. DIN FRONT-MOUNT (Method A)

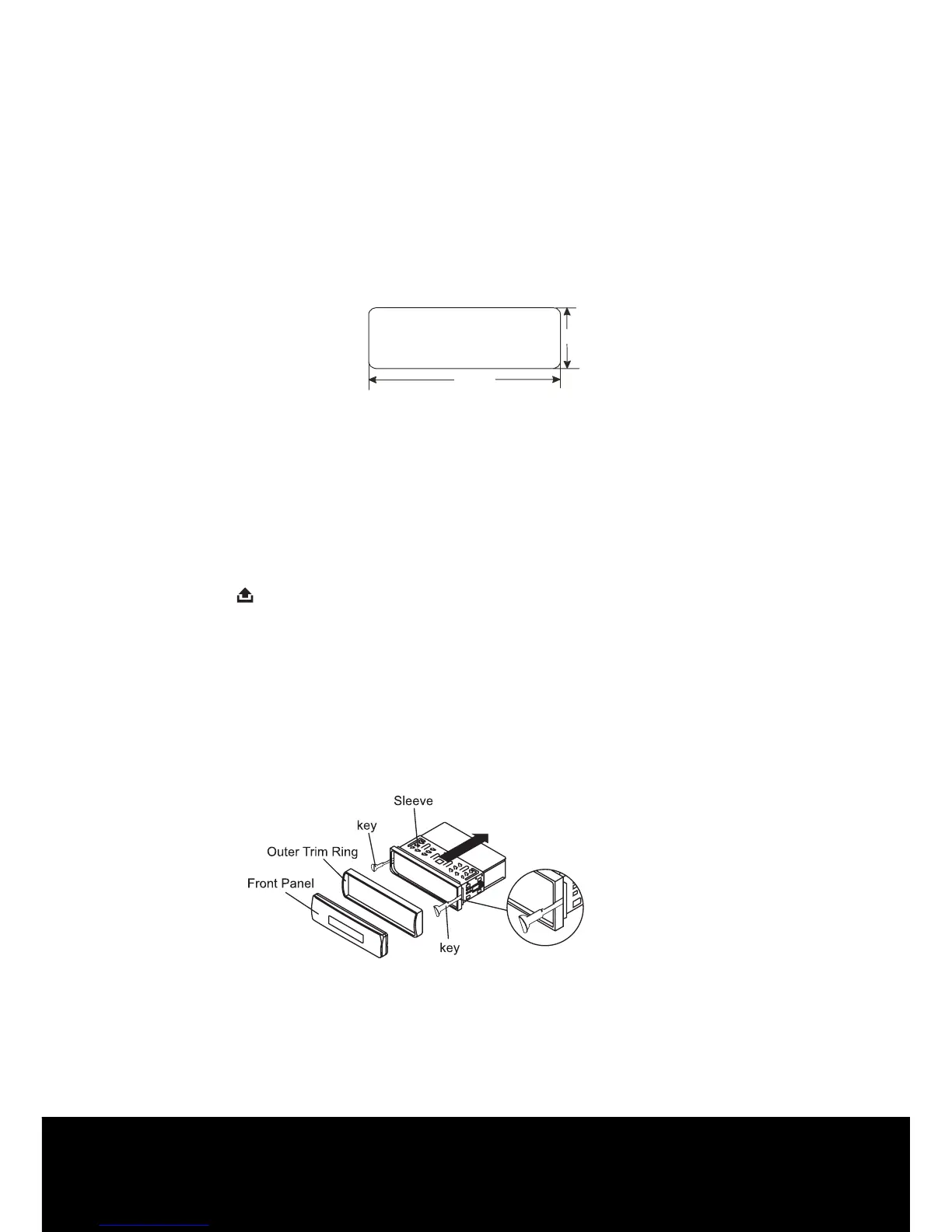

Installation Opening
This unit can be installed in any dashboard having an opening as
shown below:
Installing the unit:
Be sure you test all connections rst, and then follow these steps to
install the unit.
1. Make sure the ignition is turned o, and then disconnect the cable
from the vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Press the button on the front panel and remove the control panel
(For details, refer to ‘using the detachable front panel’).
4. Lift the top of the outer trim ring then pull it out to remove it.
5. The two supplied keys release tabs inside the unit’s sleeve so you
can remove it. Insert the keys as far as they will go (with the notches
facing up) into the appropriate slots at the middle left and right
sides of the unit. Then slide the sleeve o the back of the unit.
53mm
182m m
WARNING: This unit must be installed by a professional
technician only or the warranty will be void.
