Onkyo C-S5VL Service Manual

C-S5VL

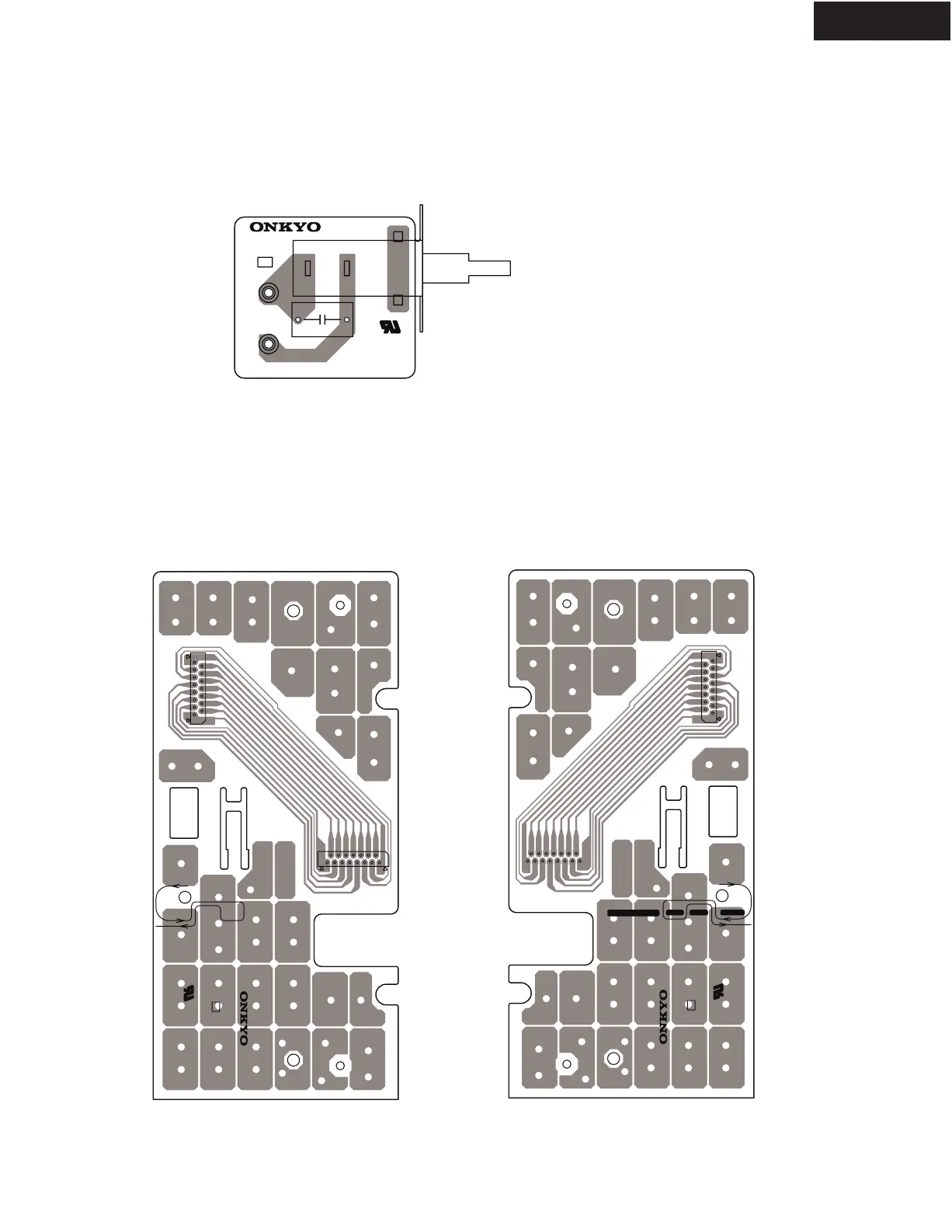

PRINTED CIRCUIT BOARD VIEW
U005 : POWER SWITCH PC BOARD (BASW-0256-1A)
U004 : CONNECTION PC BOARD (BAETC-0255-1A)
Soldering side view
Soldering side view Component side view
P1201B
P1204
PARTS SIDE
MAIN PWB
PICK
SLD+
SLD-
SSW
GND
H+
H-
H3+
H3-
H2+
H2-
H1+
H1-
U-A1
V-A2
W-A3
BCETC-0255
25140255
1
V-A2
H1-
H2-
H3-
H-
GND
SLD-
W-A3
U-A1
H1+
H2+
H3+
H+
SSW
SLD+
C901
P92B
P92C
S901
25140256
1
BCSW-0256
WHITE
BROWN
PARTS SIDE
MAIN PWB
PICK
BCETC-0255
25140255
1
SLD-
GND
H-
H3-
H2-
H1-
V-A2
W-A3
U-A1 H1+ H2+
H3+
H+
SSW
SLD+

Onkyo C-S5VL Specifications

General

Frequency range	4 - 50000 Hz
Audio formats supported	MP3, WMA
Total Harmonic Distortion (THD)	0.0025 %
Built-in speaker(s)	No
CD-RW playback	Yes
Device type	HiFi CD player
Product color	Silver
Disc loading type	Tray
Number of optical discs	1 discs
Volume control	Rotary
Headphone outputs	1
Power consumption (typical)	16 W
Package depth	448 mm
Package width	562 mm
Package height	212 mm
Package weight	7000 g

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	80 mm
Weight	4500 g
