D-062AX(W)

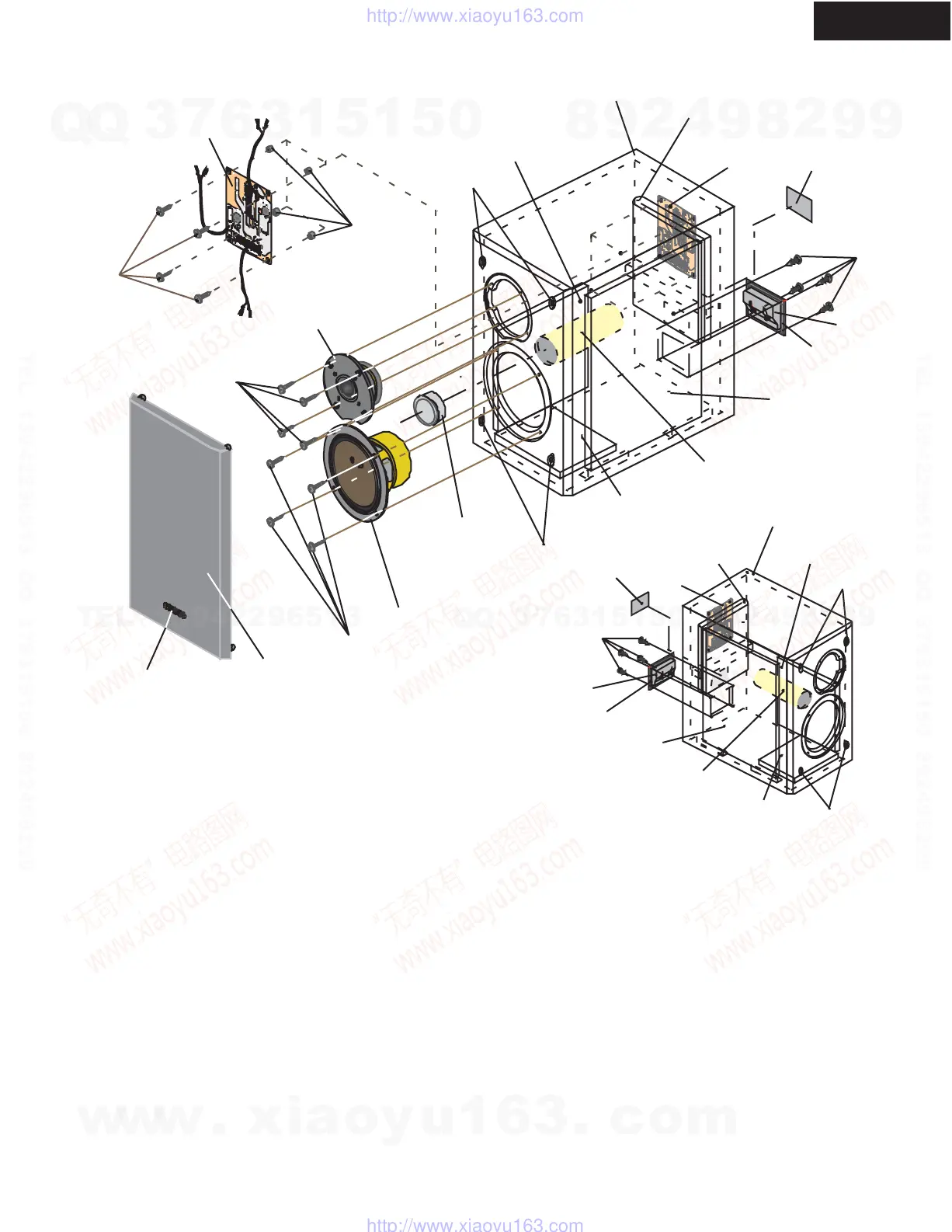

Exploded view
A 6
PACKING
A13
A 7
A 6
PACKING
PAPER
DUCT
Absorbent Sponge
HRK08(10t x150x240)
This Sponge Arrange
Symmetrically.
-
A 9
A13
A 3
A 4
A 1
A 8
A 5
A 8
A12
A10
A12
A 9
A11
Part No.
505-D-062AXWR
505-D-062AXWL
W1343A
TW3158C
903-GD-062AXW
203-TST-S14B
610-D-062AX
429-1C-638(WS1023 )
190-D-062AX
400-D-032A
300-B2401400
300-B8402000
300-F8351600
Q'ty
1
1
2
2
2
2
2
8
2
2
8
16
8
DESCRIPTION
CABINET (R ch) - Assy
CABINET (L ch) - Assy
WOOFER UNIT
TWEETER UNIT
CLOTH FRAME- Assy
TERMINAL
RATING LABEL
CATCHER
NETWORK - Assy
BADGE
SCREW 4.0 X 14 ( for NET WORK )
SCREW 4.0 X 20 ( for SP UNIT)
SCREW 3.5 X 16 ( for TERMINAL )
No.
A 1
A 2
A 3
A 4
A 5
A 6
A 7
A 8
A 9
A 10
A 11
A 12
A13
REMARKS
With Logo Badge
BLK Bind Head
BLK Bind Head
BLK Flat Head
PARTS LIST
NOTE
CABINET AS PARTS
CABINET+ PLASTIC DUCT+ PAPER DUCT+ ABSORBENT
4pcs.
NET Assy
CLOTH FRAME+ BADGE
Absorbent Sponge
HRK08(10t x120 x 80)
Absorbent Sponge
HRK08 (10t x150x240)
Stick the Sponge Folded
into two leaves on the
backside board of Center.
Absorbent Sponge
HRK08(10t x150 x120)
This Sponge Arrange
Symmetrically.
PLASTIC
DUCT
Woofer
Tweeter
Input
Terminal
PC HOLDER
A 7
A 2
A 8
A 8
Absorbent Sponge
HRK08(10t x120 x 80)
Absorbent Sponge
HRK08(10t x150x240)
Stick the Sponge Folded
into two leaves on the
backside board of Center.
Absorbent Sponge
HRK08(10t x150 x120)
This Sponge Arrange
Symmetrically.
PAPER
DUCT
Absorbent Sponge
HRK08(10t x150x240)
This Sponge Arrange
Symmetrically.
