DX-C201
b> Conteh
Ref
No.

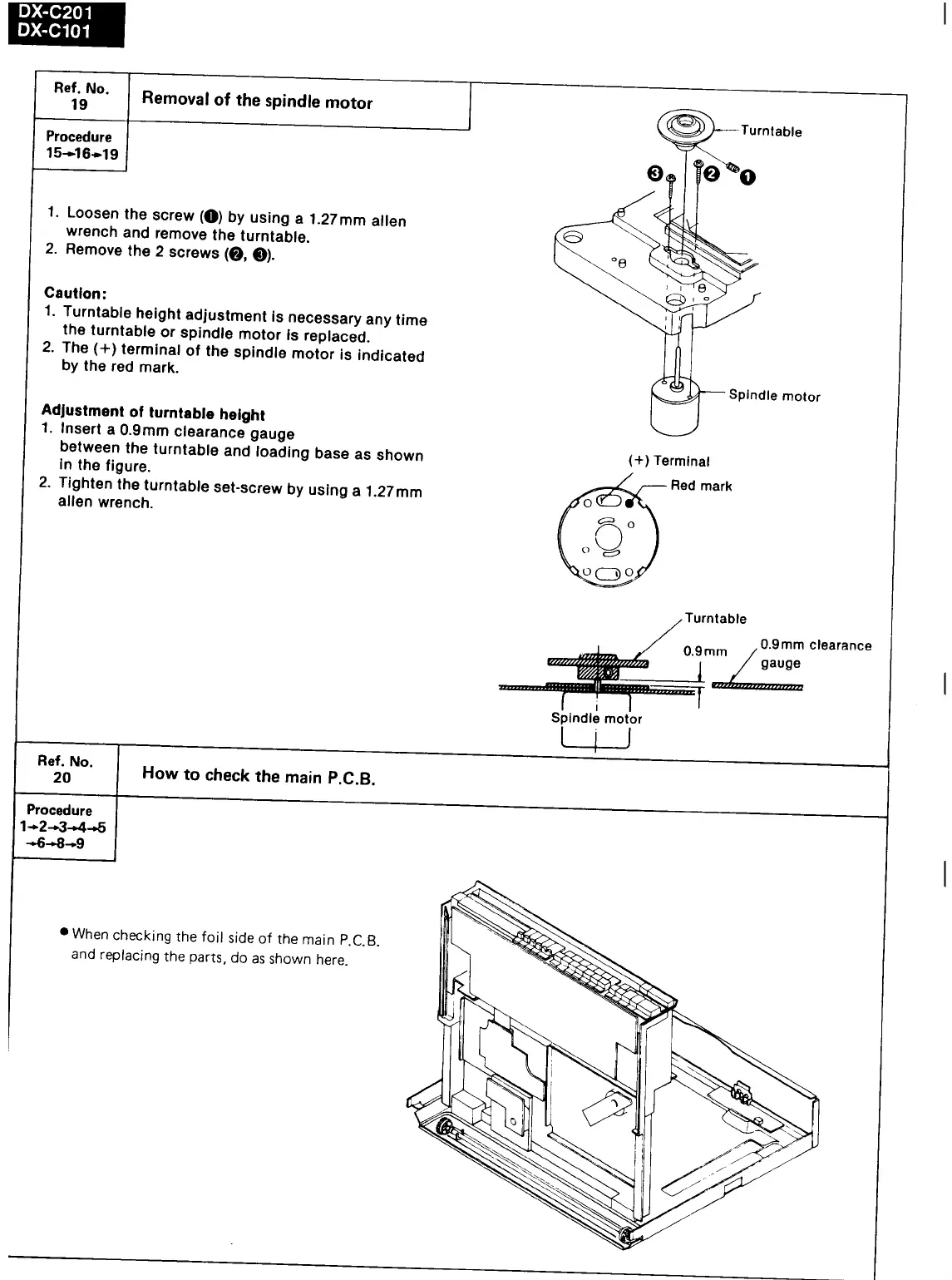

Removal
of
the
spindle
motor
Procedure
15-16-2519
1.
Loosen
the
screw
(@)
by
using
a
1.27mm
allen
wrench
and
remove
the
turntable.
2.
Remove
the
2
screws
(O,
©).
Caution:
1.
Turntable
height
adjustment
is
necessary
any
time
the
turntable
or
spindle
motor
is
replaced.
2.
The
(+)
terminal
of
the
Spindle
motor
is
indicated
by
the
red
mark.
Adjustment
of
turntable
height
1.
Insert
a
0.9mm
clearance
gauge
between
the
turntable
and
loading
base
as
shown
in
the
figure.
2.
Tighten
the
turntable
set-screw
by
using
a
1.27mm
allen
wrench.
Turntable
0.9mm clearance
0.9mm
Wot)
|
panee
How
to
check
the
main
P.C.B.
Procedure
14233445
~6§6-8-9
®
When
checking
the
foil
side
of
the
main
P.C.B.
and
replacing
the
parts,
do
as
shown
here.
