Onkyo DX-C201 - Troubleshooting

») eoriih
») Seat
TROUBLESHOOTING GUIDE

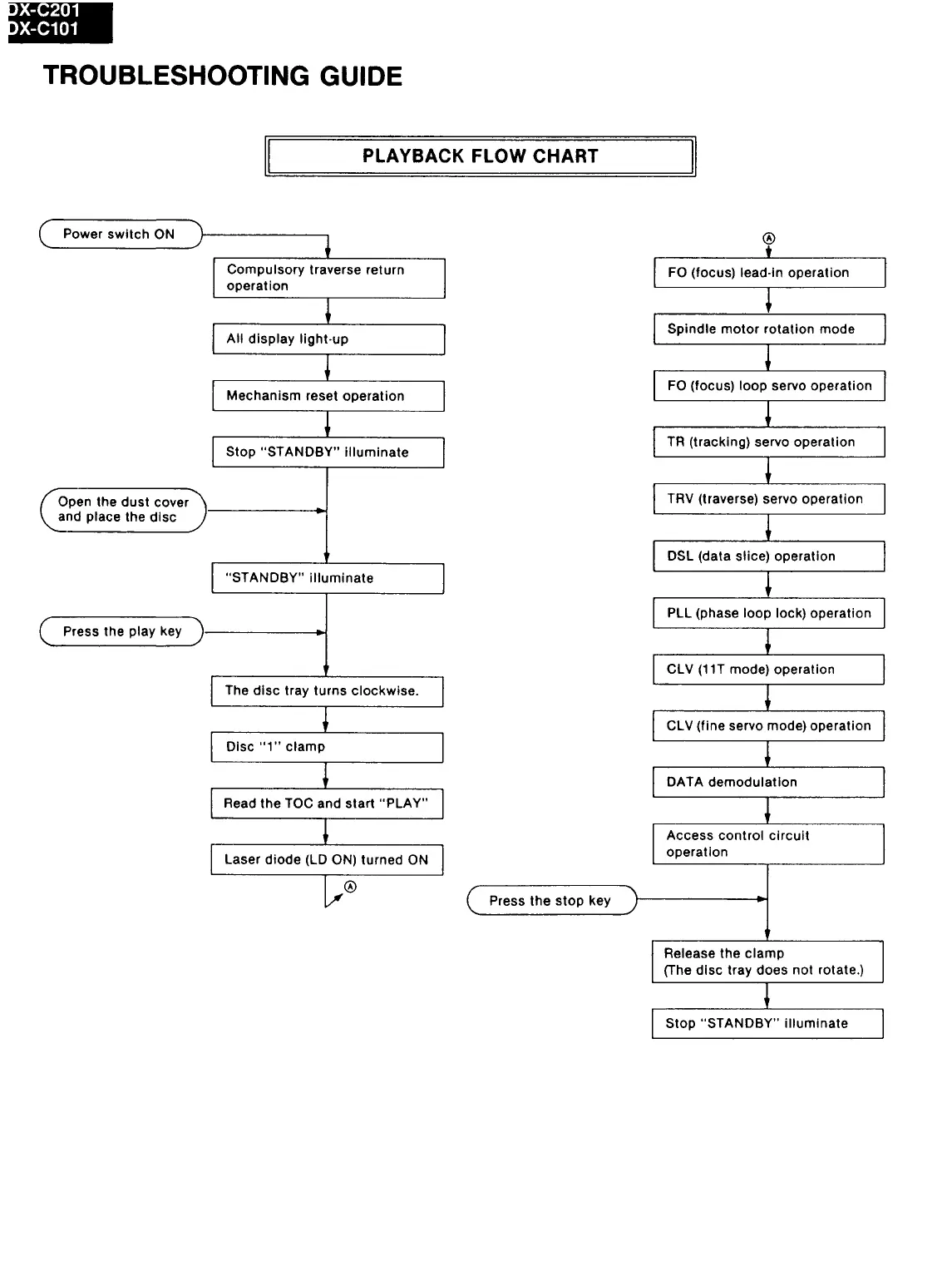

PLAYBACK FLOW CHART
Power switch ON ®
Compulsory traverse return
operation
FO (focus) lead-in operation
Spindie motor rotation mode
All display light-up
Access control circuit
operation
Mechanism reset operation
Stop “STANDBY” illuminate
Open the dust cover
and place the disc
“STANDBY” illuminate
Press the play key
The disc tray turns clockwise.
Disc ‘1 clamp
Read the TOC and start “PLAY”
Laser diode (LD ON) turned ON
Press the stop key
Release the clamp
(The disc tray does not rotate.)
Stop “STANDBY” illuminate
