DX-C201
1B) Conteh

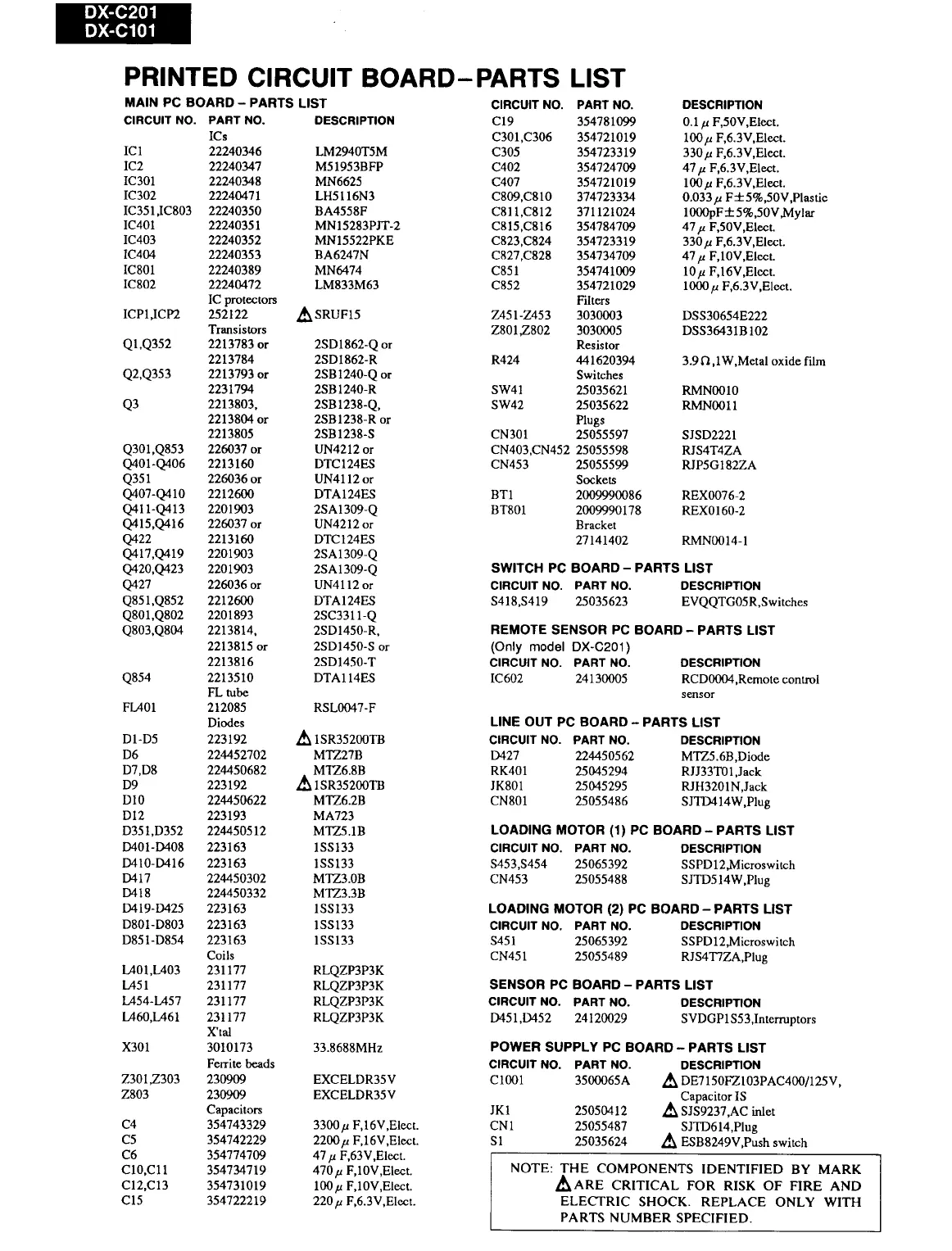

PRINTED CIRCUIT BOARD-—PARTS LIST
MAIN PC BOARD - PARTS LIST CIRCUIT NO. PART NO. DESCRIPTION
CIRCUIT NO. PART NO. DESCRIPTION cl9 354781099 0.1 « F,50V,Elect.
ICs C301,C306 354721019 100 p F,6.3V,Elect.
Ici 22240346 LM2940T5M C305 354723319 330 « F,6.3V,Elect.
Ic2 22240347 M51953BFP C402 354724709 47 » F,6.3V,Elect.
1C301 22240348 MN6625 C407 354721019 100 # F,6.3V,Elect.
1C302 22240471 LHS5116N3 C809,C810 374723334 0.033 »p F45%,50V Plastic
1C351,IC803 22240350 BA4558F C811,C812 371121024 1000pF £5%,50V,Mylar
C401 22240351 MNI15283PIT-2 C815,C816 354784709 47 wp FS50V, Elect.
1C403 22240352 MN15522PKE C823,C824 354723319 330 w F,6.3V, Elect.
1C404 22240353 BA6247N C827,C828 354734709 47 » F,10V, Elect.
1C801 22240389 MN6474 C851 354741009 10 1 F,16V,Elect.
1C802 22240472 LM833M63 C852 354721029 1000 » F,6.3V,Elect.
IC protectors Filters
ICP1,ICP2 252122 A\SRUF 15 Z451-Z453 3030003 DSS30654E222
Transistors Z801,Z802 3030005 DSS36431B 102
Q1,Q352 2213783 or 2SD1862-Q or Resistor
2213784 2SD1862-R R424 441620394 3.9.0,1W,Metal oxide film
Q2,Q353 2213793 or 2SB1240-Q or Switches
2231794 2S8B1240-R sw4l 25035621 RMNO010
Q3 2213803, 2SB1238-Q, Sw42 25035622 RMNOO11
2213804 or 25B1238-R or Plugs
2213805 2SB1238-S CN301 25055597 S$JSD2221
Q301,Q853 = 226037 or UN4212 or CN403,CN452 25055598 RIS4T4ZA
Q401-Q406 2213160 DTC124ES CN453 25055599 RIPSG182ZA
Q351 226036 or UN4112 or Sockets
Q407-Q410 2212600 DTA124ES BTl 2009990086 REX0076-2
Q411-Q413 2201903 2SA1309-Q BT801 2009990178 REX0160-2
Q415,Q416 226037 or UN4212 or Bracket
Q422 2213160 DTC124ES 27141402 RMNO0014-1
Q417,Q419 2201903 28A1309-Q
Q420,Q423 =. 2201903 2SA1309-Q SWITCH PC BOARD - PARTS LIST
Q427 226036 or UN4112 or CIRCUIT NO. PART NO. DESCRIPTION
Q851,Q852 2212600 DTA124ES S418,S419 25035623 EVQQTGOSR, Switches
Q801,Q802 2201893 28C3311-Q
Q803,Q804 2213814, 2SD1450-R, REMOTE SENSOR PC BOARD - PARTS LIST
2213815 or 28D1450-S or (Only model DX-C201)
2213816 2SD1450-T CIRCUIT NO. PART NO. DESCRIPTION
Q854 2213510 DTA114ES 1C602 24130005 RCD0004 Remote control
FL tube sensor
FLA01 212085 RSLO0047-F
Diodes LINE OUT PC BOARD - PARTS LIST
DI-D5 223192 A\1SR35200TB CIRCUIT NO. PART NO. DESCRIPTION
D6 224452702 MTZ27B D427 224450562 MTZ5.6B,Diode
D7,D8 224450682 MTZ6.8B RK401 25045294 RIJJ33TO1 Jack
D9 223192 A 1SR35200TB JK801 25045295 RJH3201N, Jack
D10 224450622 MTZ6.2B CN801 25055486 SITD414W,Plug
D12 223193 MA723
D351,D352 224450512 MTZ5.1B LOADING MOTOR (1) PC BOARD — PARTS LIST
D401-D408 223163 188133 CIRCUIT NO. PART NO. DESCRIPTION
D410-D416 = 223163 188133 8453,8454 25065392 SSPD12,Microswitch
D417 224450302 MTZ3.0B CN453 25055488 SITDS14W, Plug
D418 224450332 MTZ3.3B
D419-D425 = 223163 188133 LOADING MOTOR (2) PC BOARD —- PARTS LIST
D801-D803 223163 183133 CIRCUIT NO. PART NO. DESCRIPTION
D851-D854 223163 1SS133 S451 25065392 SSPD12,Microswitch
Coils CN451 25055489 RIS4T7ZA,Plug
L401,L403 231177 RLQZP3P3K
L451 231177 RLQZP3P3K SENSOR PC BOARD - PARTS LIST
LA54-L457 231177 RLQZP3P3K CIRCUIT NO. PART NO. DESCRIPTION
L460,L461 231177 RLQZP3P3K D451,D452 =: 24120029 SVDGP1553,Interruptors
Xtal
X301 3010173 33.8688MHz POWER SUPPLY PC BOARD - PARTS LIST
Ferrite beads CIRCUIT NO. PART NO. DESCRIPTION
Z301,Z303 230909 EXCELDR35V C1001 35000654 A DE7150FZ103PAC400/125V,
Z803 230909 EXCELDR35V Capacitor IS
Capacitors JKt 25050412 A $JS9237,AC inlet
c4 354743329 3300 » F,16V,Elect. CN1 25055487 SJTD614,Plug
C5
354742229
2200
p
F,16V,Elect.
S1
25035624
A
ESB8249V
Push
switch
C6 354774709 47 4 F,63V,Elect.
C10,Cl1 354734719 470 » F,10V, Elect. NOTE: THE COMPONENTS IDENTIFIED BY MARK
C12,C13 354731019 100 » F,10V, Elect. A ARE CRITICAL FOR RISK OF FIRE AND
C15 354722219 220 p F,6.3V, Elect. ELECTRIC SHOCK. REPLACE ONLY WITH
PARTS NUMBER SPECIFIED.
