Onkyo DX-C201 User Manual

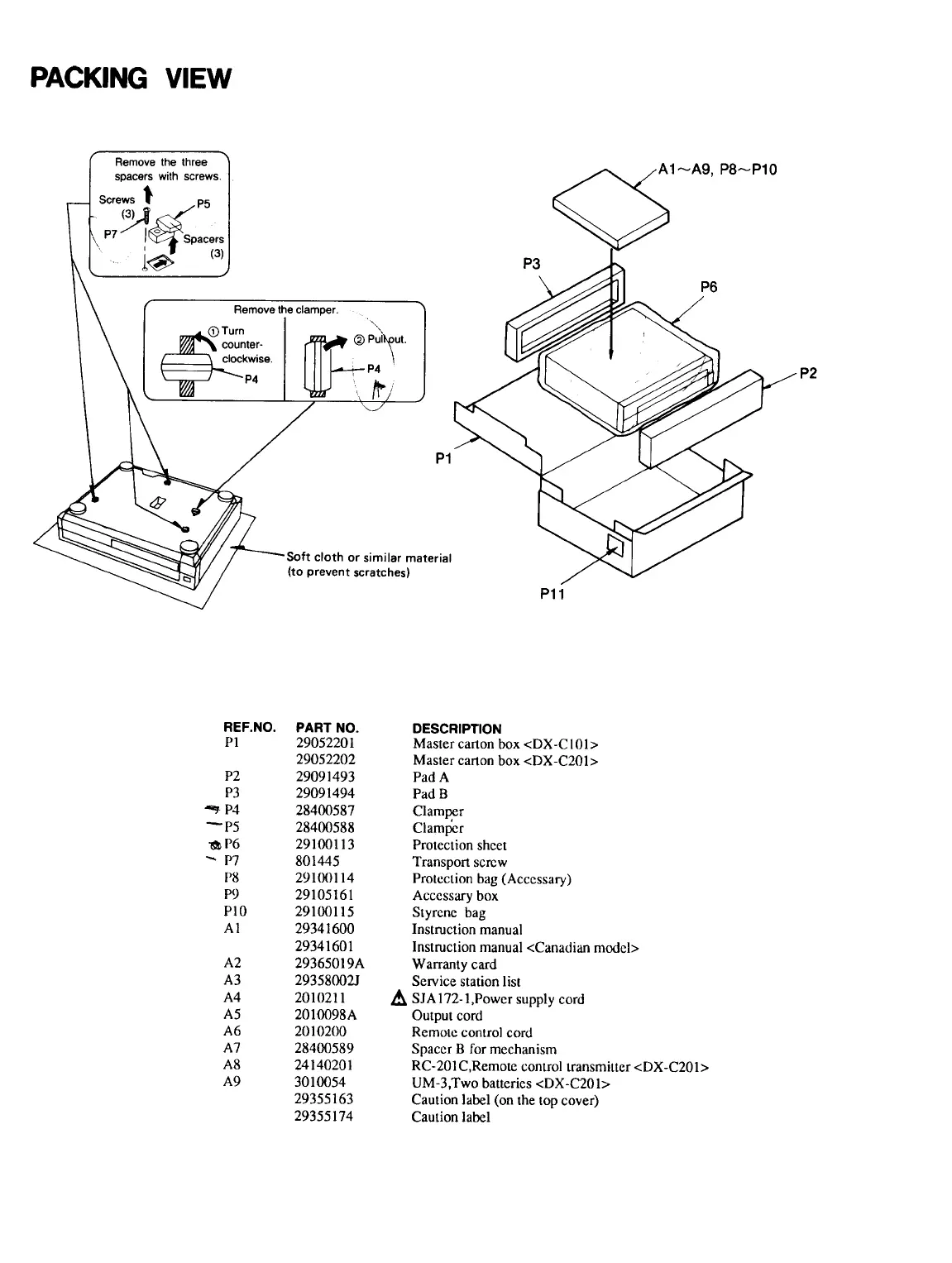

PACKING VIEW
Remove the three
spacers with screws. |,
Screws t P5
(3) <a
NS
. P?7 OAS Spacers
(3)
- es
@ Turn
counter-
clockwise.
P4
REF.NO.
Pl
P2
P3
= P4
—PS
BPs
™ P7
P8
P9
P10
Al
A2
A3
A4
AS
A7
A8&
A9
Remove the clamper.
Soft cloth or similar material
(to prevent scratches)
PART NO.
29052201
29052202
29091493
29091494
28400587
28400588
29100113
801445
29100114
29105161
29100115
29341600
29341601
29365019A
29358002]
2010211
2010098A
2010200
28400589
24140201
3010054
29355163
29355174
® Pup
A1~A9, P8~P10
Pt
DESCRIPTION
Master carton box <DX-C101>
Master carton box <DX-C201>
Pad A
Pad B
Clamper
Clamper
Protection shcet
Transport screw
Protection bag (Accessary)
Accessary box
Styrene bag
Instruction manual
Instruction manual <Canadian model>
Warranty card
Service station list
A SJA172-1,Power supply cord
Output cord
Remote control cord
Spacer B for mechanism
RC-201C,Remote control transmitter <DX-C201>
UM-3,Two batteries <DX-C201>
Caution label (on the top cover)
Caution label
