Onkyo DX-C909 Service Manual

—-G|-

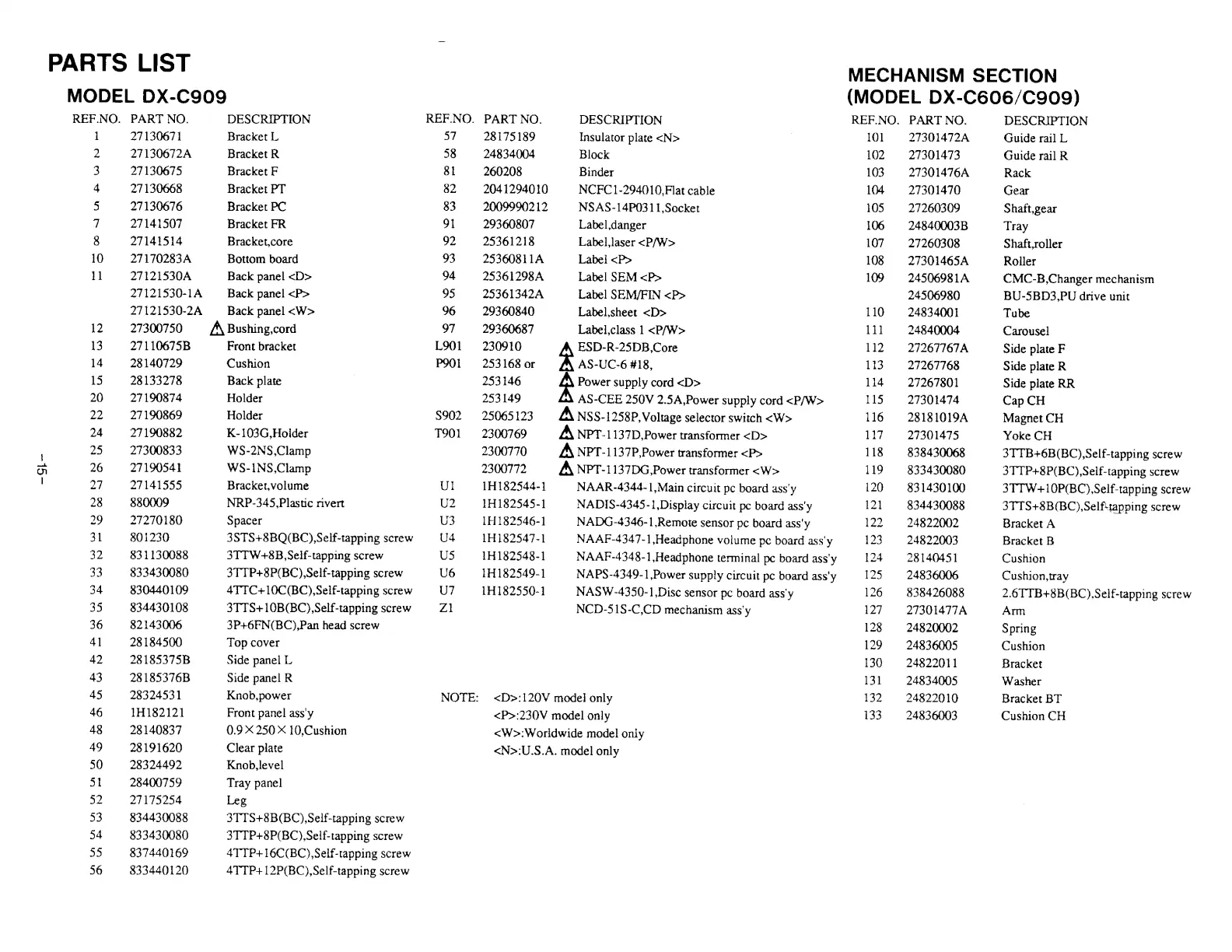

PARTS LIST
MODEL DX-C909
REF.NO. PART NO.
12
13
15
20
22
24
25
26
27
28
29
31
32
33
34
35
36
4]
42
43
45
46
48
49
50
51
52
53
54
55
56
27130671
27130672A
27130675
27130668
27130676
27141507
27141514
27170283A
27121530A
27121530-1A
27121530-2A
27300750
27110675B
28140729
28133278
27190874
27190869
27190882
27300833
27190541
27141555
880009
27270180
801230
831130088
833430080
830440109
834430108
82143006
28184500
28185375B
28185376B
28324531
1H182121
28140837
28191620
28324492
28400759
27175254
834430088
833430080
837440169
833440120
DESCRIPTION
Bracket L
Bracket R
Bracket F
Bracket PT
Bracket PC
Bracket FR
Bracket,core
Bottom board
Back panel <D>
Back panel <P>
Back panel <W>
A Bushing,cord
Front bracket
Cushion
Back plate
Holder
Holder
K-103G,Holder
WS-2NS,Clamp
WS-INS,Clamp
Bracket,volume
NRP-345,Plastic rivert
Spacer
3STS+8BQ(BC),Self-tapping screw
3TTW+8B,Self-tapping screw
3TTP+8P(BC),Self-tapping screw
4TTC+10C(BC),Self-tapping screw
3TTS+10B(BC),Seif-tapping screw
3P+6FN(BC),Pan head screw
Top cover
Side panel L
Side panel R
Knob,power
Front panel ass'y
0.9 X 250 X 10,Cushion
Clear plate
Knob, level
Tray panel
Leg
3TTS+8B(BC),Self-tapping screw
3TTP+8P(BC),Self-tapping screw
4TTP+16C(BC),Self-tapping screw
4TTP+ 12P(BC),Self-tapping screw
REF.NO.
57
58
81
82
83
91
92
93
94
95
96
97
L901
P9O1
$902
T901
Ul
U2
U3
U4
U5
U6
U7
Zi
NOTE:
PART NO.
28175189
24834004
260208
2041294010
20099902 12
29360807
25361218
2536081 1A
25361298A
25361342A
29360840
29360687
230910
253168 or
253146
253149
25065123
2300769
2300770
2300772
1H182544-1
1H182545-1
1H182546-1
1H182547-1
1H182548-1
1H182549-1
1H182550-1
DESCRIPTION
Insulator plate <N>
Block
Binder
NCFC1-294010,Flat cable
NSAS-14P0311,Socket
Label,danger
Label,laser <P/W>
Label <P>
Label SEM <P>
Label SEM/FIN <P>
Label,sheet <D>
Label,class 1 <P/W>
ESD-R-25DB,Core
a AS-UC-6 #18,
R Power supply cord <D>
AS-CEE 250V 2.5A,Power supply cord <P/W>
AN NSS-1258P, Voltage selector switch <W>
A NPT-1137D,Power transformer <D>
A\ NPT-1137P,Power transformer <P>
A NPT-1137DG,Power transformer <W>
NAAR-4344-1,Main circuit pc board ass'y
NADIS-4345-1,Display circuit pe board ass'y
NADG-4346-1,Remote sensor pc board ass'y
NAAF-4347-1],Headphone volume pc board ass'y
NAAF-4348-1,Headphone terminal pe board ass'y
NAPS-4349-1,Power supply circuit pc board ass'y
NASW-4350-1,Disc sensor pc board ass'y
NCD-51S-C,CD mechanism ass'y
<D>:120V model only
<P>:230V model only
<W>: Worldwide model only
<N>:U.S.A. model only
MECHANISM SECTION
(MODEL DX-C606/C909)
REF.NO.
101
102
103
104
105
106
107
108
109
110
lil
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
PART NO.
27301472A
27301473
27301476A
27301470
27260309
24840003B
27260308
27301465A
24506981A
24506980
24834001
24840004
27267767A
27267768
27267801
27301474
28181019A
27301475
838430068
833430080
831430100
834430088
24822002
24822003
28140451
24836006
838426088
27301477A
24820002
24836005
24822011
24834005
24822010
24836003
DESCRIPTION
Guide rail L
Guide rail R
Rack
Gear
Shaft,gear
Tray
Shaft,roller
Roller
CMC-B,Changer mechanism
BU-5BD3,PU drive unit
Tube
Carousel
Side plate F
Side plate R
Side plate RR
Cap CH
Magnet CH
Yoke CH
3TTB+6B(BC),Self-tapping screw
3TTP+8P(BC),Self-tapping screw
3TTW+10P(BC),Self-tapping screw
3TTS+8B(BC),Selftapping screw
Bracket A
Bracket B
Cushion
Cushion, tray
2.6TTB+8B(BC),Self-tapping screw
Arm
Spring
Cushion
Bracket
Washer
Bracket BT
Cushion CH
