1.Remove cight screws holding the side panels

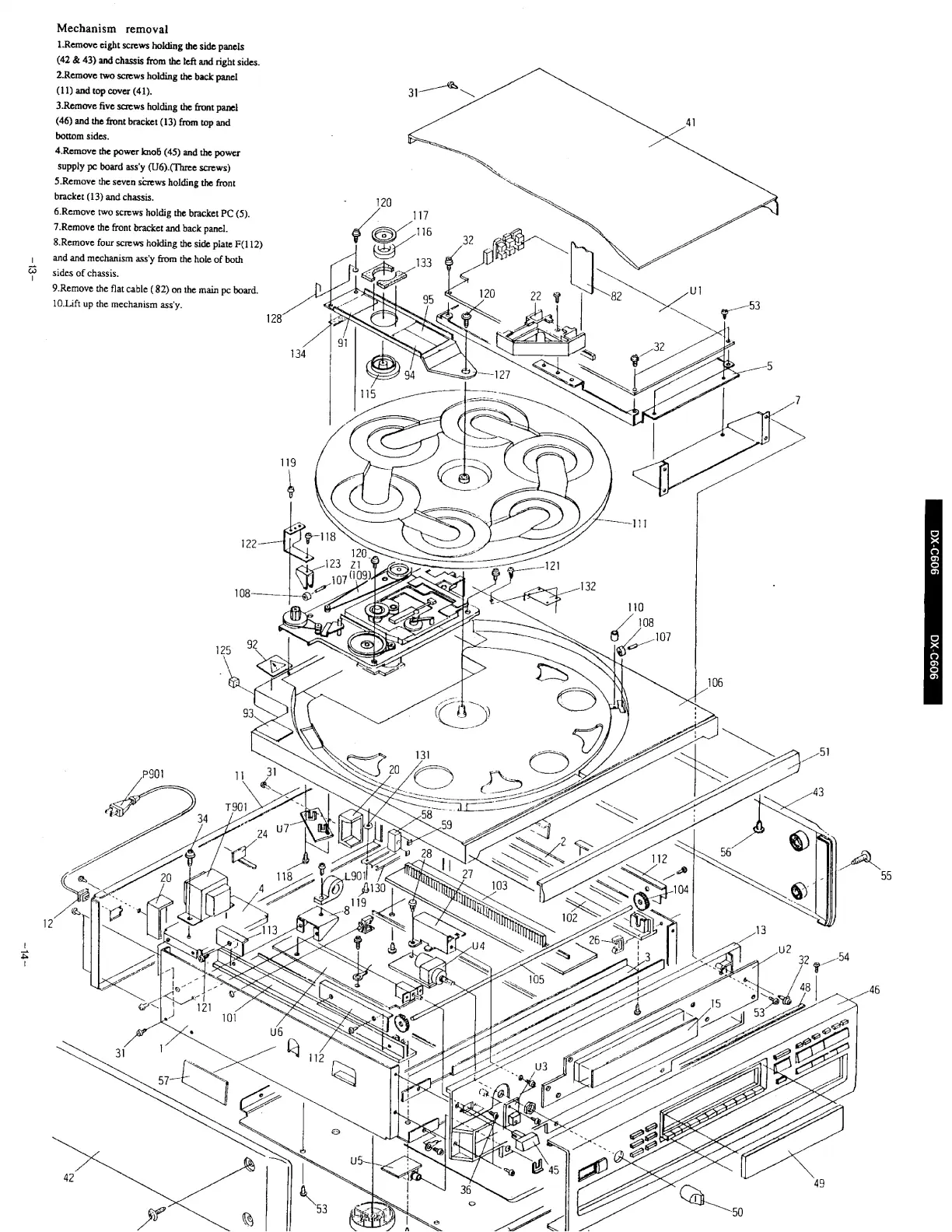

Mechanism removal
DX-C606
DX-C606
122
6.Remove two screws holdig the bracket PC (5).
7.Remove the front bracket and back panel.
8.Remove four screws holding the side plate F(112)
and and mechanism ass’y from the hole of both
9.Remove the flat cable (82) on the main pc board.
(42 & 43) and chassis from the left and right sides.
2.Remove two screws holding the back panel
(11) and top cover (41).
3.Remove five screws holding the front panel
(46) and the front bracket (13) from top and
bottom sides.
4.Remove the power knob (45) and the power
supply pe board ass'y (U6).(Three screws)
5.Remove the seven screws holding the front
bracket (13) and chassis.
10.Lift up the mechanism ass’y.
sides of chassis.
|
?
~14-
