Onkyo ES-600PRO

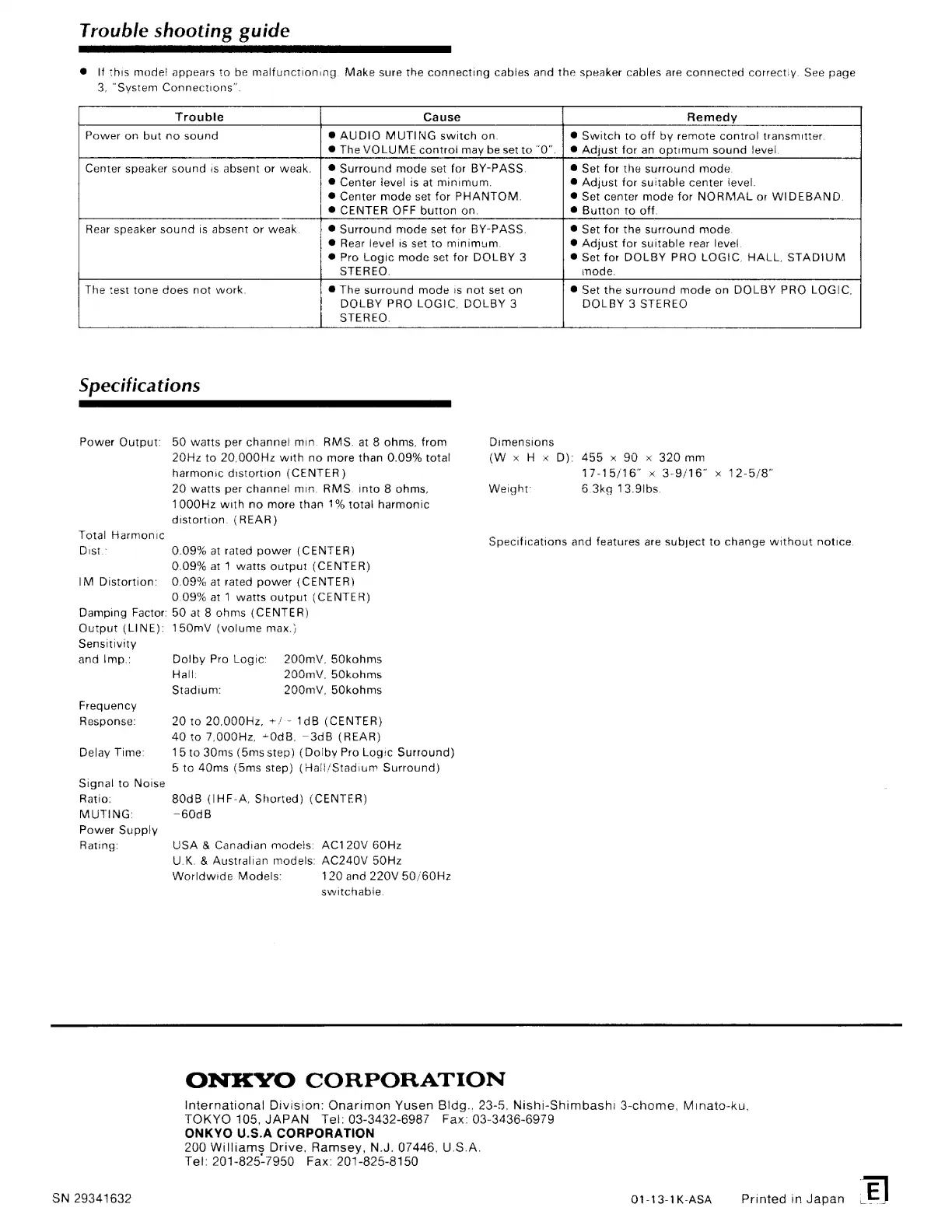

Trouble shooting guide
ee
@ If this model appears to be malfunctioning. Make sure the connecting cables and the speaker cables are connected correctly. See page
3, “System Connections”.
Power on but no sound
Center speaker sound is absent or weak.
Rear speaker sound is absent or weak.
The test tone does not work.
® AUDIO MUTING switch on. ® Switch to off by remote control transmitter.
@ The VOLUME control may be set to “O". | @ Adjust for an optimum sound level.
@ Surround mode set for BY-PASS. @ Set for the surround mode.
@ Center jevel is at minimum. @ Adjust for suitable center level.
@ Center mode set for PHANTOM. @ Set center mode for NORMAL or WIDEBAND.
@® CENTER OFF button on.
@ Surround mode set for BY-PASS. ® Set for the surround mode.
® Button to oft.
@ Rear level is set to Minimum. ® Adjust for suitable rear level.
® Pro Logic mode set for DOLBY 3 @ Set for DOLBY PRO LOGIC, HALL, STADIUM
STEREO.
mode.
@ The surround mode is not set on @ Set the surround mode on DOLBY PRO LOGIC,
DOLBY PRO LOGIC, DOLBY 3 DOLBY 3 STEREO
STEREO.
Specifications
ee
Power Output:
Total Harmonic
Dist.:
IM Distortion:
Damping Factor:
Output (LINE):
Sensitivity
and |mp.:
Frequency
Response:
Delay Time:
Signal to Noise
Ratio:
MUTING:
Power Supply
Rating:
SN 29341632
50 watts per channel! min. RMS. at 8 ohms, from
20Hz to 20,000Hz with no more than 0.09% total
harmonic distortion (CENTER )
20 watts per channel min. RMS. into 8 ohms,
1000Hz with no more than 1% total harmonic
distortion. (REAR)
0.09% at rated power (CENTER)
0.09% at 1 watts output (CENTER)
0.09% at rated power (CENTER)
0.09% at 1 watts output (CENTER)
50 at 8 ohms (CENTER)
150mV (volume max.)
Dolby Pro Logic: 200mV, 50kohms
Hall: 200mV, 50kohms
Stadium: 200mV, 50kohms
20 to 20,000Hz, +/~- 1dB (CENTER)
40 to 7,000Hz, +OdB, -—3dB (REAR)
15 to 30ms (5ms step) (Dolby Pro Logic Surround)
5 to 40ms (5ms step) (Hall/Stadium Surround)
80dB (IHF-A, Shorted) (CENTER)
-60dB
USA & Canadian models: AC120V 60Hz
U.K. & Australian models: AC240V 50Hz
Worldwide Models: 120 and 220V 50/60Hz
switchabie.
Dimensions
(Wx H x D): 455 x 90 x 320 mm
17-15/16" x 3-9/16" «x 12-5/8"
Weight: 6. 3kg 13.9lbs.
Specifications and features are subject to change without notice.
ONKYO CORPORATION
International Division: Onarimon Yusen Bidg., 23-5, Nishi-Shimbashi 3-chome, Minato-ku,
TOKYO 105, JAPAN Tel: 03-3432-6987 Fax: 03-3436-6979
ONKYO U.S.A CORPORATION
200 Williams Drive, Ramsey, N.J. 07446, U.S.A.
Tel: 201-825-7950 Fax: 201-825-8150
O1-13-1K-ASA Printed in Japan E]
