8
En

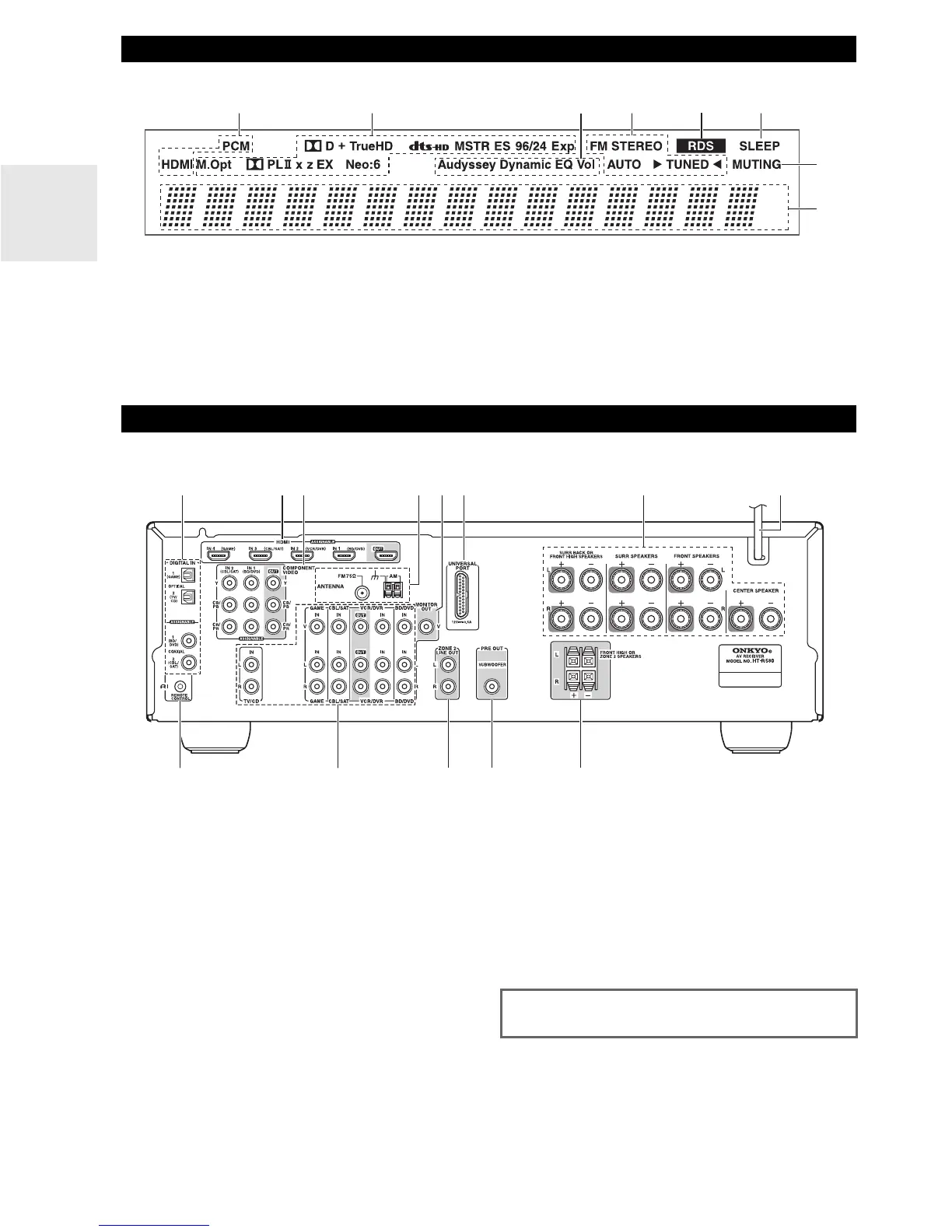

For detailed information, see the pages in parentheses.
a Audio input indicators
b Listening mode and format indicators (➔ 22, 28)
c Audyssey indicators (➔ 37)
d Tuning indicators (➔ 24)
e RDS indicator (excluding North American models)
(➔ 25)
f SLEEP indicator (➔ 23)
g MUTING indicator (➔ 23)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b HDMI IN and OUT jacks
c COMPONENT VIDEO IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g SPEAKERS terminals
(CENTER, FRONT, SURR, SURR BACK OR
FRONT HIGH)
h Power cord
i u REMOTE CONTROL jack
j Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
k ZONE 2 LINE OUT jacks
l SUBWOOFER PRE OUT jack
m FRONT HIGH OR ZONE 2 SPEAKERS terminals
Display
ab ef
h
g
cd
Rear Panel
acb
d
h
ef
g
i
jkl
m
See “Connecting the AV Receiver” for connection infor-
mation (➔ 12 to 20).
To Next Page
