11
Before Using
Connections Other Information
Operations
Connecting to the other components
Before connecting
Do not connect the unit's AC power cord to a wall outlet until you have completed all the other
connections.
On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a
white connector (marked L) to the left channel. Connect white plugs of audio connection cables
to L connectors and connect red pugs of audio connection cables to R connectors.

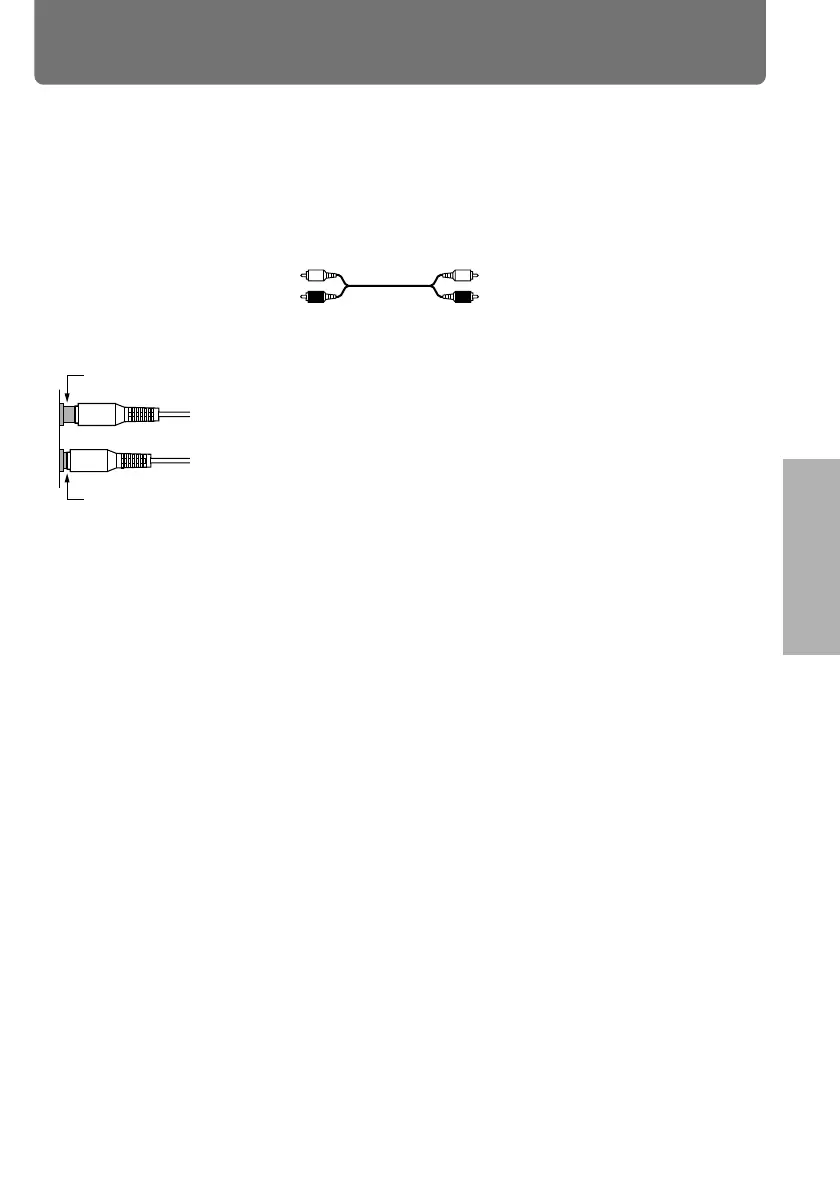

Audio conection cable
To L connectors (White)
To R connectors (Red)
(White) To L connectors
(Red) To R connectors
Improper connection
Insert completely
Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
Bundling an audio connection cable with the power cord or speaker cord may degrade the sound
quality.
To use the unit with the other Onkyo Separate Collection series components, follow the
connection diagram in the A-905X instruction manual to connect the unit to the system.
Note:
The 230 V model is show in the following illustrations.
