Connecting the Amplifier—Continued
Connecting the Speaker Cables

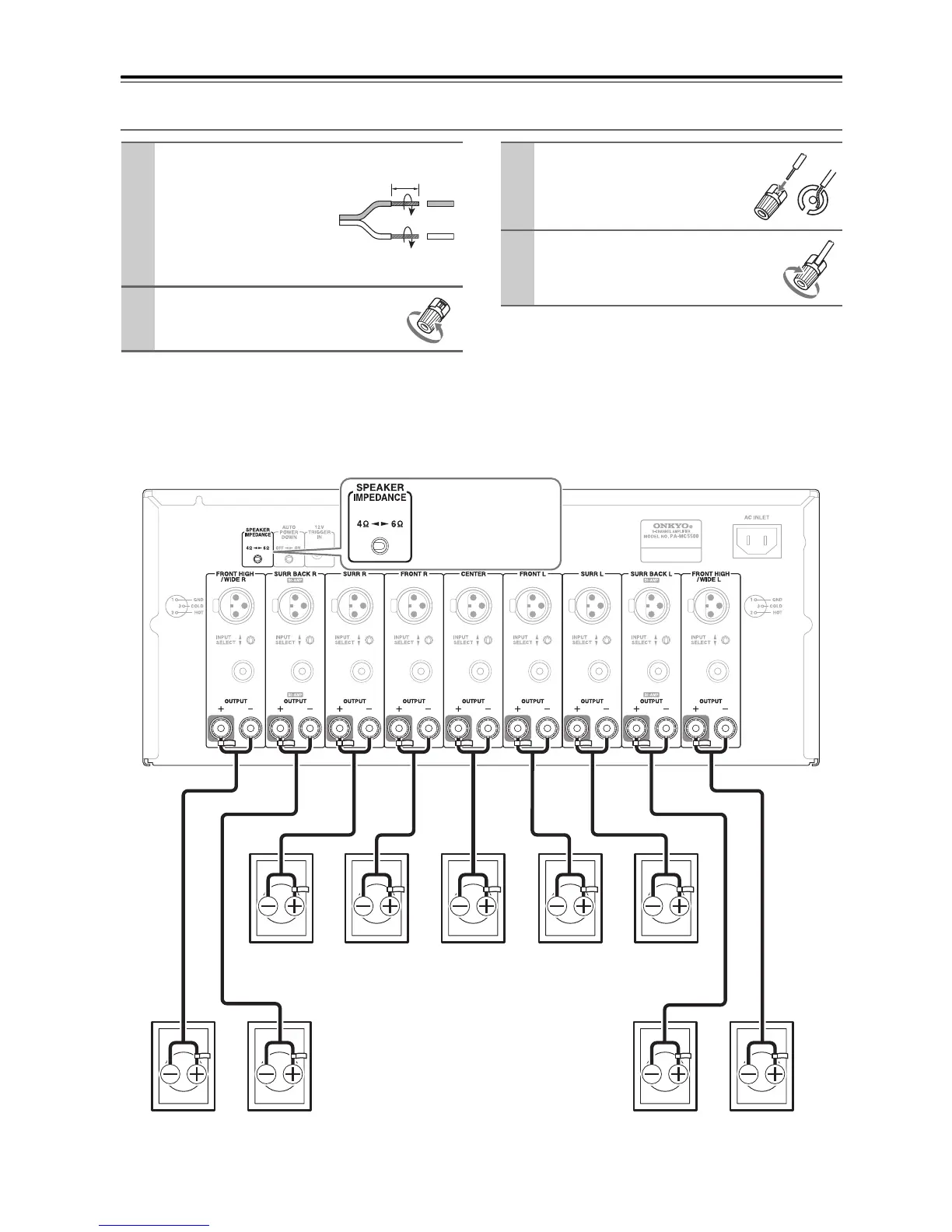

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURR BACK L terminal.
Note:
If you use front high or front wide speakers, you must turn on the AV controller and select the speakers to be used.
For more details, see the instruction manual of the connected component.
1
Strip about 1/2" to 5/8"
(12 to 15 mm) of insu-
lation from the ends of
the speaker cables,
and twist the bare
wires tightly, as
shown.
2
Unscrew the terminal.
1/2" to 5/8"
(12 to 15 mm)
3
Fully insert the bare wires.
4
Screw the terminal tight.
Surround
back right
speaker
Surround
right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
back left
speaker
Front high/wide
left speaker
Front high/wide
right speaker
Select 4Ω or 6Ω.
