SKS-HT540

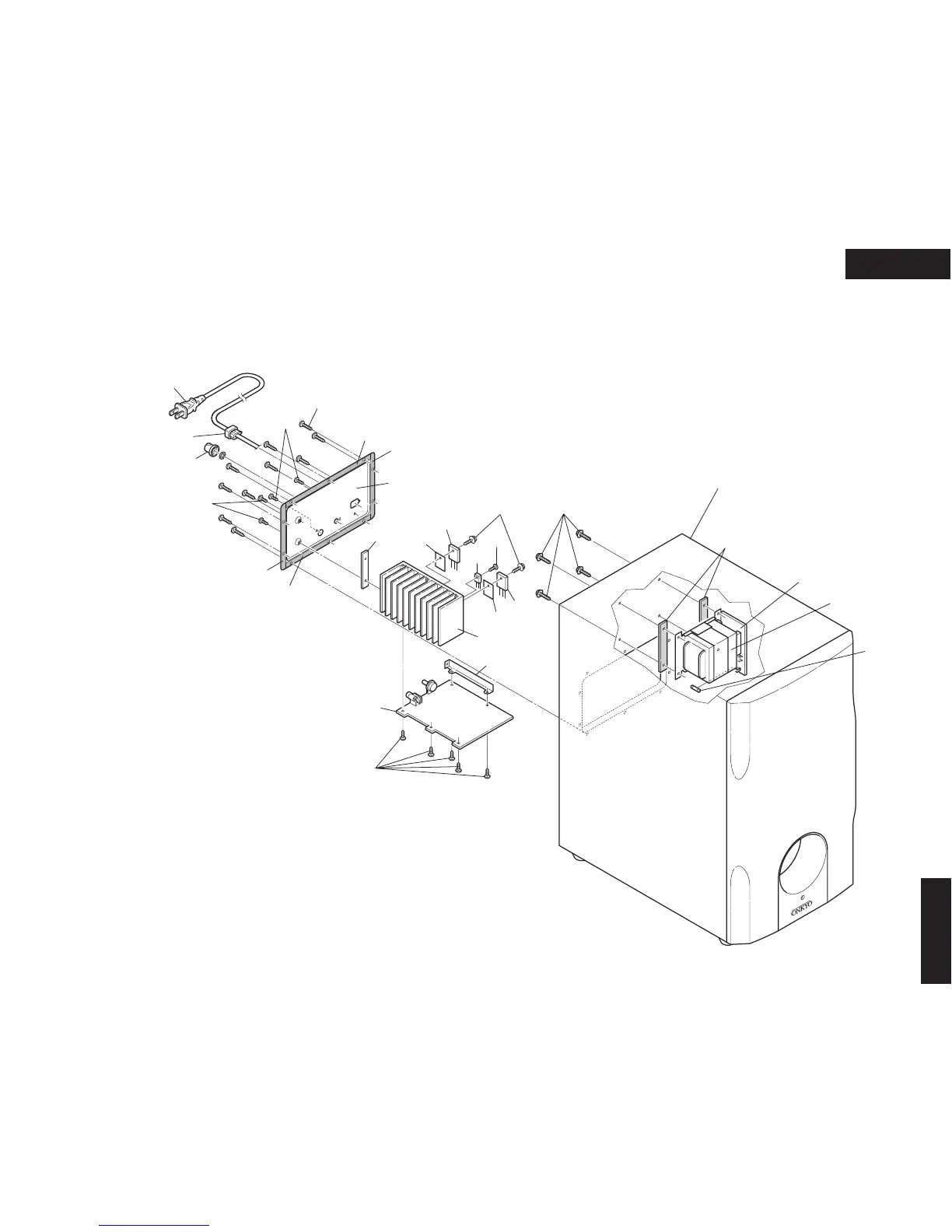

EXPLODED VIEWS-1
SKW-540 : POWERED SUBWOOFER
SKS-HT540
SP12
x 4 pcs.
A08
x 2 pcs.
SP11
x 10 pcs.
A05
x 2 pcs.
A05
x 2 pcs.
A05
x 5 pcs.
A103
A102
P901
SP13
x 2 pcs.
U03
A11
A01
U01
A07
A07
A101
A03
A03
A02
A02
U06
A05
Q515
Q516
Q541
F901
T901
Refer to "EXPLODED VIEWS-2"
