Onkyo TX-84 - SPECIFICATIONS; AMPLIFIER SECTION; TUNER SECTION; GENERAL

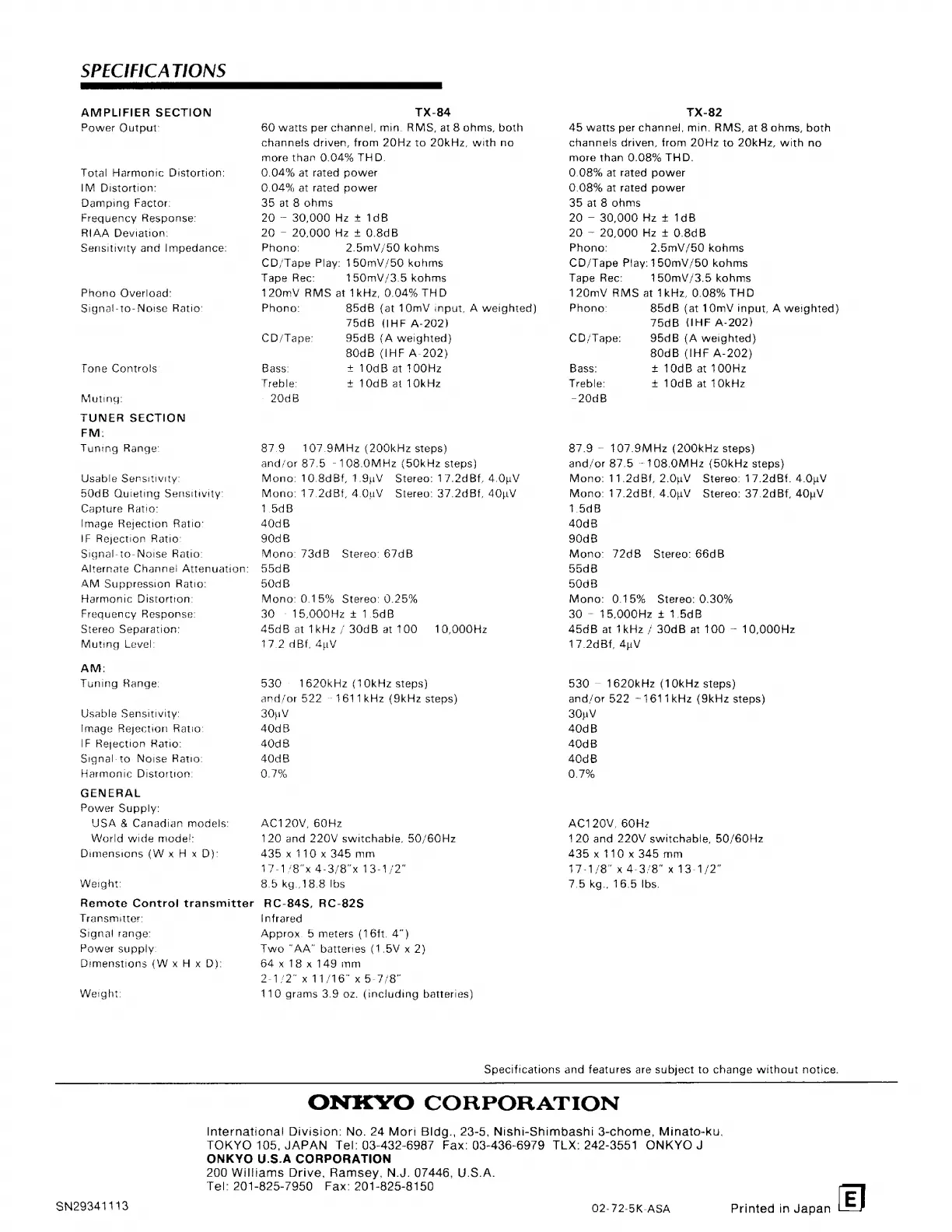

SPECIFICATIONS
AMPLIFIER SECTION
Power Output:
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Frequency Response:
RIAA Deviation:
Sensitivity and Impedance:
Phono Overload:
Signa!-to- Noise Ratio:
Tone Controls:
Muting:
TUNER SECTION
FM:
Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
IF Rejection Ratia:
Signal-to-Noise Ratio:
Alternate Channel Attenuation:
AM Suppression Ratio:
Harmonic Distortron:
Frequency Response:
Stereo Separation:
Muting Level:
AM:
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to Noise Ratio:
Harmonic Distortion:
GENERAL
Power Supply:
USA & Canadian models:
World wide mode!:
Dimensions (Wx H x D):
Weight:
Remote Controi transmitter
Transmitter:
Signal range:
Fower supply:
Dimenstions (Wx H x D):
TX-84
60 watts per channel, min. RMS, at 8 ohms, both
channels driven, from 20Hz to 20kHz, with no
more than 0.04% THD.
0.04% at rated power
0.04% at rated power
35 at 8 ohms
20 - 30,000 Hz + 1dB
20 - 20,000 Hz + 0.8dB
Phono: 2.5mV/50 kohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/3.5 kohms
120mV RMS at 1kHz, 0.04% THD
Phono: 85d8 (at 10mV input, A weighted)
75dB (IHF A-202)
CD/Tape: 95d8 (A weighted)
80dB (IHF A-202)
Bass: + 10dB at TO00Hz
Treble: + 10dB at 10kHz
- 20dB
87.9 107.9MHz (200kKHz steps)
and/or 87.5 -108.0OMHz (50kHz steps)
Mono: 10.8dBf, 1.9nV Stereo: 17.2dBf, 4.0nV
Mono: 17.2dBf, 4.0uV Stereo: 37.2dBf, 40uV
1.5dB
40dB
90dB
Mono: 73dB_ Stereo: 67dB
55dB
50dB
Mono: 0.15% Sterea: 0.25%
30 - 15,000Hz + 1.5dB
45dB at 1kH2 / 30dB at 100
17.2 dBt, 4uvVv
10,000Hz
530 1620kHz (10kHz steps)
and/or 522 ~-1611kHz (9kHz steps)
30uV
40dB
40dB
40dB
0.7%
AC120V, 60Hz
120 and 220V switchable, 50/60Hz
435 x 110 x 345 mm
17-1/8°x 4-3/8"x 13-1/2°
8.5 kg..18.8 Ibs
RC-845, RC-82S8
Infrared
Approx. 5 meters (16ft. 4”)
Two “AA” batteries (1.5V x 2)
64x 18x 149 mm
2-1/2" x 11/16" x 5-7/8"
TX-82
45 watts per channel, min. RMS, at 8 ohms, both
channels driven, from 20Hz to 20kHz, with no
more than 0.08% THD.
0.08% at rated power
0.08% at rated power
35 at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz + 0.8dB
Phono: 2.5mV/50 kohms
CO/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/3.5 kohms
120mV RMS at 1kHz, 0.08% THD
Phono: 85dB (at 10mV input, A weighted)
75dB (IHF A-202)
CD/Tape: 95dB (A weighted)
80dB (IHF A-202)
Bass: + 10dB at 100Hz
Treble: + 10dB at 10kHz
-20dB
87.9 - 107.9MHz (200kHz steps)
and/or 87.5 ~108.0MHz (5O0OkHz steps)
Mono: 11.2dBf, 2.0nV Stereo: 17.2d8f. 4.0uV
Mono: 17.2dBf, 4.0uV Stereo: 37.2dBf, 40uV
1.5dB
40d8
90dB
Mono: 72dB Stereo: 66dB
55d8
50dB
Mono: 0.15% Stereo: 0.30%
30 - 15,000Hz + 1.5dB
45dB at 1kHz / 30dB at 100 — 10,000Hz
17.2dBf, 4uV
530 — 1620kHz (10kKHz steps)
and/or 522 -1611kHz (9kHz steps)
30uV
40dB
4Q0dB
40d8
0.7%
AC120V, 60Hz
120 and 220V switchable, 50/60Hz
435x110 x 345 mm
17-1/8" x 4-3/8" x 13-1/2”
7.5 kg., 16.5 Ibs.
Weight: 110 grams 3.9 oz. (including batteries)
Specifications and features are subject to change without notice.
