• If you have terminated the Initial Setup halfway, turn this unit to standby mode.
Then turning the power on again can display the Initial Setup again.
The Initial Setup appears on the screen each time the power is turned on
unless the Initial Set up is completed or “Never Show Again” is selected on the
rst screen.
• To perform the Initial Setup again after the setting is completed, press ,
select “7. Miscellaneous” - “Initial Setup”, and press ENTER.
1. Speaker Setup
Select the connected speaker conguration.
Note that the image on the screen changes each time you select the number of
channels in "Speaker Channels".
Speaker Setup
Speaker Channels
Subwoofer
Height Speaker
Zone Speaker
Bi-Amp
Select how many speakers you have.
Next
7.1 ch
< >
Yes
---
No
No
2. AccuEQ Room Calibration
Place the supplied speaker setup microphone at the listening position. The unit
automatically measures the test tones output from each speaker, and sets the
optimum volume level for each speaker, the crossover frequencies, and the
distance from the listening position. This also automatically adjusts the equalizers
for the speakers, and enables correction of sound distortion caused by the
acoustic environment of the room.
• It takes between 3 and 12 minutes for calibration to be completed. Each
speaker outputs the test tone at high volume during measurement, so be
careful of your surroundings. Also, keep the room as quiet as possible during
measurement.
• If you connect a subwoofer, check the power and volume of the subwoofer.
Set the subwoofer volume to more than half.
• If the power of this unit suddenly turns o, the wires in the speaker cables
have touched the rear panel or other wires, and the protection circuit is
working. Twist the wires again securely, and make sure they do not stick out of
the speaker terminals when connecting.
• When using THX certied speakers, THX recommends that the crossover
frequency is set to “80Hz(THX)”. Also, THX recommends that each speaker
setting is manually adjusted according to the specic characteristics of each
room.

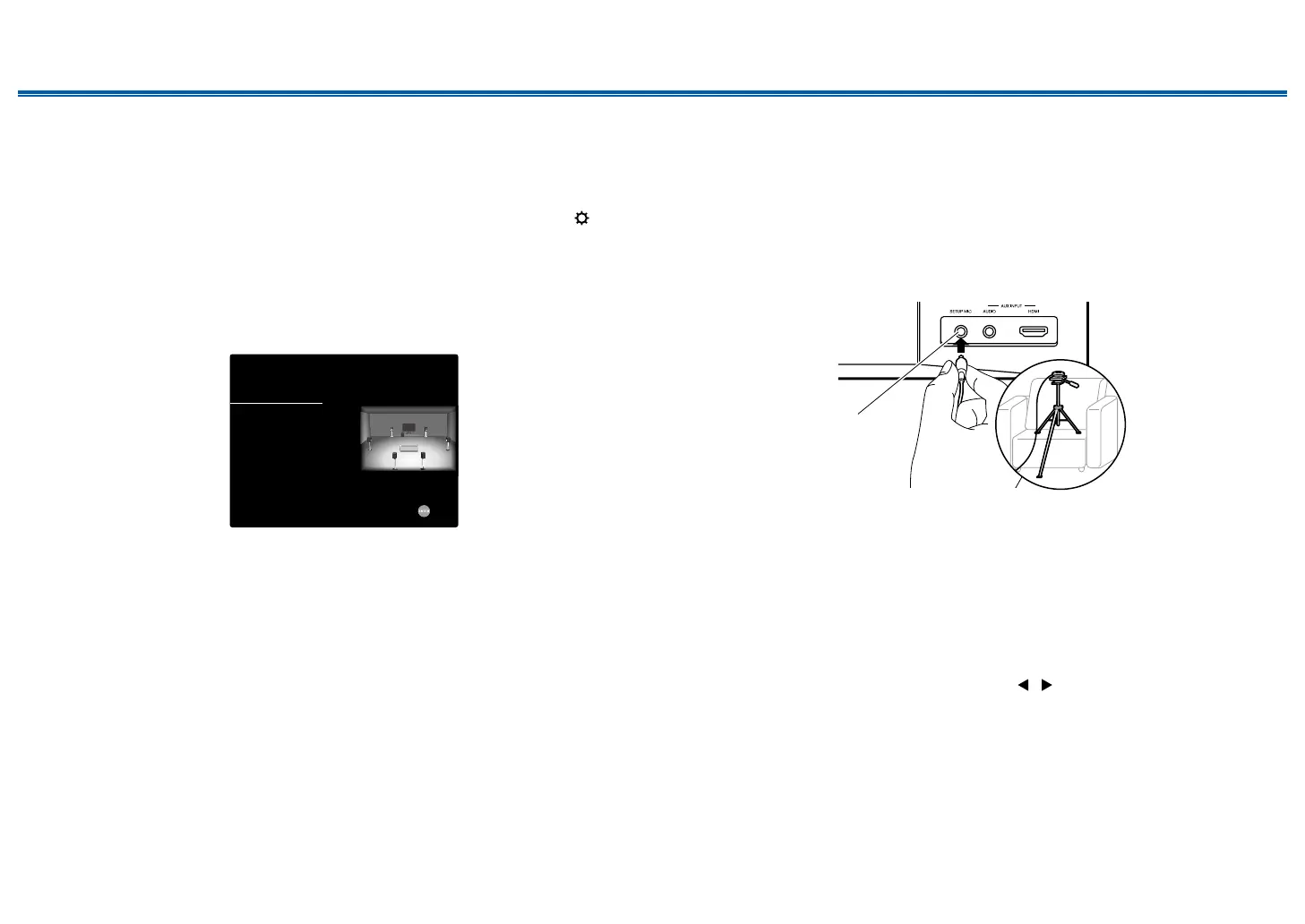

1. Place the supplied speaker setup microphone at the listening position, and
connect it to the SETUP MIC jack on the main unit.
C
When placing the speaker setup microphone on a tripod, refer to the
illustration.
2. Select “Next”, and press ENTER. Then, test tones are output from each
speaker, and the connected speakers and the noise in the surrounding
environment are automatically measured.
3. The measurement results in step 2 are displayed. Select "Next", and press
ENTER. The test tones are output again. Then, the unit automatically sets the
optimum volume level, crossover frequency, etc.
4. When the measurement is completed, the measurement results are displayed.
You can check each setting using the cursors / . Select "Save" and press
ENTER to save the settings.
5. Disconnect the speaker setup microphone.
3. Multi Zone Sound Check
Output test tones to ZONE 2 to enjoy audio in a separate room (ZONE 2) in
addition to the main room.
