For wood stud installation, follow STEP 2A
For concrete wall installation, follow STEP 2B
Wood Drill Bit
5/32" (4.0mm)
2.36" (60mm)
Center line
Pre-drill marked 4 holes by
5/32"
Wood Drill Bit to a depth of 2.36".
CAUTION:
The wood stud minimum size is 2x4", and surface covering can't be
more than 5/8". Drill hole on the wood stud
center line
.
NEVER USE ANCHOR FOR WOOD STUD ASSEMBLY
16"/24"
5

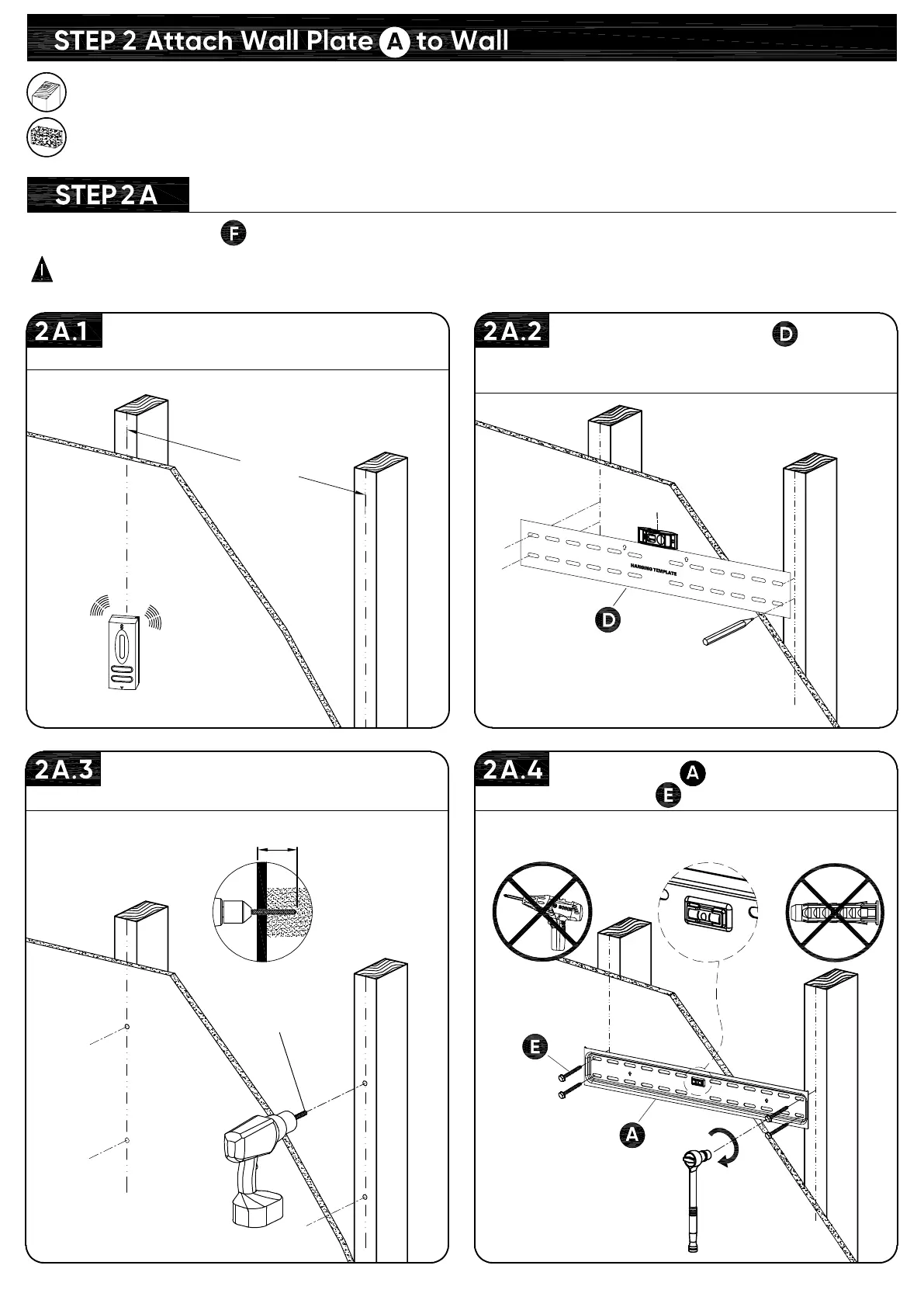

Wood Stud Installation
Level
Hold Hanging template at desired
position, use a pencil to mark 4 hole
locations.
Fix Wall plate
to the wall with
M7x55mm Lag bolts
.
Stud
Finder
Confirm wood stud location with stud
finder.
Socket Set
1/2" (13 mm)
To Next Page
