FRONT SUSPENSION 3A- 15
SHOCK ABSORBER REMOVAL AND
INSTALLATION
Removal Opel
1900.
Manta
1. Raise car and support with stands.
2. Remove upper attaching nuts from shock ab-
sorber.
3. Remove lower attaching nut, lockwasher, and
bolt.
4. Compress shock absorber and remove from car.
Removal GT
1. Remove air cleaner. See Figure 3A-24.

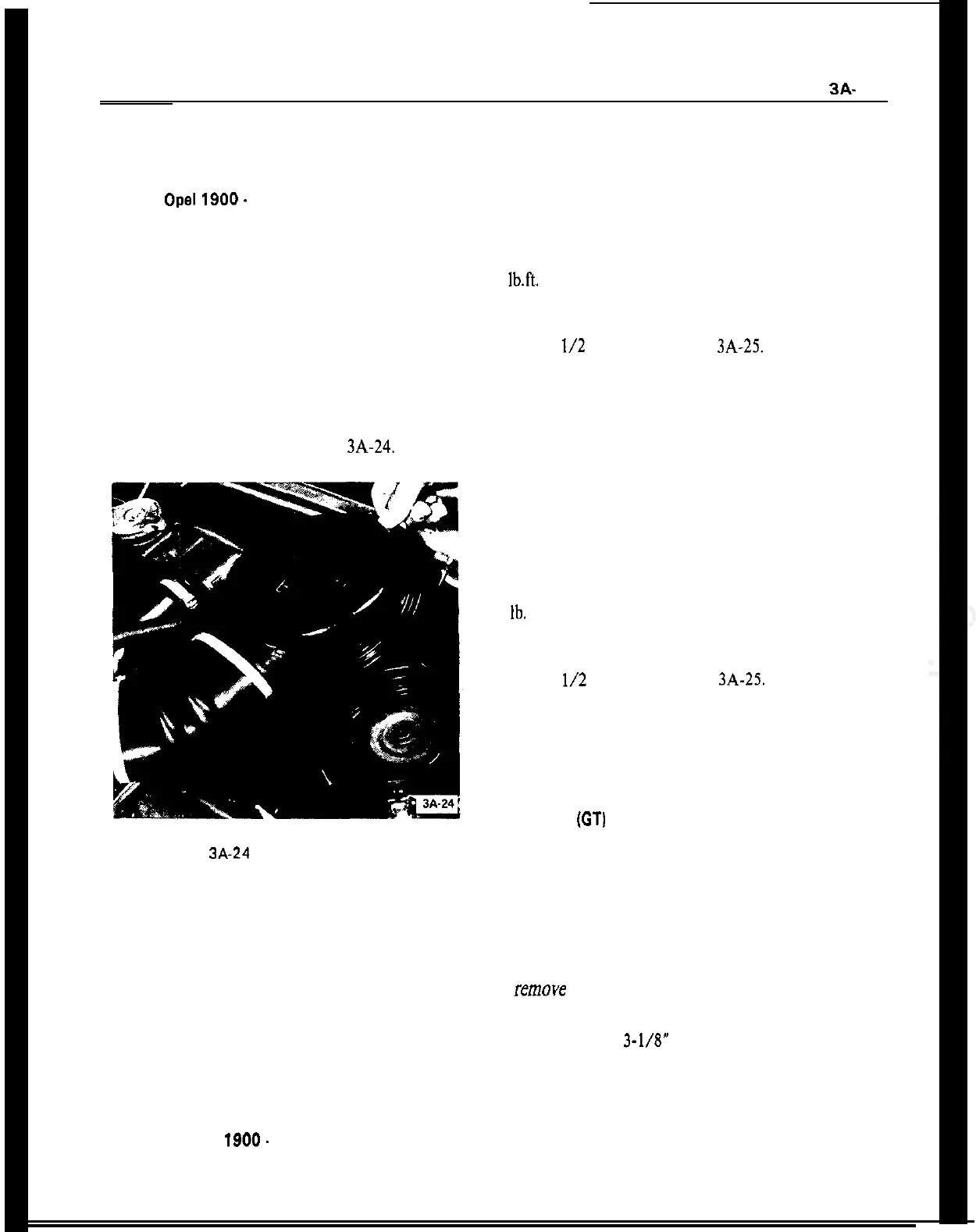

Figure 3A-24 Removal of Air Cleaner
2. Remove plastic cover over shock absorber upper
attachment.
3. Raise car and support with stands.
4. Remove upper attaching nuts from shock ab-
sorber.
5. Remove lower attaching nut, lockwasher, and
bolt.
6. Compress shock absorber and remove from car.
Installation Opel
1900.
Manta
1. Inspect shock absorber for damage and seal leaks.
Always replace the upper and lower rubber grom-
mets when replacing a shock absorber.
2. Install the lower grommet retainer and grommets
on shock absorber. Compress shock absorber and
place in position.
3. Install lower attaching bolt and nut. Torque to 30
lb.ft.
4. Install nuts on upper attaching studs. Tighten nuts
until distance from top of nut to stud is approxi-
mately
l/2
inch. See Figure
3A-25.
5. Install plastic cover.
Installation GT
1. Inspect shock absorber for damage and seal leaks.
Always replace the upper and lower rubber grom-
mets when replacing a shock absorber.
2. Install the lower grommet retainer and grommets
on shock absorber. Compress shock absorber and
place in position.
3. Install lower attaching bolt and nut. Torque to 30
lb.
ft.
4. Install nuts on upper attaching studs. Tighten nuts
until distance from top of nut to stud is approxi-
mately
l/2
inch. See Figure
3A-25.
5. Install plastic cover.
6. Install air cleaner.
FRONT SPRING REMOVAL AND INSTALLATION
Removal (GT)
1. Raise car and support at rear of front frame rails
with stands.
2. Remove front wheels.
3. Remove cotter pin from castle nut on lower ball
joint studs and back off castle nut two (2) turns. Hit
ball stud a sharp blow to break it loose. Do not
remove nut.
4. Install J-21689 spring compressor and compress
the spring until 3-l/8” clearance is obtained between
spring and compressor.
5. Disconnect both shock absorbers at their lower
attachment. Compress both shock absorbers.
6. Support the rail of J-21689 Spring Compressor
with a jack. Remove lower control arm to cross
member attaching nuts and bolts.
