OPEL 1900 AND MANTA STEERING COLUMN ASSEMBLY
3E- 37

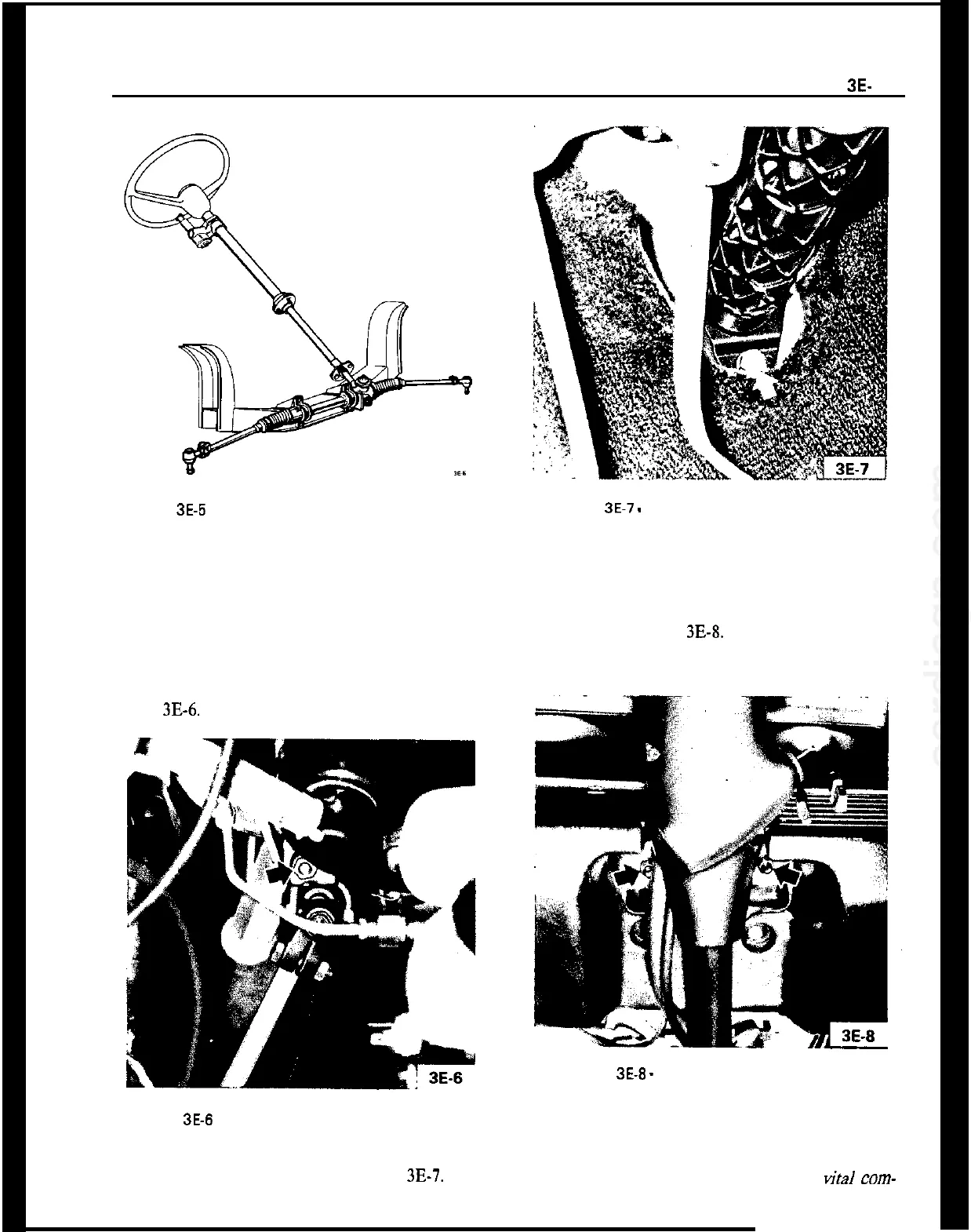

Figure 3E-5 Steering Column Assembly With Gear
replacement of steering column or steering ignition
lock parts.
Removal (Opel 1900 . Manta)
1. Disconnect battery.
2. From underside of car, remove clamp screw of
upper steering mast out of universal joint flange. See
Figure 3E-6.
Figure 3E-6 Upper Steering Mast Clamp Screw
3. Remove hex nut from steering mast jacket attach-
ment at front of dash panel. See Figure 3E-7.
Figure 3E-7 - Steering Mast Jacket Attachment
4. Pull off signal switch, as well as steering and igni-
tion lock wire sets.
5. Unscrew slide-off base from underside of instru-
ment panel and remove steering column assembly
from car. See Figure 3E-8. Carefully put down as-
sembly. Avoid impacts and blows to steering column
assembly.
Figure 3E-8 - Slide-Off Base Attaching Nuts
Installation (Opel 1900. Manta)
CAUTION:
Fasteners are important attaching parts in
that they could affect the performance of vital com-
